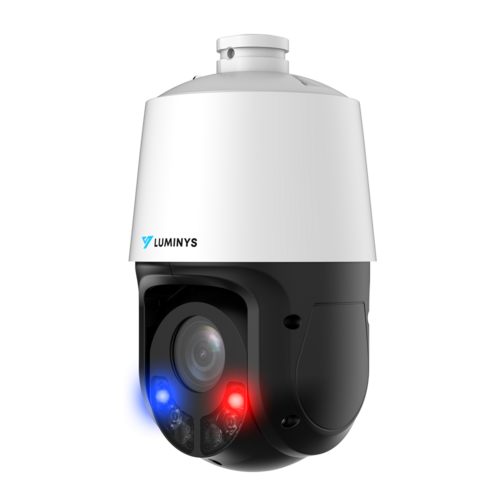

Luminys - P54-4DB25 - 4MP Network 25x LumiDeterrent PTZ
Product Overview

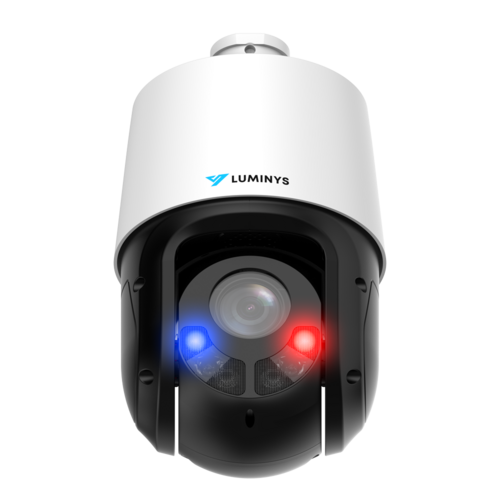

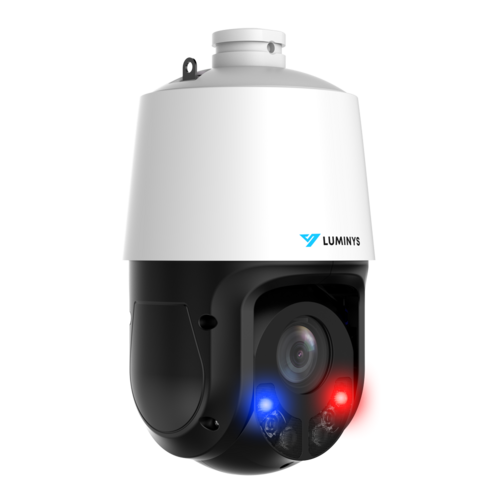

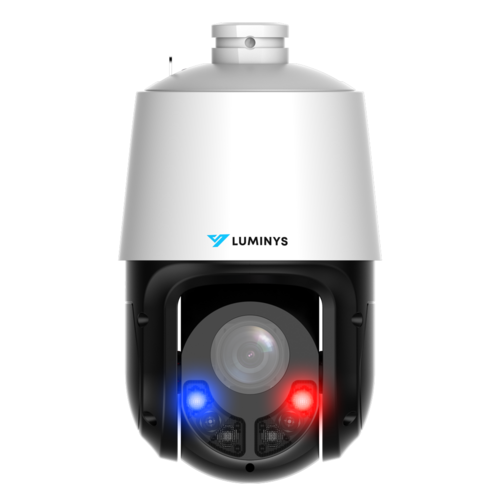

The Luminys P54-4DB25 is a Mainstream series 4MP dome PTZ camera featuring a 1/2.8" progressive CMOS sensor and a high-performance 25x optical zoom lens, 5–125mm. It outputs native 2560x1440 resolution at 30 fps utilizing highly efficient H.265+/H.264+ smart encoding and standard compression H.26, H.264, MJPEG. This model integrates the LumiFocus focus-retention system, LumiTracking, LumiSearch, and advanced Video Content Analytics+ (VCA+ / iMD) intelligence, backed by LumiPolarPro/LumiDesertPro thermal optimization and the LumiDeterrent active defense suite.
Key Configuration
- • Image sensor: 1/2.8-in. progressive CMOS, max resolution 2560×1440 (4MP) at 30 fps
- • Lens: 5–125mm (25x optical zoom), F1.6–F3.6, horizontal FOV: 51.9° (wide) to 3.0° (tele)
- • IR LEDs: 2 units, up to 100m (330 ft), white-light LEDs 2 units, up to 50m (165 ft)
- • Triple streams (Main, Sub 1, Sub 2)
- • Power: 12V DC or PoE+ (IEEE 802.3at), consumption 8W standard, 13W max
Key Features
This dome PTZ variant caps its edge storage at 256GB via microSD while introducing Face Detection for snapshot and facial attribute capture, alongside LumiSearch body-shape analysis for advanced NVR target identification. The system retains the full VCA+ analytics suite, triple-streaming, and 120dB WDR, while upgrading privacy controls to 8 privacy masking zones alongside its 8 Region of Interest (RoI) zones. All physical alarm I/O (2 in/1 out) and extensive mechanical PTZ capabilities—including 300 presets, 0–360° endless pan, and auto-flip functionality—remain identically supported.
Technical Context
Featuring an agile 1/1 s to 1/30,000 s electronic shutter and a clean >56 dB S/N ratio, this NDAA-compliant, IP66-rated system delivers exceptional low-light sensitivity, capturing sharp video down to 0.006 lux in color and 0.0006 lux in black-and-white. Engineered for long-range surveillance, its optics provide a substantial DORI profile capable of detecting targets up to 2500m and identifying them at 250m. The cross-browser compatible framework Chrome, Firefox, Safari, Edge incorporates a comprehensive, secure network stack supporting encrypted transport HTTPS, SSL, 802.1x, QoS, versatile streaming RTMP, RTSP, and flexible centralized storage infrastructure NAS, NFS, SFTP.
Installation Notes
Constructed with a metal cover and plastic dome 160 x 280.5mm, 2.7 kg, this dome PTZ variant matches the previous model’s PoE+ (802.3at)/12V DC power flexibility, -40°C to 65°C climate tolerances via LumiPolarPro/LumiDesertPro, and active red/blue light deterrence with LumiTracking. It differs primarily by scaling edge storage to a maximum of 256GB via microSD and expanding storage temperature thresholds up to 60°C within the native LumiViewer application ecosystem.
| Camera | |
|---|---|
| Model Series | Luminys Series Mainstream |
| Zoom | 25x |
| Image Sensor | 1/2.8-in. Progressive CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | |
| Color | 0.006 Lux at F1.6 |
| Black/White | 0.0006 Lux at F1.6 |
| With Illuminators On | 0 Lux |
| Illuminator | |
| Number of Illuminators | Two (2) IR LEDs, Two (2) White-Light LEDs |
| Illumination Range | IR: 100.1 m (330.0 ft) White Light: 50.3 m (165.0 ft) |
| Illuminator Control | Zoom Priority, Manual, Automatic, Off |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Control Speed | Manual |
| Power Off Memory | Supported |
| S/N Ratio | > 56 dB |
| Lens | |
| Focal Length | 5.0 mm (F1.6) to 125.0 mm (F3.6) |
| Aperture | F1.6 to F3.6 |
| Field of View | Horizontal: 51.9° to 3.0° Vertical: 39.7° to 2.2° Diagonal: 63.1° to 3.7° |
| Close Focus Range | 0.1 m to 1.5 m (0.3 ft to 4.9 ft) |
| DORI Distance | |
| Detect | 100.2 m to 2,500.2 m (328.1 ft to 8,202.8 ft) |
| Observe | 40.2 m to 1,000.2 m (131.9 ft to 3,280.8 ft) |
| Recognize | 20.2 m to 500.2 m (66.3 ft to 1,641.1 ft) |
| Identify | 10.2 m to 250.2 m (33.5 ft to 820.9 ft) |
| Pan/Tilt/Zoom | |
| Range | Pan: 0° to 360° Endless Tilt: -15° to 90° Auto Flip: 180° |
| Pan Speed | Manual Control: 0.1°/s to 180°/s Preset: 180°/s |
| Tilt Speed | Manual Control: 0.1°/s to 90°/s Preset: 90°/s |
| Preset | 300 |
| Tour | 8 (Up to 32 Presets per Tour) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| 3D Positioning | Automatically Pans, Tilts, and Zooms to a Selected Area |
| LumiFocus | Images Maintain Focus When Zooming In or Out |
| Video Compression | |
| Smart Encoding | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only) |
| Standard Codec Supported | H.265, H.264, MJPEG |
| Stream Capability | Three (3) Streams |
| Resolution | |
| Supported Resolutions | 4MP (2560 x 1440), 3MP (2048 x 1536), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | |
| Main Stream | 4MP (2560 x 1440) at 30 fps |
| Sub Stream 1 and 2 | D1 (704 x 480), 720p (1280 x 720) at 30 fps |
| Video Bit Rate | |
| H.265 | 1,280 kbps to 9,216 kbps |
| H.264 | 4,096 kbps to 14,336 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night & Image Processing | |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 3D NR |
| Visual Angle | 0°, 180° |
| Privacy Mask | Eight (8) Zones |
| Region of Interest | Eight (8) Regions |
| Analytics | |
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection, Parking Detection, Crossing Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Vehicle/Human Alarm Classification, Linkage Tracking |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| LumiDeterrent | Built-In Speaker and Flashing Red and Blue Lights |
| LumiTracking | Automatically Tracks a Target in Motion for an Allotted Amount of Time or Until the Object Exits the Scene |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Sampling Bitrate | PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz |
| Interface | Input: One (1) Channel Output: Built-In Speaker and One (1) Channel |
| Alarm | |
| Event Triggers | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
| Linkage | Capture, Record, Send Email, Alarm Digital Output, Audio, Warning Light |
| Interface Input | Two (2) Channels |
| Interface Output | One (1) Channel |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP/SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE+ (802.3at) |
| Power Consumption | 8 W (Standard), 13 W (Max.) |
| Construction | |
| Net Weight | 2.7 kg (6.0 lb) |
| Gross Weight | 4.5 kg (9.9 lb) |
| Operating Temperature | -40 °F to 149 °F (-40 °C to 65 °C) |
| Operating Humidity | Less than 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Ratings | IP66 |
| Product Dimensions | Φ160.0 mm x 280.5 mm (Φ6.3 in. x 11.0 in.) |
| Packaging Dimensions (L x W x H) | 267.0 mm x 267.0 mm x 437.0 mm (10.5 in. x 10.5 in. x 9.3 in.) |
| Material | Metal Cover With Plastic Dome |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
