Product Overview

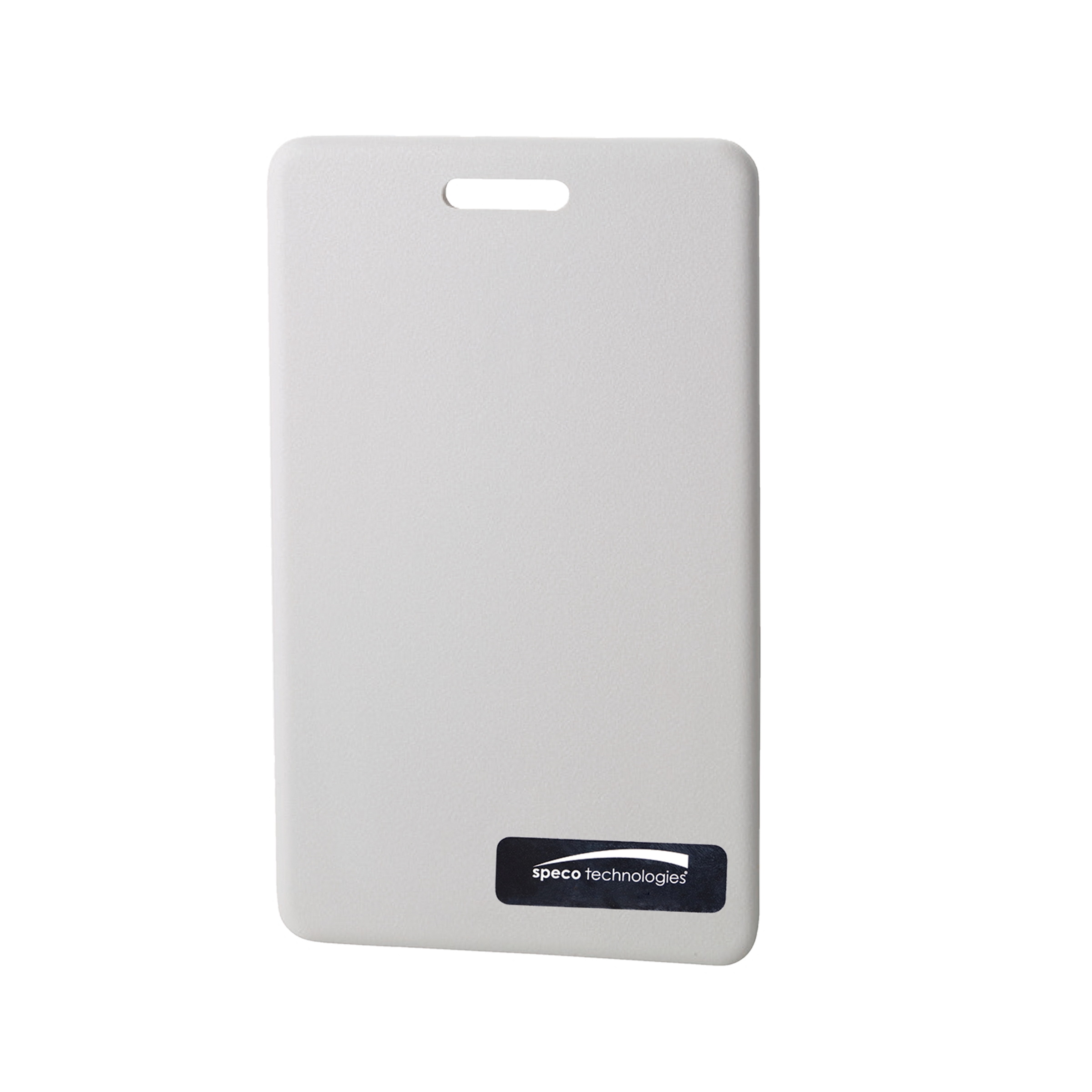

Up to 8in contactless read range. Contactless Digital Radio Frequency Identification (RFID) technology. Pack quantity: 25 cards. Limited lifetime warranty. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: APSC1
Key Features
- • Frequency 125kHz.
- • NDAA Compliant*.
Installation Notes
2.2" W x 3.4" H x 0.06" D (56mm x 86mm x 1.5mm)
| Full Specifications | |
| Read Range | Up to 8in |
| Technology | Contactless Digital Radio Frequency Identification (RFID) |
| Pack Quantity | 25 cards |
| Warranty | Limited lifetime warranty |
| Technical Specification | |
| Frequency | 125 kHz |
| Operation | Passive (no battery) |
| Type | Clamshell card |
| Formats | Wiegand 26-bit |
| Material | ABS |
| Color | Off-White |
| Slot Punch | Standard, vertical slot |
| Marking | Date code and ID |
| Dimensions | 2.2" W x 3.4" H x 0.06" D (56mm x 86mm x 1.5mm) |
| Weight | 0.3oz (9g) |
| Operating Temperature | -35°F to 122°F (-37°C to 50°C) |
| Humidity | 0-95% non-condensing |
| Supporting Readers | AP300HA, AP500HA, AP620HA, AP640HA |
Name
Description
Size
Downloads
File
Specification Sheet
0.2mb
