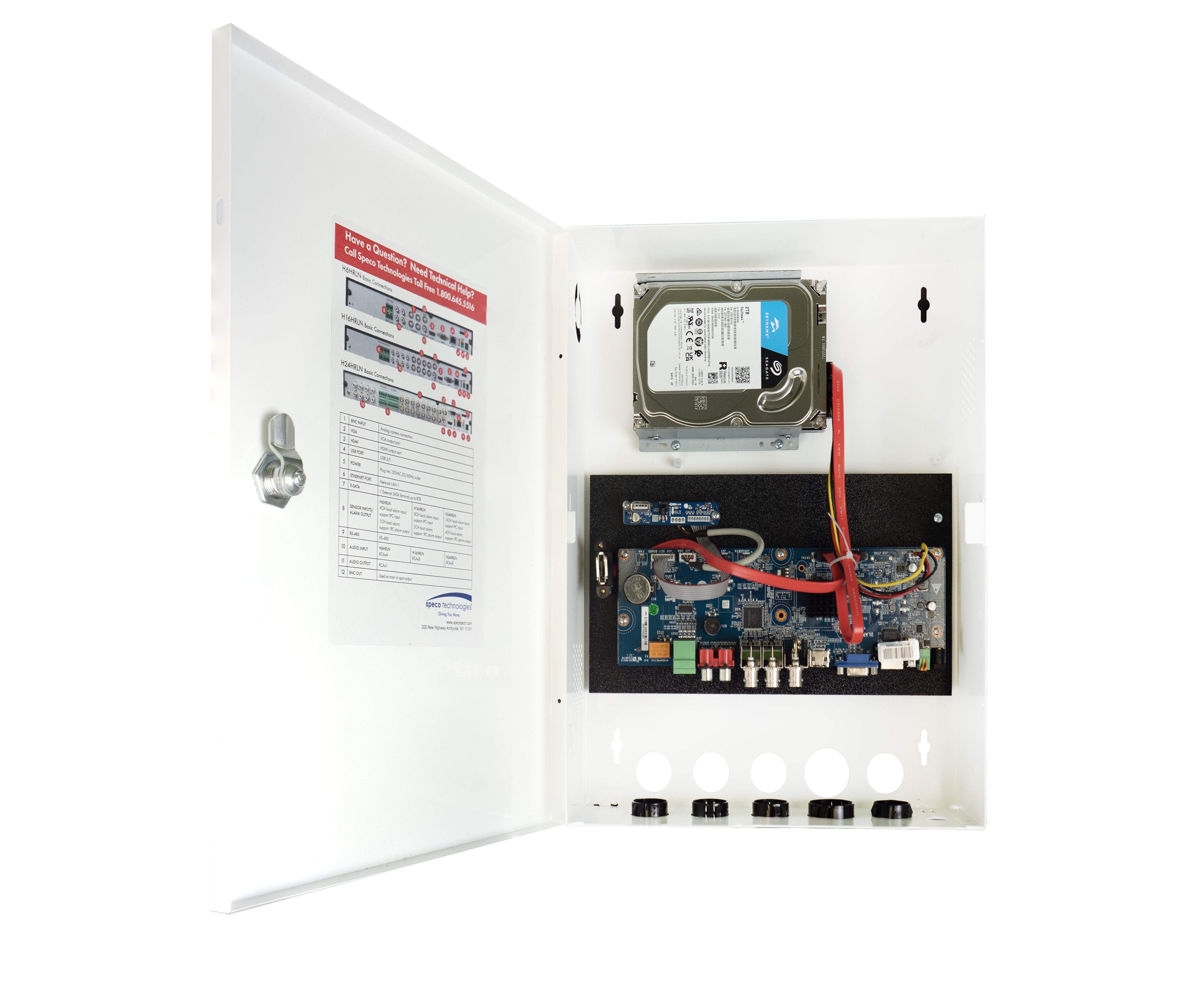

Speco - H16WHRLN12TB - 16 Channel Wall Mount Hybrid Digital Video Recorder with 12TB HDD
Part number:
Price:
Product Overview
The H16WHRLN12TB from Speco is a versatile 16 channel wall mount hybrid digital video recorder equipped with a robust 12TB HDD, providing exceptional storage capacity and advanced functionalities for reliable video surveillance. It's designed to support high-definition video and multiple recording types, making it an ideal choice for both home and business security needs.
Key Configuration
Model: H16WHRLN12TB | Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels | H.265 compression | 1 eSATA port for an additional 8TB of storage | 4K HDMI out and VGA monitor output | Object and line crossing detection and alerts
Key Features
- • High Resolution Support: Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels.
- • Advanced Compression: H.265 compression allows you to store up to 2x more video data than H.264, optimizing storage usage.
- • Expandable Storage: 1 eSATA port enables adding an additional 8TB of storage for increased performance.
- • Multiple Output Options: 4K HDMI out and VGA monitor output provide versatile display capabilities.
- • Smart Detection Features: Object and line crossing detection with alerts enhance security monitoring.
| Specifications | |
| NDAA | Compliant |
| Number Of Channels | 16 Channel |
| Recording FPS (Per Channel) | 30 FPS @ 3840 × 2160 |
| Compression Method | H.265, H.264 |
| Computer Connectivity | Windows PC |
| Mobile Platform | Android, Iphone; Speco Blue iOS®, Android™, SecureGuard® Client (Specification Sheet (H16WHRLN column)) |
| Mobile connectivity | Mobile Apps, Web Browser |
| Harddrive Size | 12TB |
| Features | Audio Recording Capability, Built-In Display, Free DDNS, Multi-Zone Video Motion Detection, PTZ Support, 4K Resolution |
| Audio Input (RCA) | 4 |
| Details | |
| High Resolution Support | Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels for crystal-clear video quality. |
| Expandable Storage | 1 eSATA port enables adding an additional 8TB of storage for increased performance. |
| Remote Access | Free DDNS and P2P services facilitate easy remote viewing from various devices including web browsers and smart TVs. |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Inputs | BNC x8, configurable |
| IPC Only Input | 8CH (up to 16-CH)* |
| Network Access & Transfer Bandwidth | 32/96Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| Output | HDMIx1: 4Kx2K/1920x1080/1280x1024 |
| Output | VGAx1: 1920x1080/1280/x1024/1024x768 |
| Output | BNCx1: CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx8 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC), 4MP/3MP@12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) IP: 8MP and under@ 25/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 8-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local alarm input; Support IPC alarm input |
| Output | 2-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Other Viewing Platforms | Apple TV® and Amazon Fire TV® |
| Storage | |
| HDD | SATAx2, max 40TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Dimensions | |
| Power Supply | DC12V/4A |
| Power Consumption | ≤15W(without HDD) |
Name
Description
Size
Downloads
File
Specification Sheet
1.5mb
File
User Manual
5.2mb
