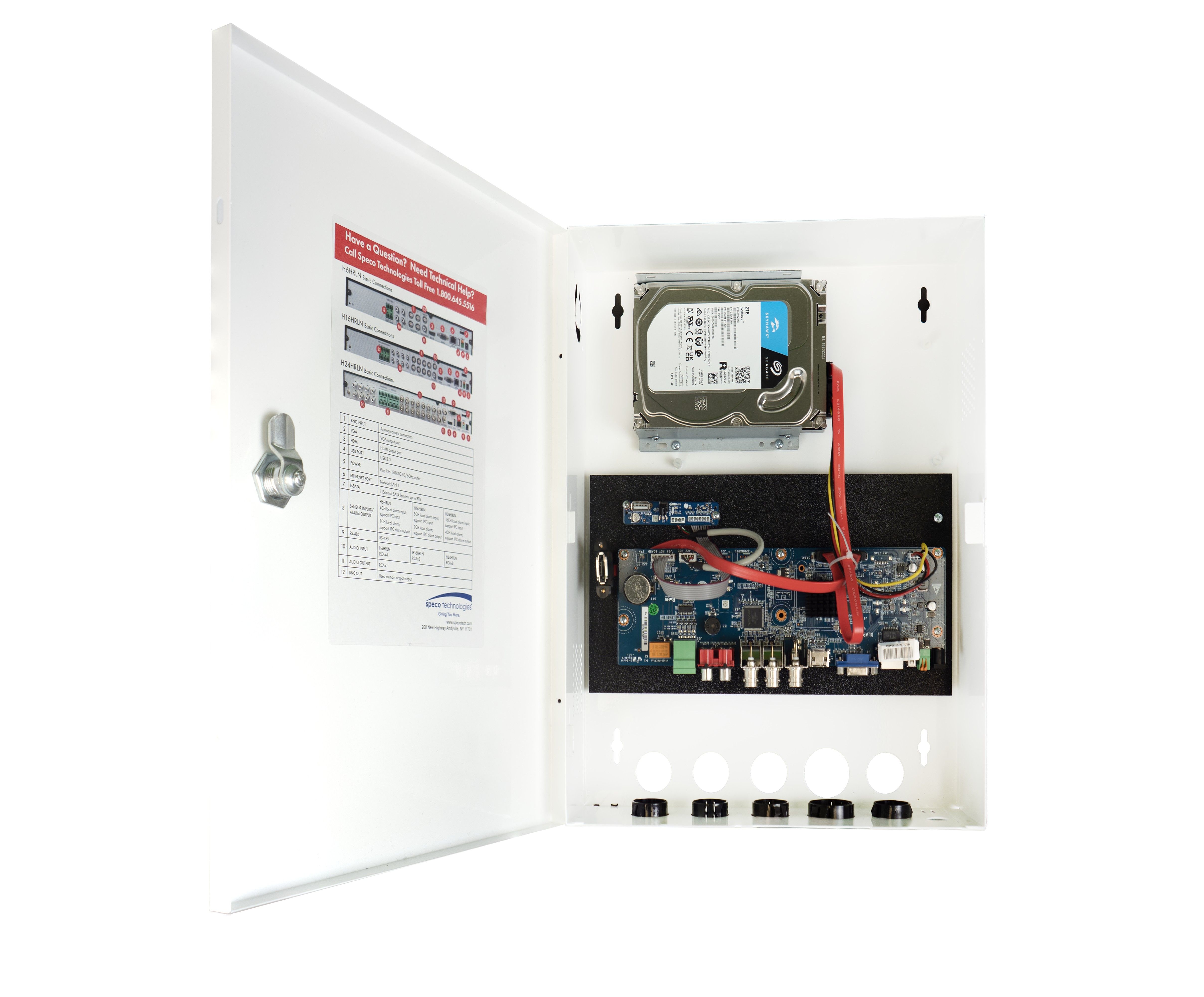

Speco - H16WHRLN16TB - 16 Channel Wall Mount Hybrid Digital Video Recorder with 16TB HDD
Part number:
Price:
Product Overview
The H16WHRLN16TB from Speco is a versatile 16-channel wall mount hybrid digital video recorder featuring a robust 16TB HDD. Ideal for businesses and homes, it supports high-definition video, advanced compression technologies, and seamless remote access for enhanced security and monitoring. Speco's NDAA compliant WHRLN recorders, will take your footage quality to the next level supporting up to 8MP cameras @ 30 fps.
Key Configuration
Model: H16WHRLN16TB | Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels (H16WHRL, H24WHRLN) | H.265 compression - Store up to 2x more than H.264! | 1 eSATA port for an additional 8TB of storage | 4K HDMI out and VGA monitor output | Object and line crossing detection and alerts
Key Features
- • Video Quality: Supports up to 5MP for clear and detailed images.
- • Storage Efficiency: H.265 compression allows 2x more data storage than H.264.
- • Expandable Storage: 1 eSATA port for an additional 8TB.
- • High-Resolution Outputs: 4K HDMI and VGA outputs.
- • Intelligent Alerts: Object and line crossing detection.
| Specifications | |
| NDAA | Compliant |
| Number Of Channels | 16 Channel |
| Recording FPS (Per Channel) | 30 FPS @ 3840 × 2160 |
| Compression Method | H.265, H.264 |
| Computer Connectivity | Windows PC |
| Mobile Platform | Android, Iphone; Speco Blue iOS®, Android™, SecureGuard® Client (Specification Sheet (H16WHRLN column)) |
| Mobile connectivity | Mobile Apps, Web Browser |
| Harddrive Size | 16TB |
| Features | Audio Recording Capability, Built-In Display, Free DDNS, Multi-Zone Video Motion Detection, PTZ Support, 4K Resolution |
| Audio Input (RCA) | 4 |
| Details | |
| Video Quality | Supports up to 5MP for clear and detailed images across all channels, enhancing surveillance capabilities. |
| Expandable Storage | Features 1 eSATA port for an additional 8TB of storage, providing flexibility for future needs. |
| Customizable Channel Views | Users can customize channel view placements to meet their monitoring needs. |
| System | |
| OS | Embeded Linux |
| Video | |
| Analog Inputs | BNC x8, configurable |
| IPC Only Input | 8CH (up to 16-CH)* |
| Network Access & Transfer Bandwidth | 32/96Mbps |
| Network Access Format | 8MP/5MP/4MP/3MP/1080P/960P/720P@ 25/30fps |
| Output | |
| Output | HDMIx1: 4Kx2K/1920x1080/1280x1024 |
| Output | VGAx1: 1920x1080/1280/x1024/1024x768 |
| Output | BNCx1: CVBS (used as the main or spot output) |
| Audio | |
| Input | RCAx8 |
| 2-way Audio | Take up channel one audio input |
| Local Output | RCAx1 |
| Record | |
| Record Stream | Dual stream recording |
| Resolution | 4K/5MP/4MP/1080P/720P/WD1 |
| Frame Rate | Analog: 5MP@ 12fps (PAL/NTSC), 4MP/3MP@12fps/15FPS (PAL/NTSC), Under 4MP@ 25fps/30fps (PAL/NTSC) IP: 8MP and under@ 25/30fps (PAL/NTSC) |
| Bit Rate | 32~78Mbps |
| Mode | Manual, schedule, motion, sensor, intelligence |
| Playback | |
| Simultaneous Playback | Max 8-CH |
| Search Mode | EZ Search, museum search, time search, event search, bookmark search, snapshot search |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, etc. |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local alarm input; Support IPC alarm input |
| Output | 2-CH local alarm input; Support IPC alarm input |
| Linkage | Record, snapshot, preset, e-mail, pop-up window, etc. |
| Network | |
| Interface | RJ45 10M/100M/100Mbps x 1 |
| Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP |
| Web Client | Multiple online users monitoring |
| Other Viewing Platforms | Apple TV® and Amazon Fire TV® |
| Storage | |
| HDD | SATAx2, max 40TB per HDD |
| eSATA | eSATAx1 max 8TB |
| Export | |
| Local | USB, USB mobile HDD |
| Network | Yes |
| Interface | |
| USB | USB2.0x2 |
| Remote Control | Yes |
| Dimensions | |
| Power Supply | DC12V/4A |
| Power Consumption | ≤15W(without HDD) |
Name
Description
Size
Downloads
File
Specification Sheet
1.5mb
File
User Manual
5.2mb
