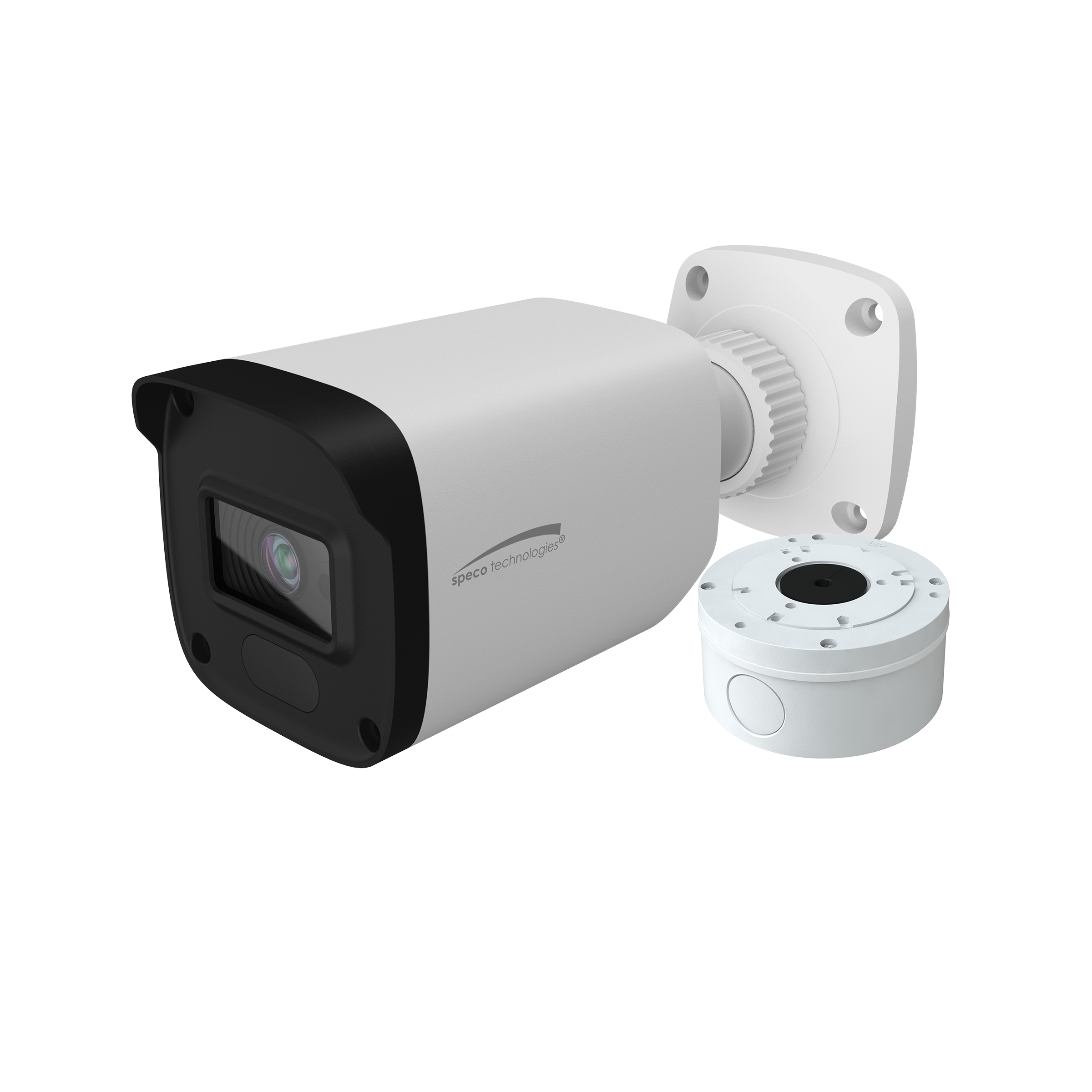

Speco - H2LB1 - 2MP HD-TVI Bullet Camera with White Light Intensifier® and Junction Box
Part number:
Price:
Product Overview
Full HD 1080P at 30 FPS • 24/7 full color image with white light intensifier • White LED range: Up to 98’ (depending on scene reflection) • IP67 compliant, weather resistant • 5 year warranty • NDAA Compliant* *Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: H2LB1
Key Features
- • Full HD 1080P at 30 FPS.

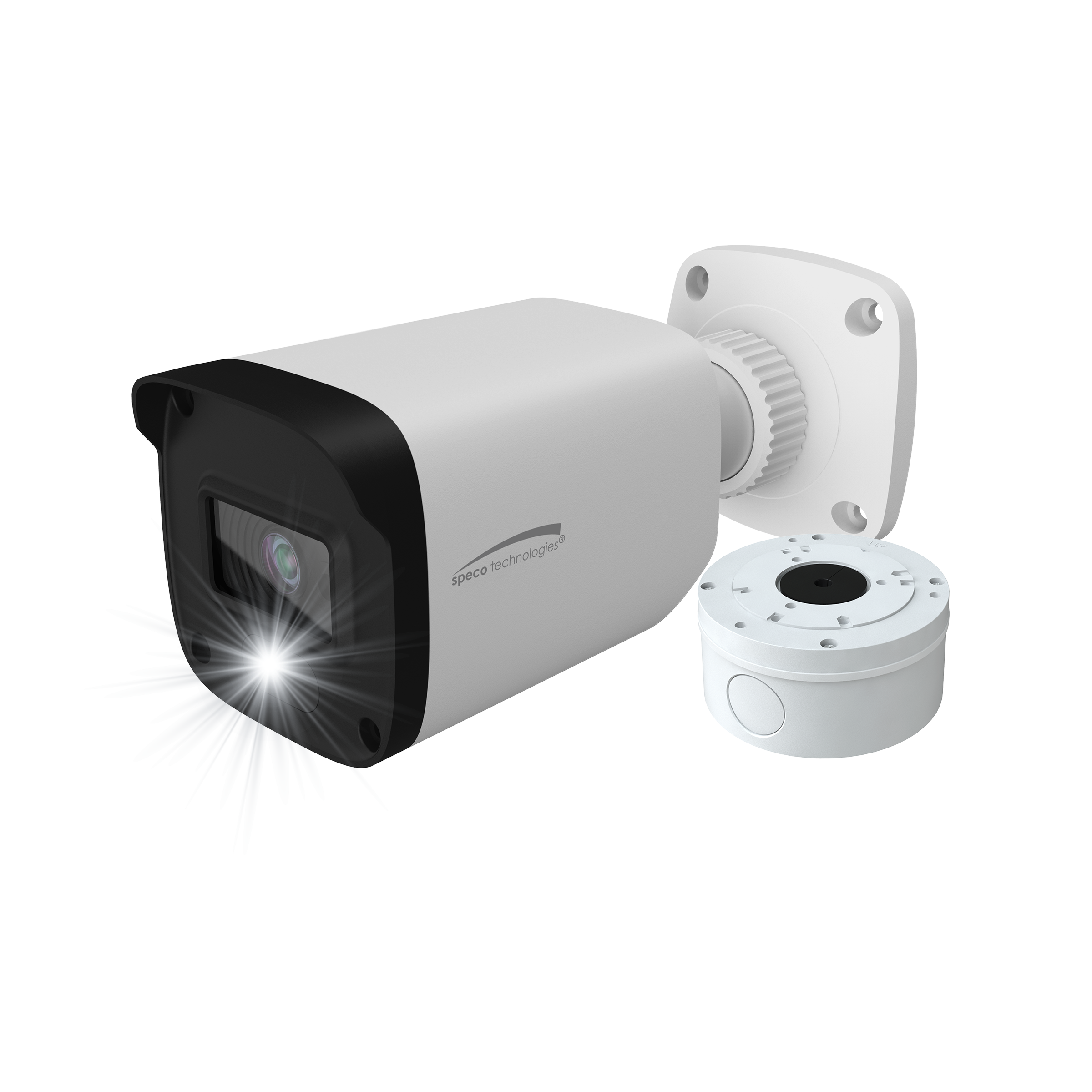

- • 24/7 full color image with white light intensifier.
- • White LED range: Up to 98’ (depending on scene reflection).
- • IP67 compliant, weather resistant.
- • 5 year warranty.
Installation Notes
6.52" (L) × 2.71" (W) × 2.71" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 2MP |
| Maximum Resolution | 1920 (H) x 1800 (V) |
| Video Output | AHD/TVI/CVI/CVBS (* camera comes in default to HD-TVI) |
| Image System | PAL/NTSC |
| Electronic Shutter Speed | Auto: 1/50s. ~ 1/100000s (PAL); 1/60s ~ 1/100000s (NTSC) |
| LED Distance | 65 ~ 98' |
| Frame Rate | 30fps (60Hz); 25fps (50Hz) |
| Min. Illumination | 0 lux (LED ON) |
| Lens | 2.8mm |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Function Control | OSD (UTC Control) |
| Smart LED | Manual or auto mode |
| WDR | Digital WDR |
| Digital NR | Yes |
| AGC | No |
| Auto White Balance | Yes |
| Defog | No |
| BLC | Yes |
| Contrast | Yes |
| Saturation/Color Gain | Yes |
| Sharpness | Yes |
| Exposure | Global exposure or central exposure supported |
| Image Setting | Yes |
| Defect Correction | Auto |
| Operating & Unit Specifications | |
| Power | DC 12V (± 15%) |
| Power Consumption | LED OFF: < 1W; LED ON: < 3W |
| Operating Temperature | -22°F ~ 122°F |
| Operating Humidity | 10% ~ 90% (relative humidity) |
| Unit Dimensions | 6.52" (L) × 2.71" (W) × 2.71" (H) |
Name
Description
Size
Downloads
File
Specification Sheet
0.7mb
File
User Manual
3.5mb
