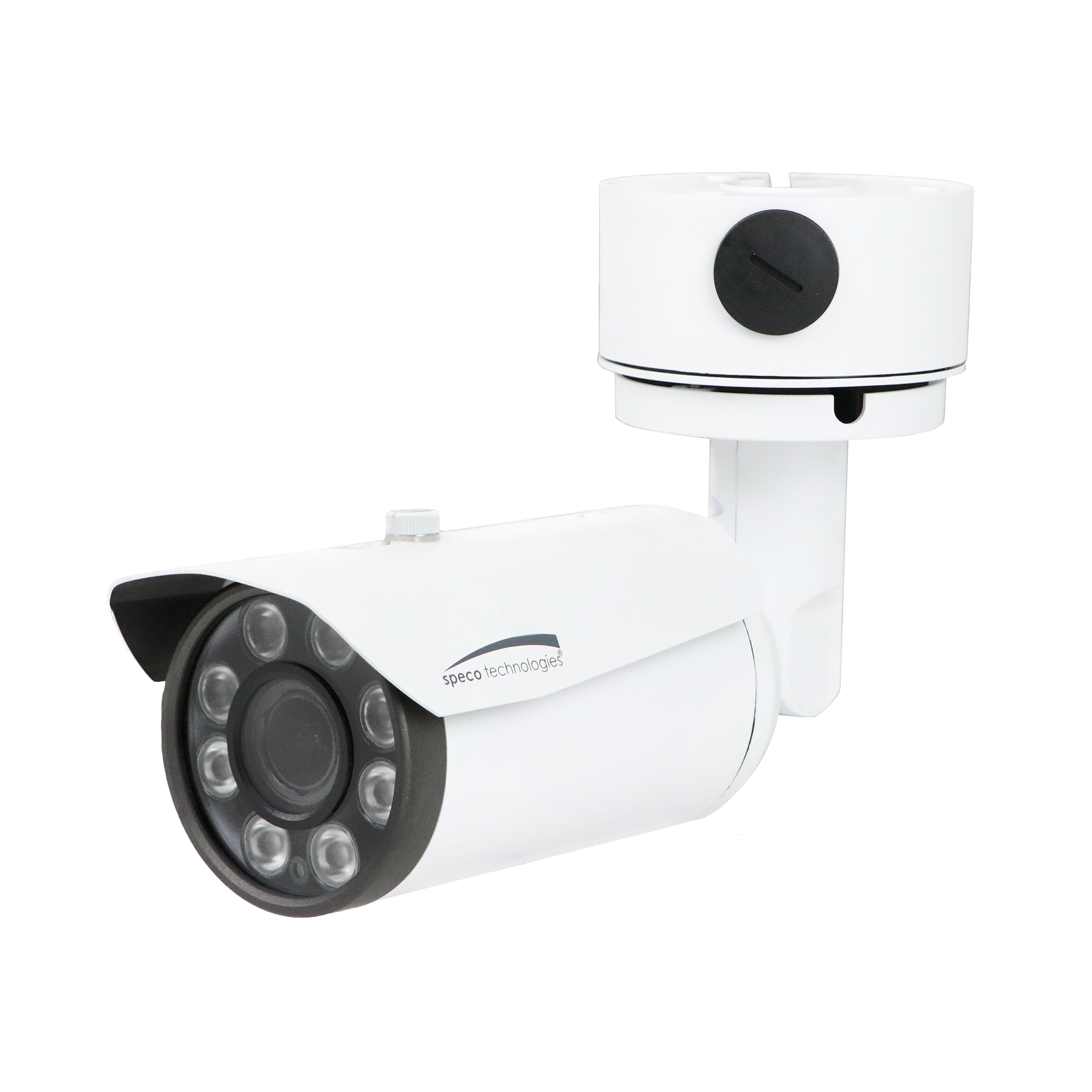

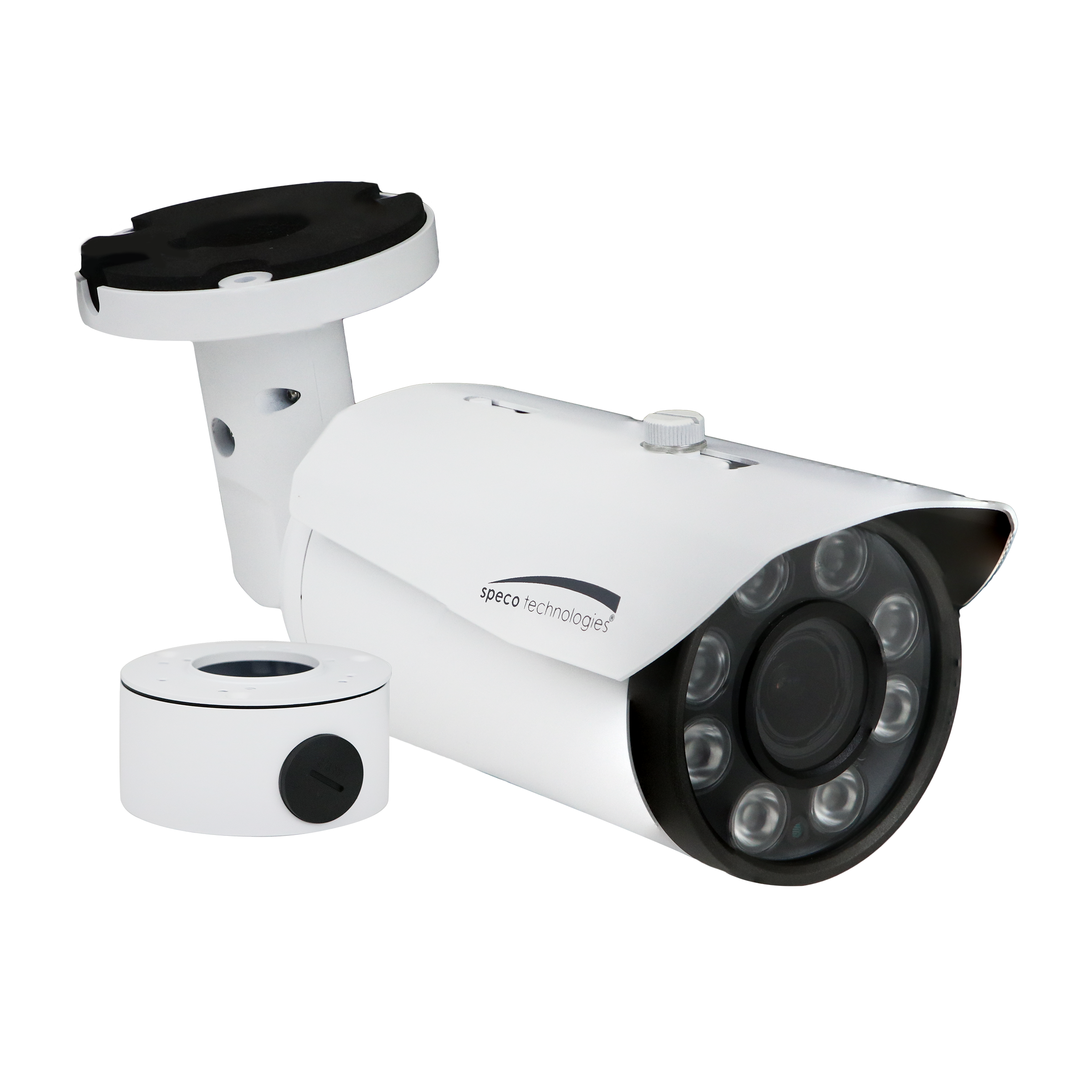

Speco - H5B1M - 5MP HD-TVI Motorized Bullet Camera with Junction Box
Part number:
Price:
Product Overview
Supports up to 5MP TVI, 2MP AHD/CVI and CVBS by dip switch. True WDR. IR Range: ~65 ft (depending upon scene reflection). Motorized lens with auto focus. Full OSD operation via UTC (up the coax). 12VDC operation (power supply not included). IP66 compliant, weather resistant. 5 year warranty. **Products are in compliance with NDAA Section 889 Part B Guidelines**.
Key Configuration
Model: H5B1M
Installation Notes
9.1" (L) × 3.3" (W) × 4.3" (H) (231 mm × 84 mm × 110 mm)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 5MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 5MP: 2592 x 1944 |
| Field of View | 30° ± 3° - 99° ± 2° |
| Filter | Removable IR Cut Filter |
| Video Output | TVI / CVI / AHD / CVBS |
| Minimum Illumination | 0 lux (8PCs high power led ON) |
| S/N Ratio | ≥ 50dB |
| Image System | PAL: 50Hz/NTSC: 60Hz |
| White Balance | ATW (PRO default), Gray World Optional |
| True WDR | Default OFF (≥ 120dB) |
| 3DNR | AUTO |
| AGC | ON |
| BLC | OFF |
| Defog | OFF/ON |
| Auto Exposure Mode | Yes |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) (± 10%) |
| Operating Temperature | -22°F ~ 149°F |
| Storage Temperature | -22°F ~ 122°F |
| Unit Dimensions | 9.1" (L) × 3.3" (W) × 4.3" (H) (231 mm × 84 mm × 110 mm) |
| Unit Weight | 1.81 lbs. |
Name
Description
Size
Downloads
File
Specification Sheet
0.7mb
File
User Manual
0.9mb
