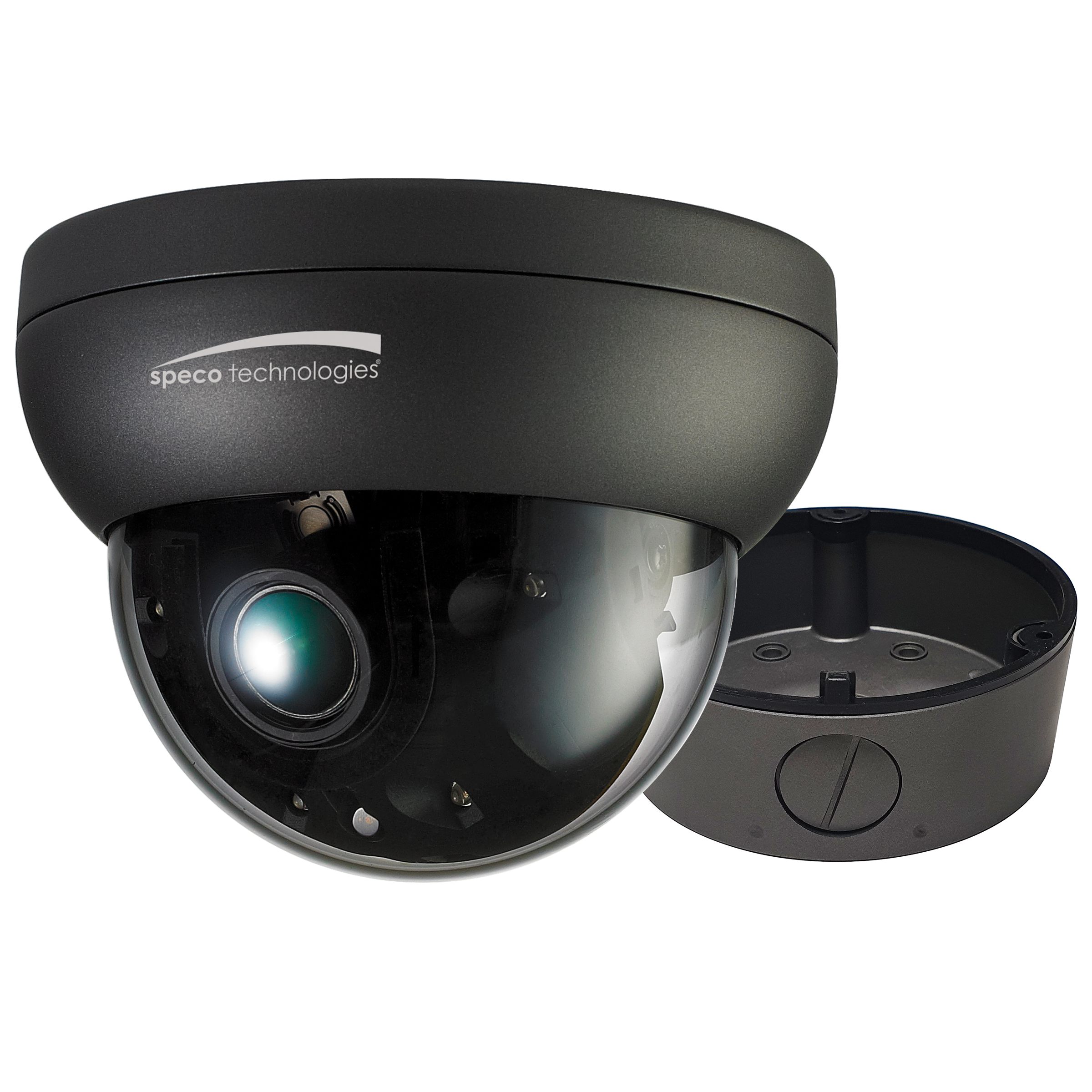

Speco - HT7246T1 - 2MP HD-TVI Intensifier® Dome Camera with Junction Box
Part number:
Price:
Product Overview
This product is RETIRED. Replaced by HT7246T2.
Key Configuration
Model: HT7246T1
Key Features
- • Color in low light without IR LEDs.
- • Supports Full HD resolution over coax @ 30fps (HD-TVI).
- • Full OSD operation through on-board control and UTC (up the coax).
- • Additional 960H analog output.
- • Built-in heater.
Installation Notes
3.9" (H) × 5.10" (Dia.)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9" Sony Exmor CMOS, 2MP |
| Effective Pixels | 1985 (H) × 1105 (V) |
| Total Pixels | 2001 (H) × 1121 (V) |
| Resolution | 1920×1080 @30fps |
| Minimum Illumination | 0.01 lux |
| Scanning System | Progressive |
| Video Output | 1920 × 1080 25p/30p |
| Output | TVI/CVBS |
| S/N Ratio | More than 52dB (AGC OFF / Weight ON) |
| AGC | 0 ~ 10 (level adjustable) |
| Shutter Speed | Auto / Manual / Flicker |
| Sense-up | Auto/OFF (Selectable limit 2x - 32x) |
| WDR | Normal/ROI |
| Day/Night | Auto / Color / BW |
| Motion Detection | On / Off (4 zone) |
| Privacy Masking | On / Off (16 zone) |
| White Balance | Auto / AWB / AWB-Set / Manual |
| 2D/3DNR | Off / Low / Middle / High |
| Mirror/Flip | On / Off |
| Backlight | Off / HLC / BLC / WDR |
| Sharpness | 0-10 (level adjustable) |
| Lens Shading | On / Off |
| Defog | On / Off |
| Operating & Unit Specifications | |
| Power Supply | 12VDC / 24VAC dual voltage (power supply not included) |
| Power Consumption | 12VDC, 360mA ± 10% / 24VAC, 145mA ± 10% |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | 0% - 95% RH |
| Unit Dimensions | 3.9" (H) × 5.10" (Dia.) |
| Unit Weight | 2.63 lbs. |
| Certifications | FCC |
