Key Configuration

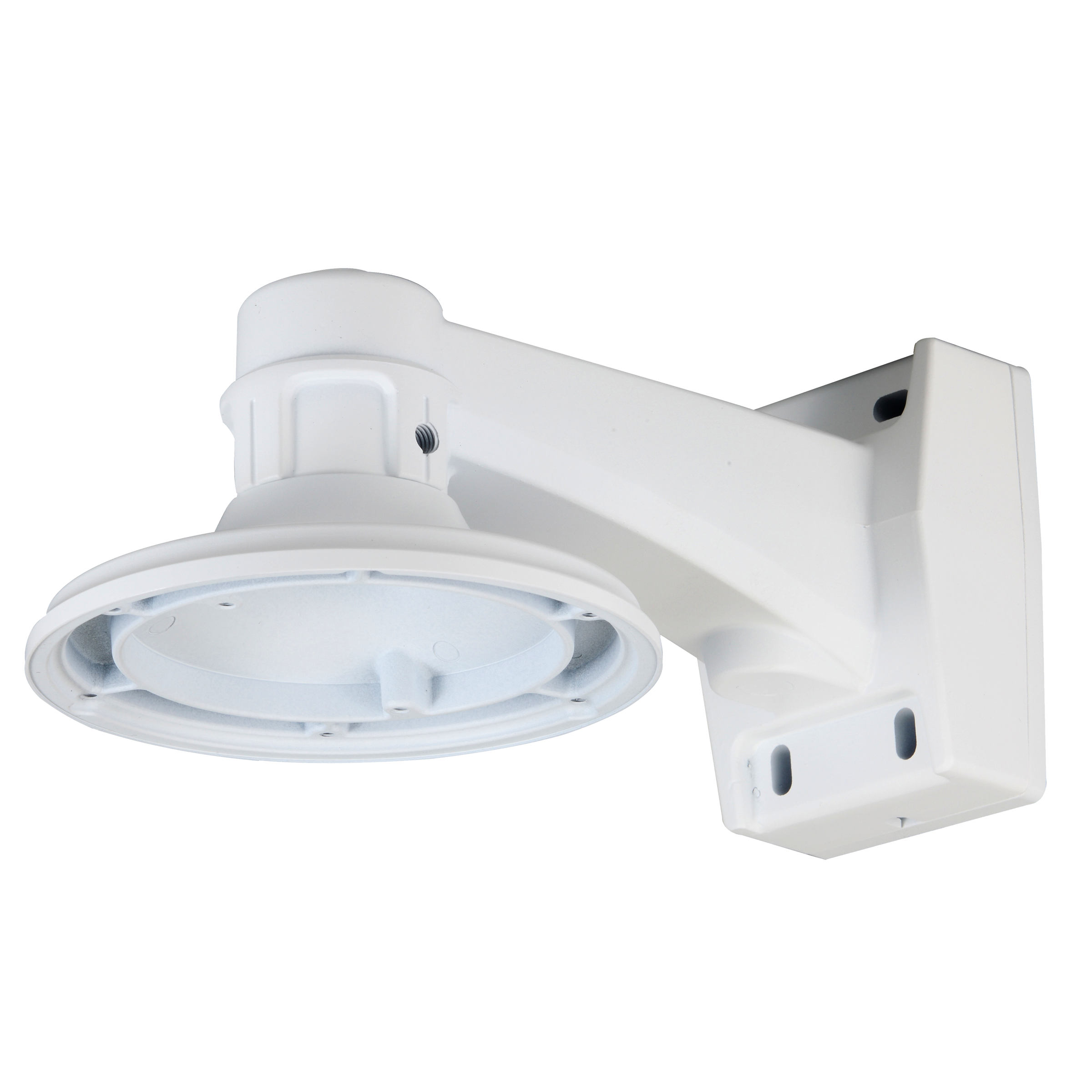

Model: INTWMW
For - HTIND8/9/10/D8FFI/7246/7247/7250IHR/7248FFI/5300/5400DPVF/5845/5945/5735/5835/5935DN
Installation Notes
10.53” dia, 5.59" / 3.07”, 4.35”
| Dimensions | |
| Front View | 10.53” dia |
| Side View | 3.07” |
| Specifications | |
| 3 Machine Screws M4 x 15 | |
| 1 Base Sponge Adaptor | |
| 3 Machine Screws M4 x 22 | |
| 1 Bracket Dome Adaptor | |
| 2 Machine Screws M4 x 18 | |
| 1 Wall Bracket Adaptor | |
| 1 Wrench | |
| 4 Tapping Screws 6 x 40 | |
| 4 Hexagon Socket Screws M5 x 30 | |
| 2 Hexagon Socket Screws M8 x 8 | |
| 4 Plastic Anchor 8 x 40 | |
Name
Description
Size
Downloads
File
Installation Guide
1.2mb
