Product Overview

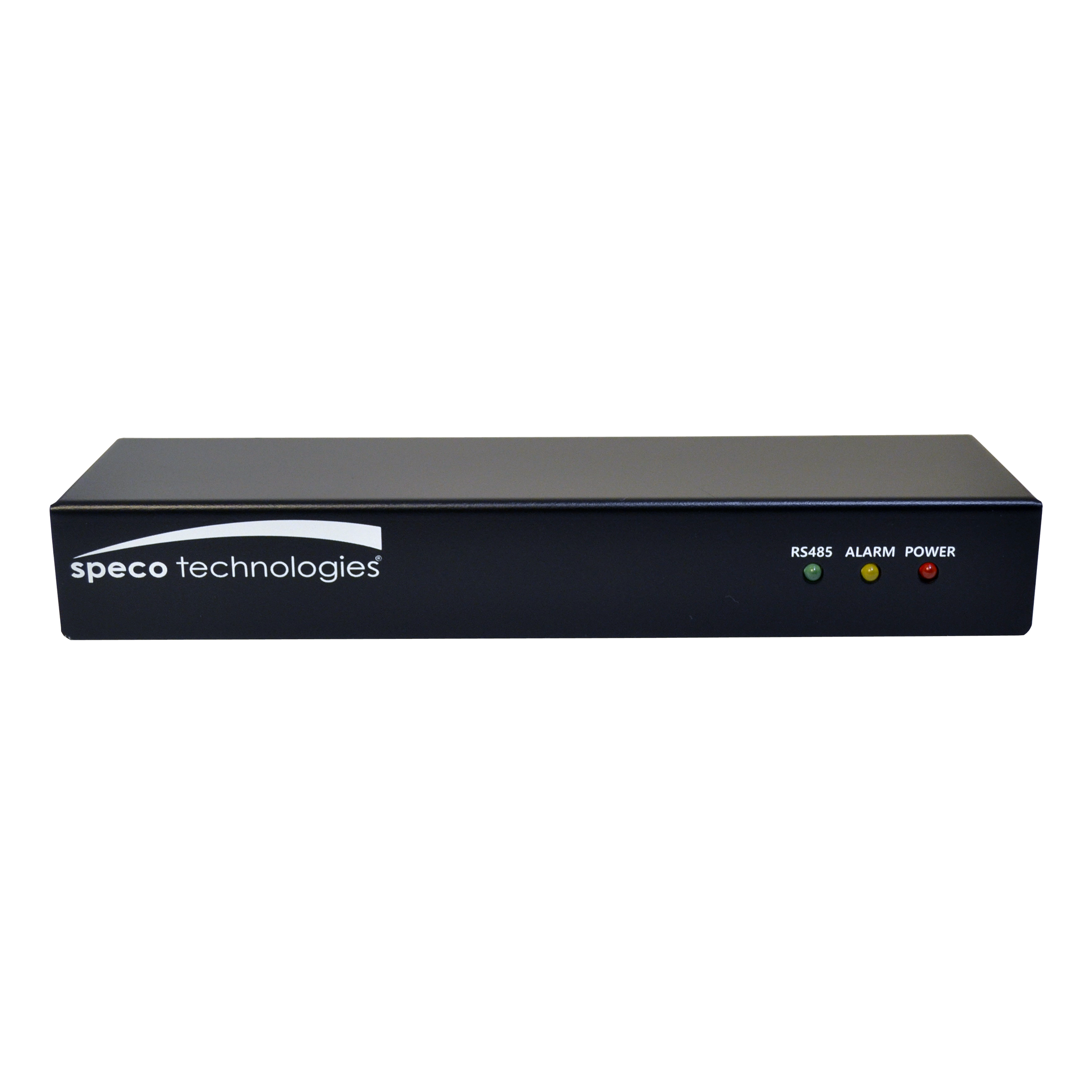

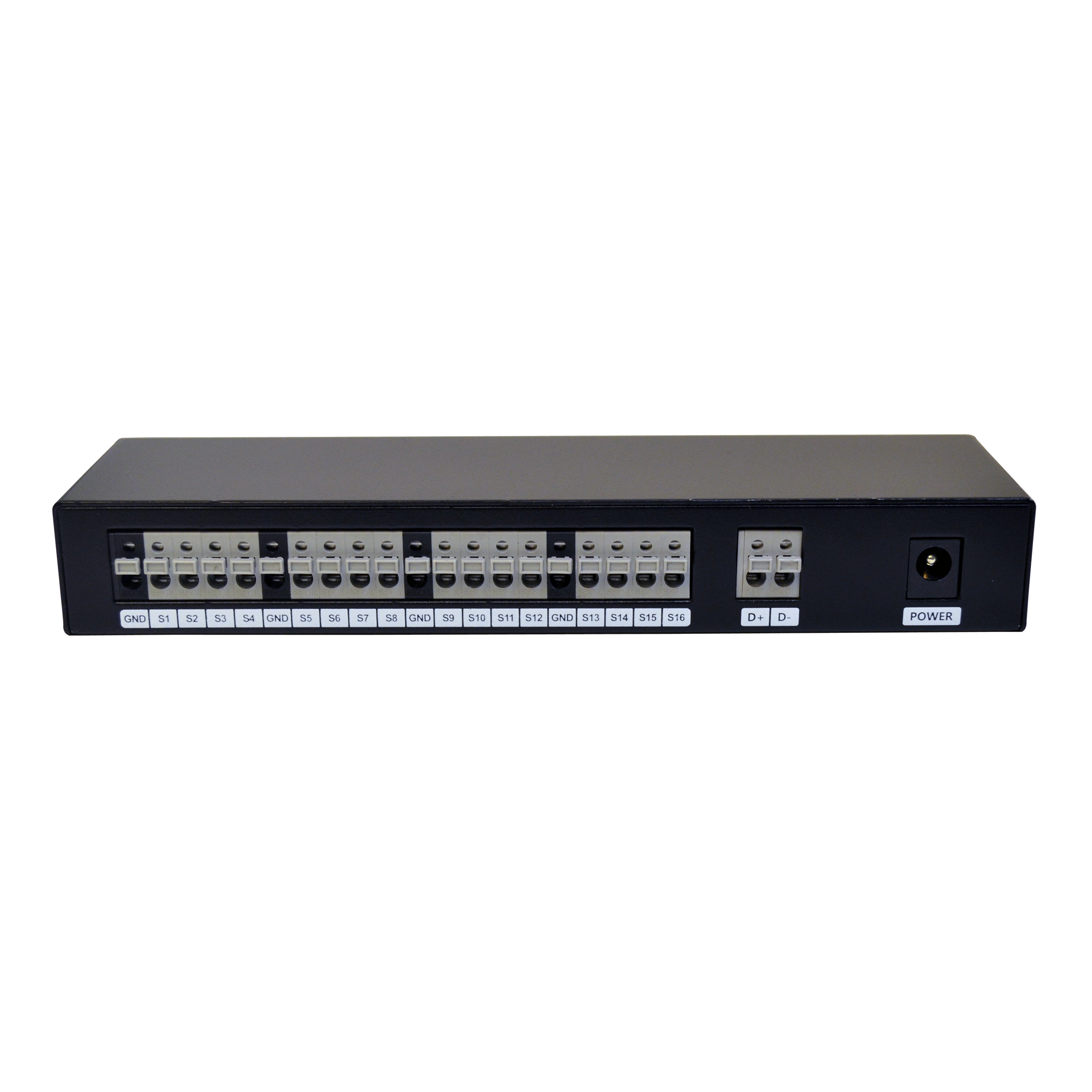

• 16 Alarm Inputs • Interface with Speco DVR/NVR’s via RS-485 • Power: 12VDC • Dimensions: 6.7” (W) x 1.0” (H) x 1.9” (D) • Front LED’s: Power (Red), Alarm (Yellow), RS-485 (Green) **Products are in compliance with NDAA Section 889 Part B Guidelines IOMOD is an external device that connects to the DVR or NVR via RS-485 to extend the number of alarm inputs up to 16.
Key Configuration
Model: IOMOD
Installation Notes
6.7” (W) x 1.0” (H) x 1.9” (D)
| Full Specifications | |
| Alarm Inputs | 16 |
| Interface | Speco DVR/NVR’s via RS-485 |
| Power | 12VDC |
| Dimensions | 6.7” (W) x 1.0” (H) x 1.9” (D) |
| LED’s | Power (Red), Alarm (Yellow), RS-485 (Green) |
| Model | IOMOD |
| Interface with DVR/NVR | RS-485 (Terminal Block) |
| Front LEDs | Power (RED) |
| Dimension (W x H x D) | 6.7" x 1.0" x 1.9" (170mm x 25mm x 48mm) |
Name
Description
Size
Downloads
File
User Manual
0.2mb
