Product Overview
• Extends both power and data 330′ per repeater • Purchase a second repeater for total run of 1000′ • No external power required • Compatible with the 802.3af standard • Supports gigabit network speeds • Built-in LED status indicator • Plug and play for easy installation Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: IPPOERPT
Installation Notes
2.6" (L) x 4.3" (W) x 1" (H)
| Full Specifications | |
| Complies with NDAA Guidelines | Yes |
| Max Device Power | 1st IPPOERPT Max.: 8.58W at 656' 2nd IPPOERPT.: 4.21W at 908' |

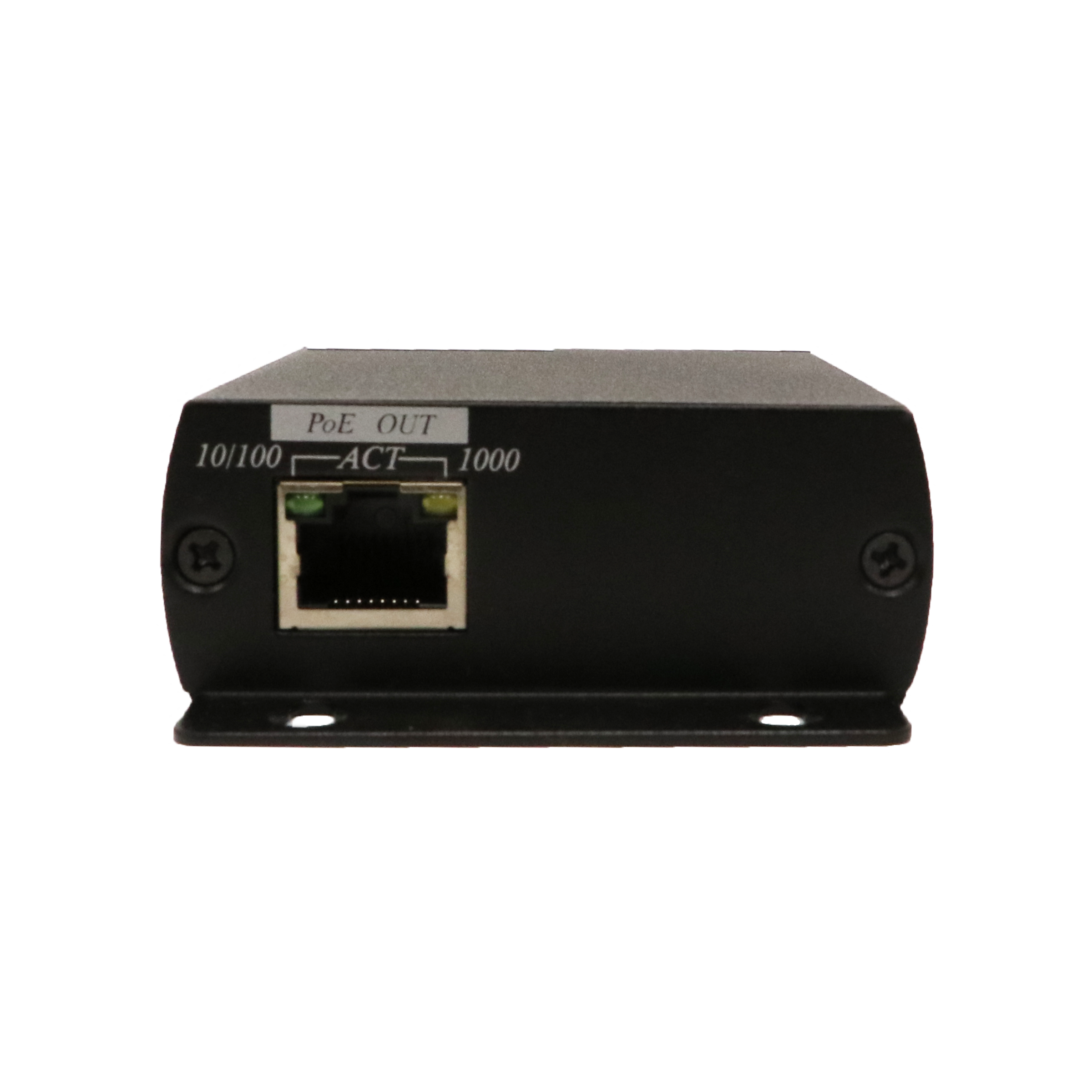

| Power & Data Input/Output | RJ45 |
| Data Link | Pin 1/2, 3/6, 4/5, 7/8 |
| Power Link | Pin 1/2 (+), 3/6 (-) End Span |
| Transmission Range | 2 pieces repeater up to 360 meters |

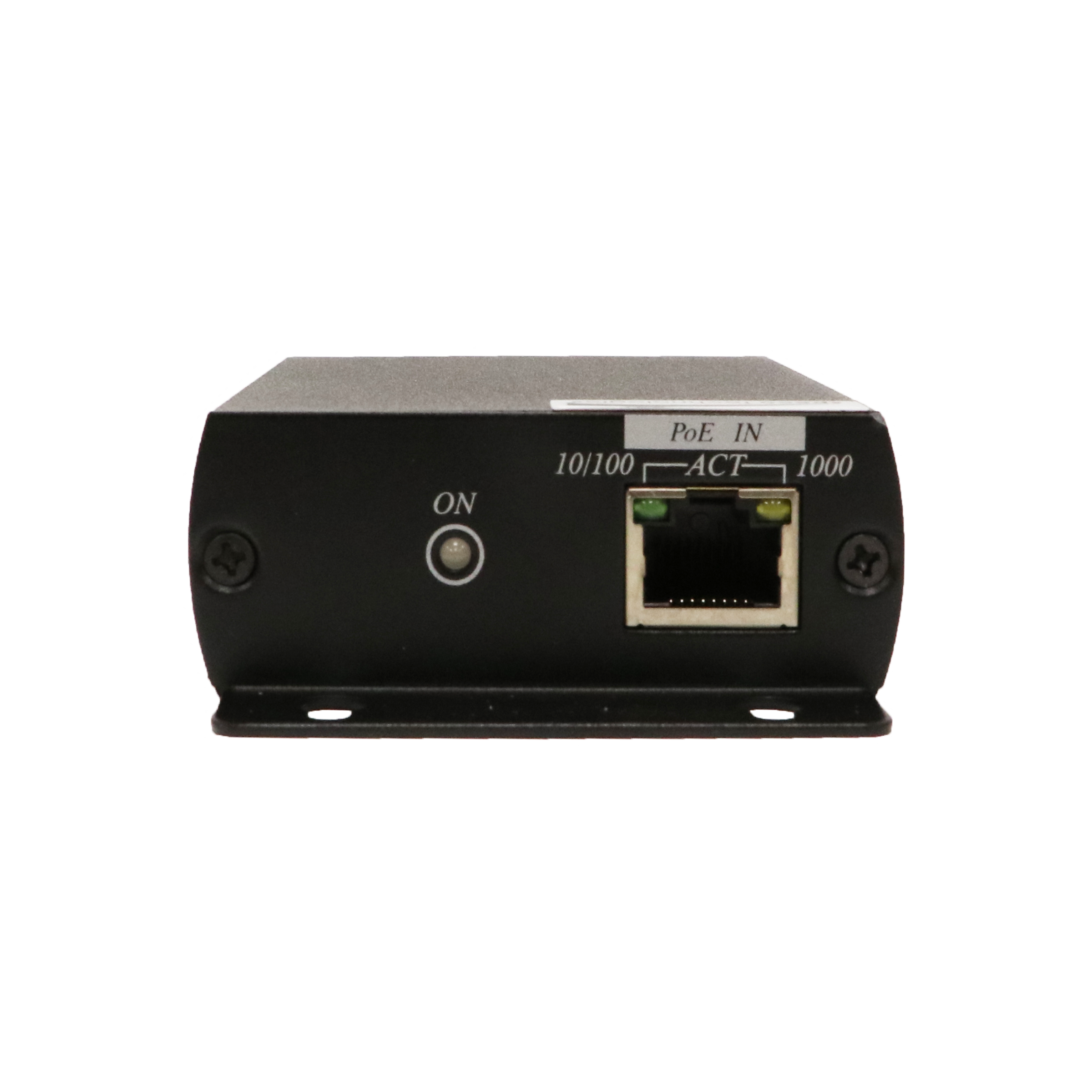

| LED Indication | Power: Green Data link: Yellow |
| PoE | IEEE 802.3af Standard, 48V, 12.95W |
| Power Consumption | Non-load 1.1W (23mA), 1.44W (30mA) @ 10Mbps, 1.92W (40mA) @ 100/1000Mbps |
| Temperature | Operation: 32° - 131°F Storage: -4° - 185°F Humidity: up to 95% |
| Unit Dimensions | 2.6" (L) x 4.3" (W) x 1" (H) |
| Weight | .4 lbs |
