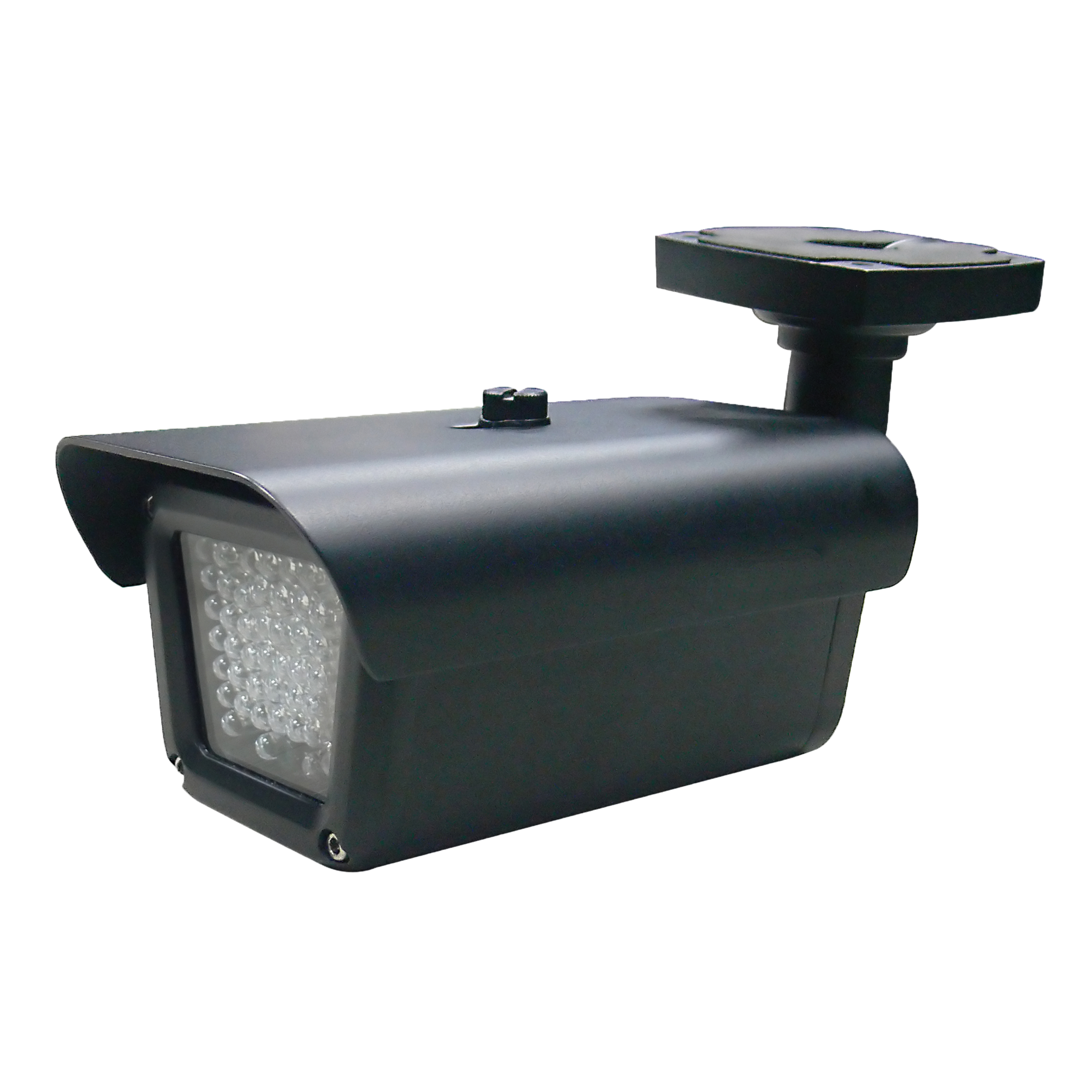

Speco - IR60 - IR Illuminator – 60 degree 180 feet (55 IRs) Dual Voltage
Part number:
Price:
Product Overview
• 60° field of illumination • IR range up 180 ft. in near total darkness and depending on scene reflection • 55 powerful infrared LEDs • Compatible with any BW or IR sensitive color CCD camera • CDS sensor activates IR LEDs only as needed • Low power consumption • Weather resistant operation • IP66 compliant • 1 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines ***The junction is required when using the pole mount or corner mount accessories.
Key Configuration
Model: IR60
Installation Notes
3.54” (W) x 3.41” (H) x 7.91” (L)
| Full Specifications | |
| Field of Illumination | 60° |
| IR Range | up to 180 ft |
| LEDs | 55 powerful infrared LEDs |
| Compatibility | Compatible with any BW or IR sensitive color CCD camera |
| Sensor | CDS sensor activates IR LEDs only as needed |
| Power Consumption | Low |
| Weather Resistance | Weather resistant operation |
| IP Rating | IP66 compliant |
| Warranty | 1 year warranty |
| Number of IR LEDs | 55 |
| LED Wavelength | 850nm |
| Lux Level | 10 lux |
| Operating Temperature | -22° F ‒ 140° F |
| Storage Temperature | -22° F ‒ 140° F |
| Power Supply | 12VDC, 410mA / 24VAC, 320mA (power supply not included) |
