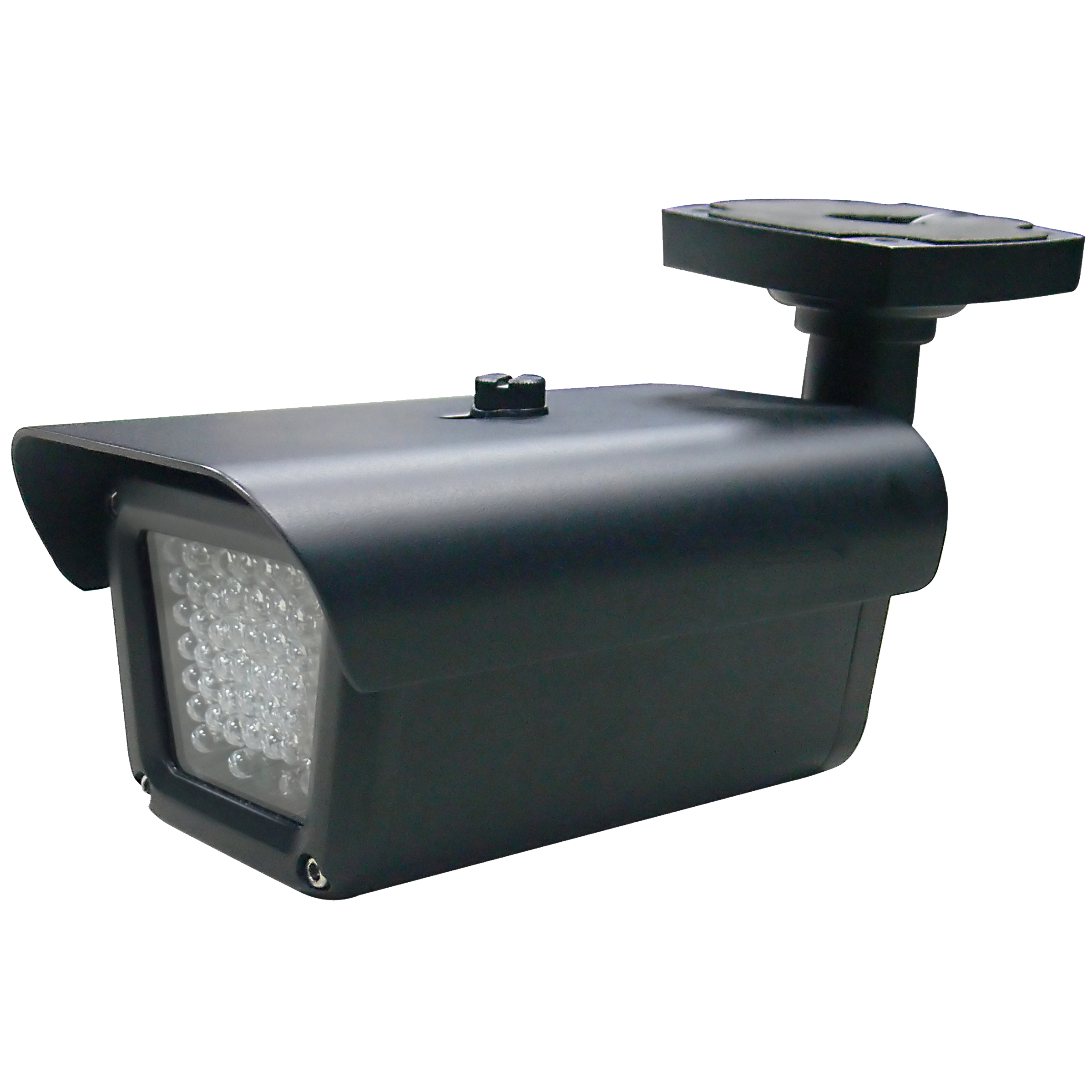

Speco - IR80 - IR Illuminator – 80 degree 147 feet (55 IRs) Dual Voltage

Part number:
Price:

Product Overview

• 80° field of illumination • IR range up 147 ft. in near total darkness and depending on scene reflection • 55 powerful infrared LEDs • Compatible with any BW or IR sensitive color CCD camera • CDS sensor activates IR LEDs only as needed • Low power consumption • Weather resistant operation • IP66 compliant • 1 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines



Key Configuration

Model: IR80



Installation Notes

3.54” (W) x 3.41” (H) x 7.91” (L)

Full Specifications
Field of illumination80°
IR rangeup to 147 ft.
LEDs55 powerful infrared LEDs
Compatibilityany BW or IR sensitive color CCD camera
SensorCDS sensor activates IR LEDs as needed
Power consumptionLow
Weather resistanceWeather resistant operation
IP ratingIP66 compliant
Warranty1 year
ComplianceNDAA Section 889 Part B Guidelines
Number of IR LEDs55
LED Wavelength850nm
Lux Level10 lux
Operating Temperature-22° F ‒ 140° F
Storage Temperature-22° F ‒ 140° F
Power Supply12VDC, 410mA / 24VAC, 320mA (power supply not included)
HousingAluminum
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
