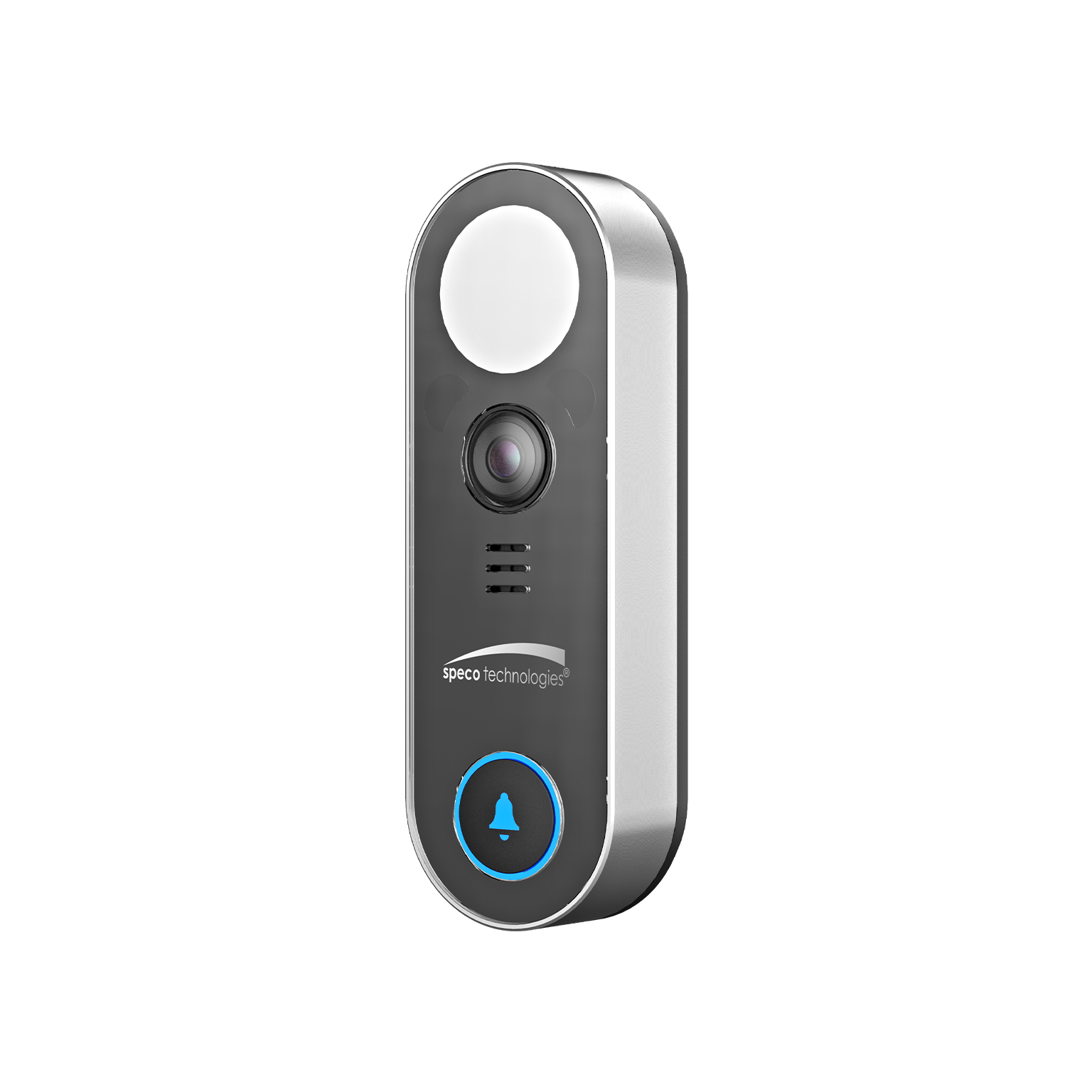

Speco - O4DB1 - Wi-Fi/Video Doorbell with Face Detection
Part number:
Price:
Product Overview
Now Integrated with Immix 2.3mm fixed lens, black and silver housing
Key Configuration
Model: O4DB1
Key Features
- • Max resolution: 4MP (2048×2048).
- • Noise cancellation and echo suppression.
- • White light distance and 2–3ft IR distance.
- • 2.4G Hz/5GHz dual band Wi-Fi.
- • Supports wired mechanical chime.
Installation Notes
149.9mm x 50.3mm x 28.6mm
| Full Specifications | |
| Max resolution | 4MP (2048×2048) |
| Noise cancellation | Yes |
| Echo suppression | Yes |
| White light distance | Up to 2–3 ft |
| IR distance | Up to 2–3 ft |
| Wi-Fi band | 2.4G Hz/5GHz |
| Micro SD card slot | Up to 256GB |
| IP Rating | IP66 |
| Warranty | 5 years |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Image Size | 2048 x 2048 |
| Electronic Shutter | 1s ~ 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | 0.005lux @F2.2, AGC ON; Olux with IR |
| Lens | 2.3mm @F2.2, Vertical FOV: 97.7°, Horizontal FOV: 97.7°, Diagonal FOV: 146.5° |
| Network Specifications | |
| Network | 100M RJ45 |
| Audio | Built-in MIC x 1, built-in speaker x 1 |
| User Count | Supports multiple users (up to 20 users) |
| Video Specifications | |
| Main Stream | 4MP(2048 x 2048), 2MP (1440 x 1440), 1080P(1920 x 1080), 960 x 960, 720P(1280 x 720), 480 x 480, D1, CIF. |
| Sub Stream | 60Hz: D1/480 x 480/CIF(1-30fps), 50Hz: D1/480 x 480/CIF(1-25fps) |
| Third Stream | 60Hz: D1/480 x 480/CIF(1-30fps), 50Hz: D1/480 x 480/CIF(1-25fps) |
| Compression | H.265/H.264/H.264-MPEG |
| System Specifications | |
| Alarm Triggers | Motion, sensor, analytics |
| Alarm Events | MicroSD recording, FTP upload |
| Analytics | Face detection, face capture, Tamper Detection |
| Operating & Unit Specifications | |
| Power | DC 12V-24V/DC12V-V power supply; AC 16V-24V; 5V/1.5V (USB-C) power supply |
| PoE Power Supply | Not supported |
| Power Consumption | < 5W |
| Working Environment | -30°C-50°C, Humidity: less than 95% (non-condensing) |
| Unit Dimensions | 149.9mm x 50.3mm x 28.6mm |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, FireFox |
| Mobile | Speco Blue App |
| Client | Speco Blue VMS |
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
File
Quick Start Guide
5.8mb
File
User Manual
2.3mb
