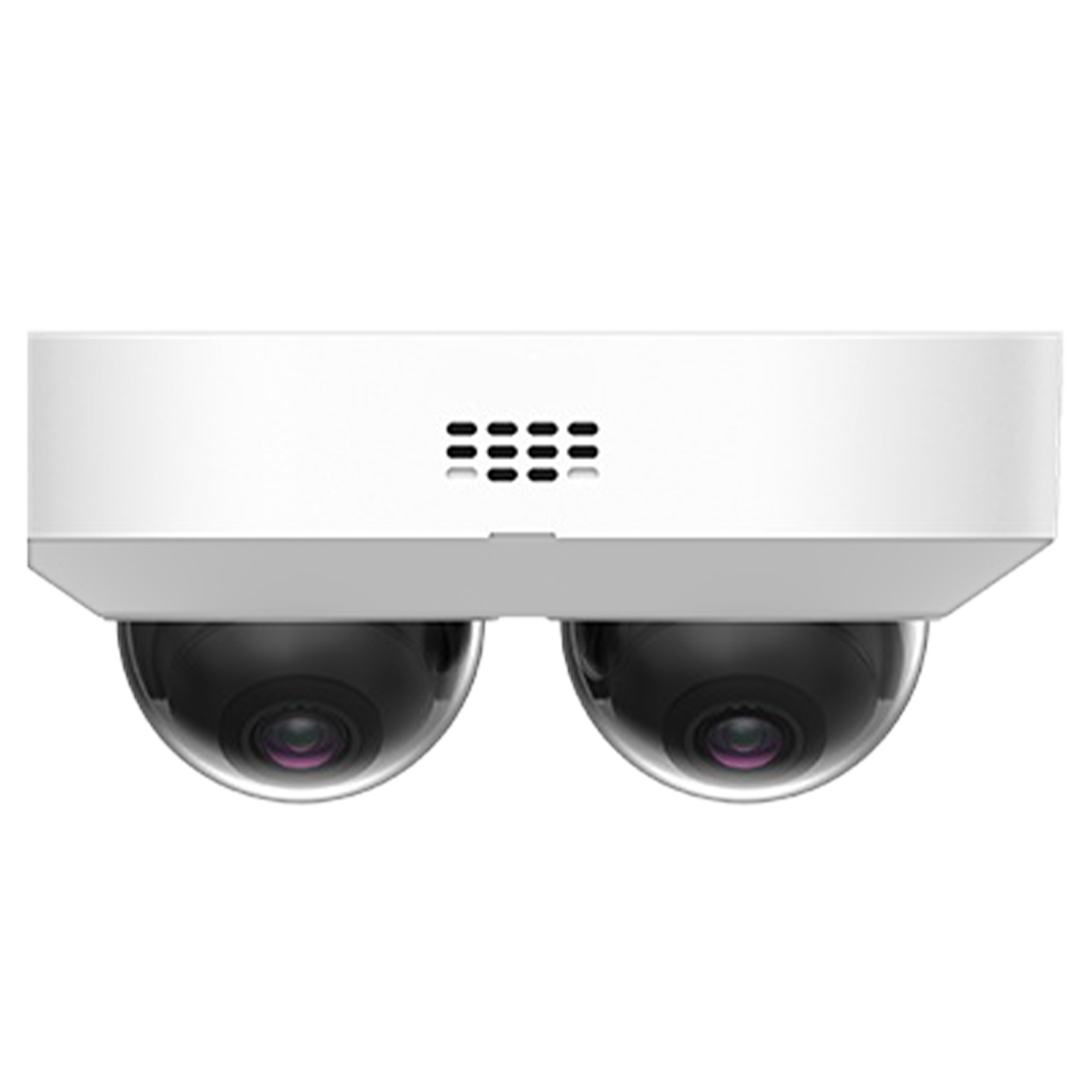

Speco - O4FDMS1 - 4MP x2 Dual Sensor Dome Camera with Advanced Analytics
Part number:
Price:
Product Overview

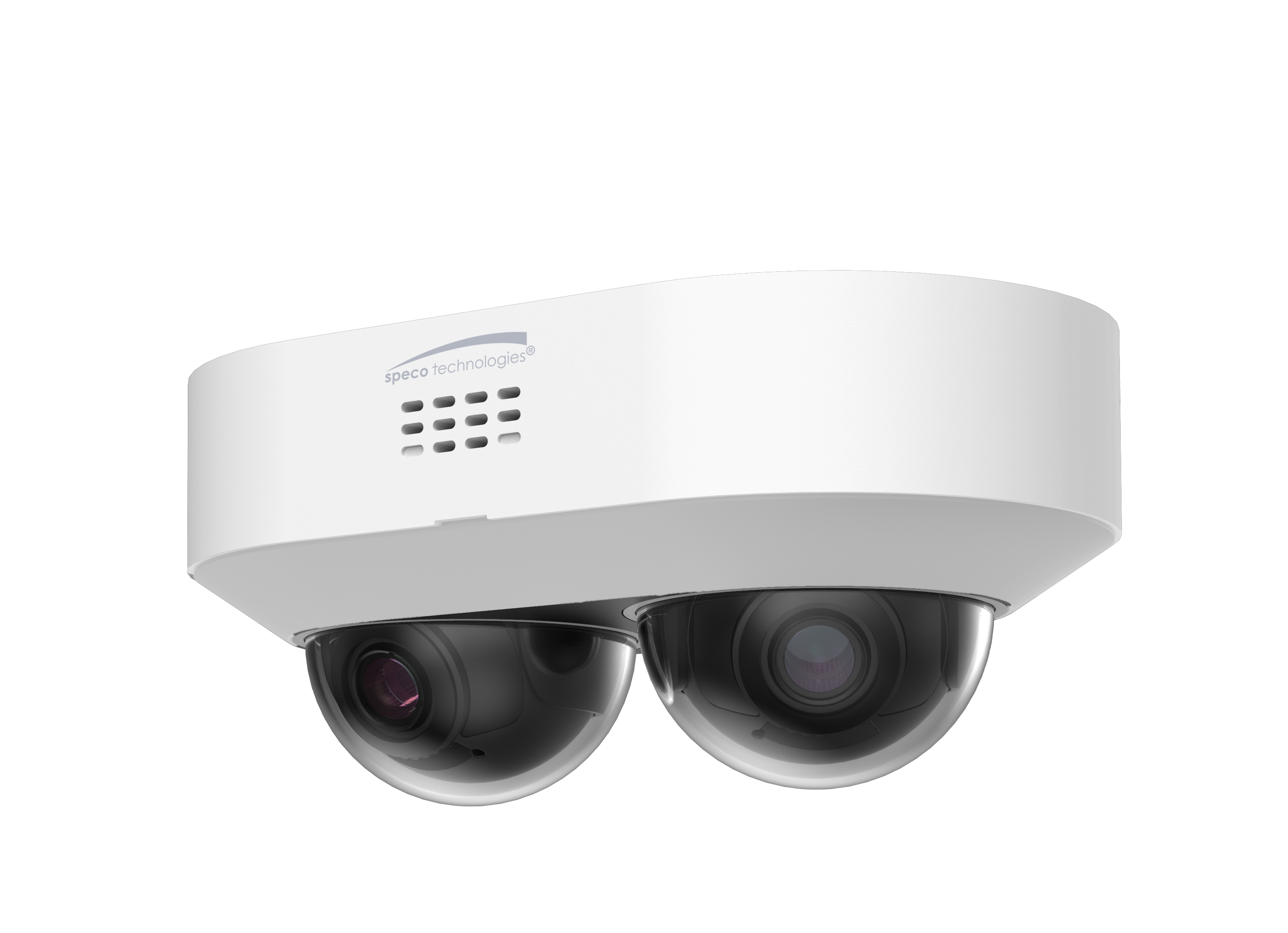

Captures up to 4MP (4MP x 2)@ 30fps, Built-in standard PoE (IEEE 802.3af), Smart IR with range up to 98 ft., Micro SD card slot up to 512GB, IP66 Compliant, IK10 Compliant, Detects faces, people, and vehicles to reduce false motion alerts, Object/Intrusion detection and line crossing analytics. 2.8mm x 2 fixed lens, white housing
Key Configuration
Model: O4FDMS1
Key Features
- • Smart IR with range up to 98 ft. (depending on scene reflection).
- • IP66 Compliant, weather resistant.
- • IK10 Compliant, vandal resistant.
Installation Notes
6.5" (L) x 3.8" (W) x 2.8" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" × 2 CMOS |
| Maximum Resolution | 2688 x 1520 x 2 |
| Minimum Illumination | Color: 0.05Lux @ (F1.6 AGC ON); B/W: 0.05Lux @(F1.6 AGC ON); 0 Lux with IR |
| Field of View (H) | 101° (H) - 55° (V) - 122° (D) |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | WDR Support |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1/3 sec. ~ 1/100000 sec. |
| DNR | 3D DNR |
| Video Specifications | |
| Main Stream | 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 480 x 240 @ 30fps |
| Sub Stream | 1280 x 720, 640 x 480, 640 x 360, 480 x 240 |
| Third Stream | 640 x 480, 640 x 360, 480 x 240 |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (128Kbps ~ 16Mbps) |
| Multiple Streaming | 3 streams |
| Interfaces | |
| Ethernet | 10/100 Mbps RJ45 |
| Power | DC jack |
| Microphone Input | 3.5mm and built-in 2-CH mic |
| Audio Output | 3.5mm and built-in speaker |
| Card Slot | MicroSD, up to 512GB (not included) |
| Alarm | 2-CH alarm input; 2-CH alarm output |
| Reset | Yes |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio In/Out | 2 way audio capable (additional equipment required) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, and people intrusion, heat map, target counting, face detection and face capture |
| Alarm Triggers | Motion detection, Analytics, video tempering detection, SD card error, IP conflict, cable disconnection |
| Alarm Events | MicroSD recording, email upload |
| Image Settings | Region of interest, Saturation, Brightness, Chroma, Contrast Noise reduction |
| Network Specifications | |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Windows (Internet Explorer 8 and Up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue (iPhone* and Android*), SecureGuard Cloud |
| Other Viewing Platforms | Apple TV*, Amazon Fire TV* |
| Operating & Unit Specifications | |
| Power Consumption | <9.5W (max) |
| Power Output | DC12V @ 100mA. |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 6.5" (L) x 3.8" (W) x 2.8" (H) |
| Unit Weight | 1.70 lbs. |
| Certifications | FCC, RoHS |
| D.O.R.I. | |
| Detect | 191 ft. |
| Observe | 76 ft. |
| Recognize | 38 ft. |
| Identify | 19 ft. |
Name
Description
Size
Downloads
File
Specification Sheet
1mb

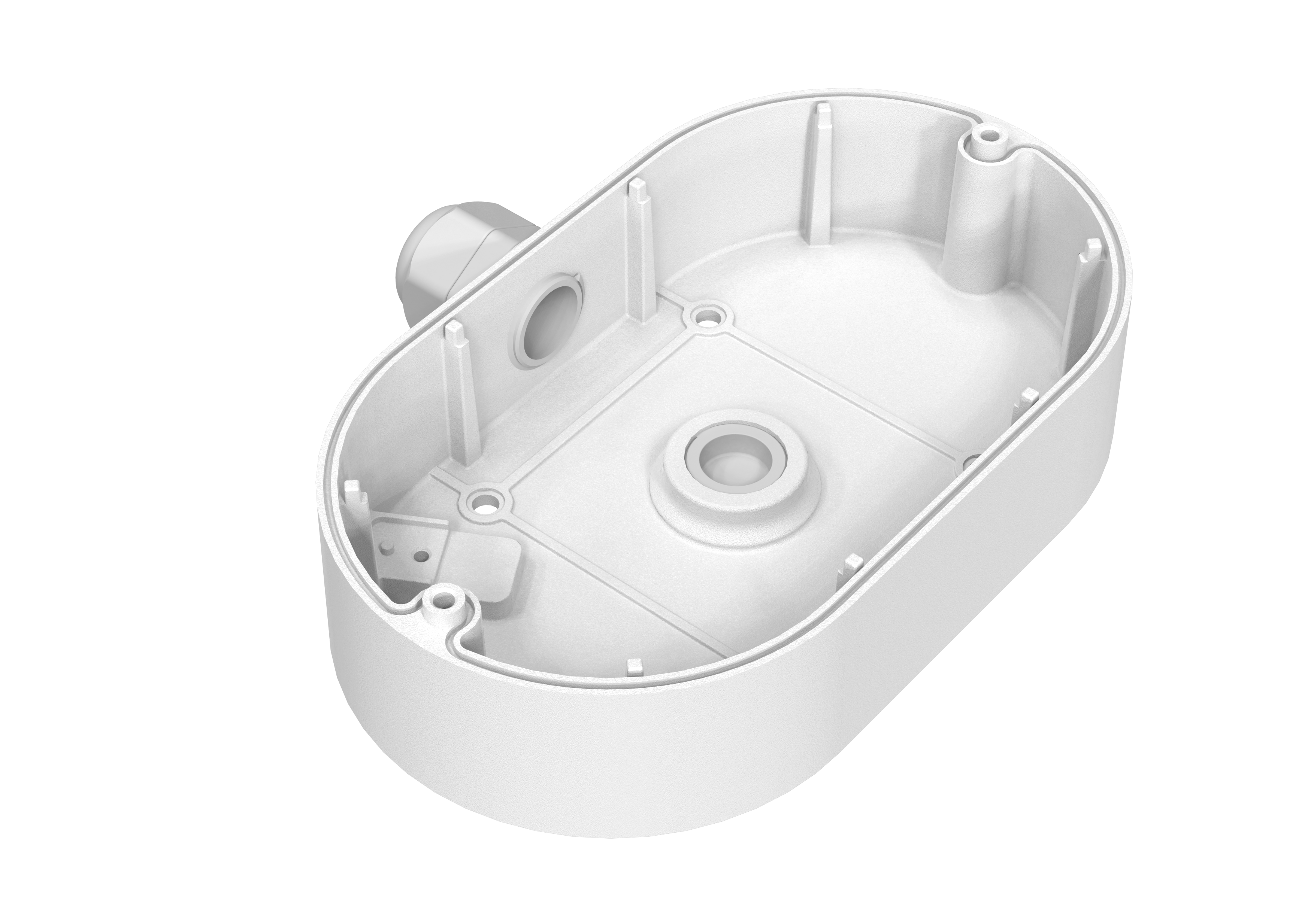

accessories
