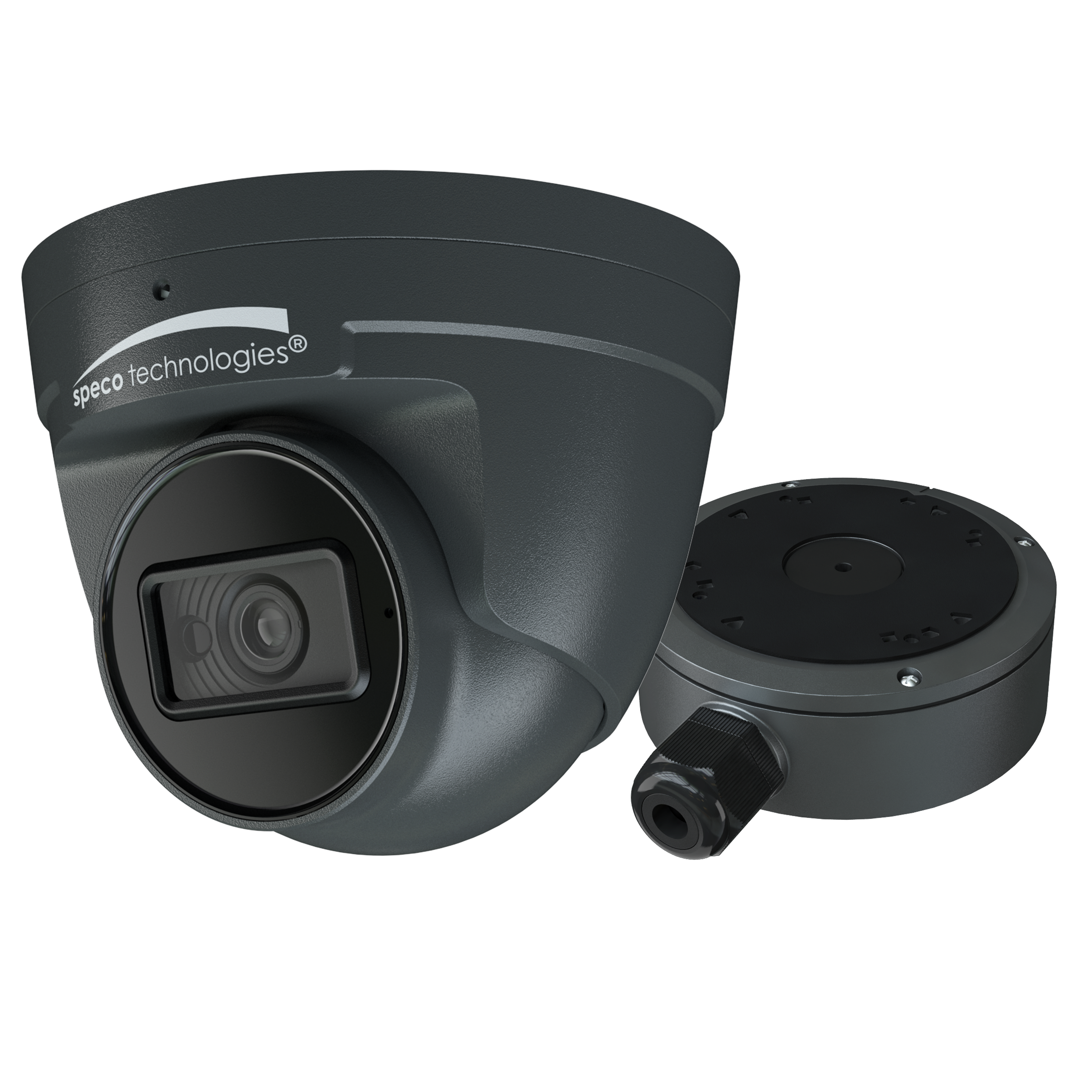

Speco - O4FT2 - 4MP Flexible Intensifier® IP Turret Camera with Advanced Analytics, NDAA
Part number:
Price:
Product Overview
Flexible Intensifier® Technology to fit any lighting application. Captures up to 4MP @ 30fps real time, captures color in extreme low light conditions and monochrome in absolute darkness. IR range: up to 98’ (depending on scene reflection). True WDR operation. Micro SD card slot up to 256GB (card not included). ONVIF Profile G/S/T Compliant. IP67 Weather Resistance. Built-in standard PoE (IEEE 802.3af). Line crossing with counting/Intrusion detection. Face/Person/Vehicle detection.
Key Configuration
Model: O4FT2 | 2.8mm fixed lens | dark gray housing
Key Features
- • 5 year warranty.
- • NDAA Compliant.
- • Junction box included.
Installation Notes
4.2” (φ) x 3.75” (H)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/1.8”CMOS |
| Maximum Resolution | 2560 × 1440 |
| Field of View | Horizontal: 111.3°; Vertical: 78.9°; Diagonal: 118.4° |
| Minimum Illumination | 0.0016 lux@F1.6, AGC ON; 0 lux with IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1s ~ 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| Video Specifications | |
| Main Resolution | 2560×1440, 2304×1296, 1920x1080, 1280x720, D1, CIF, 480×240 @30fps |
| Substream | 1280x720, D1, CIF, 480×240 @30fps |
| Third Stream | D1, CIF, 480×240 @30fps |
| Compression | Main stream: H.265+ / H.265 / H.264+ / H.264; Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Exposure, Gain, Corridor Pattern, Image flip/mirror |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio input | Built-in mic and 3.5mm input |
| Audio output | No |
| Client Specifications | |
| Web Browser Support | Google Chrome, Microsoft Edge, Internet Explorer, Apple Safari |
| PC Application | SecureGuard® VMS and SecureGuard CMS |
| Mobile | SecureGuard® Client, Speco Blue |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Audio | Built-in mic and 3.5mm input |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | No |
| Reset | Yes |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication, Watermark, and illegal login lock Max. 10 simultaneous users |
| User Access | Actual number of users may vary depending on bandwidth |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, region entrance/exiting/intrusion detection (people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection, face detection, face capture. |
| Alarm Triggers | Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Operating & Unit Specifications | |
| Power Consumption | 7.0W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit dimensions | 4.2” (φ) x 3.75” (H) |
| Unit Weight | 1.01 lbs |
| Certifications | FCC |
