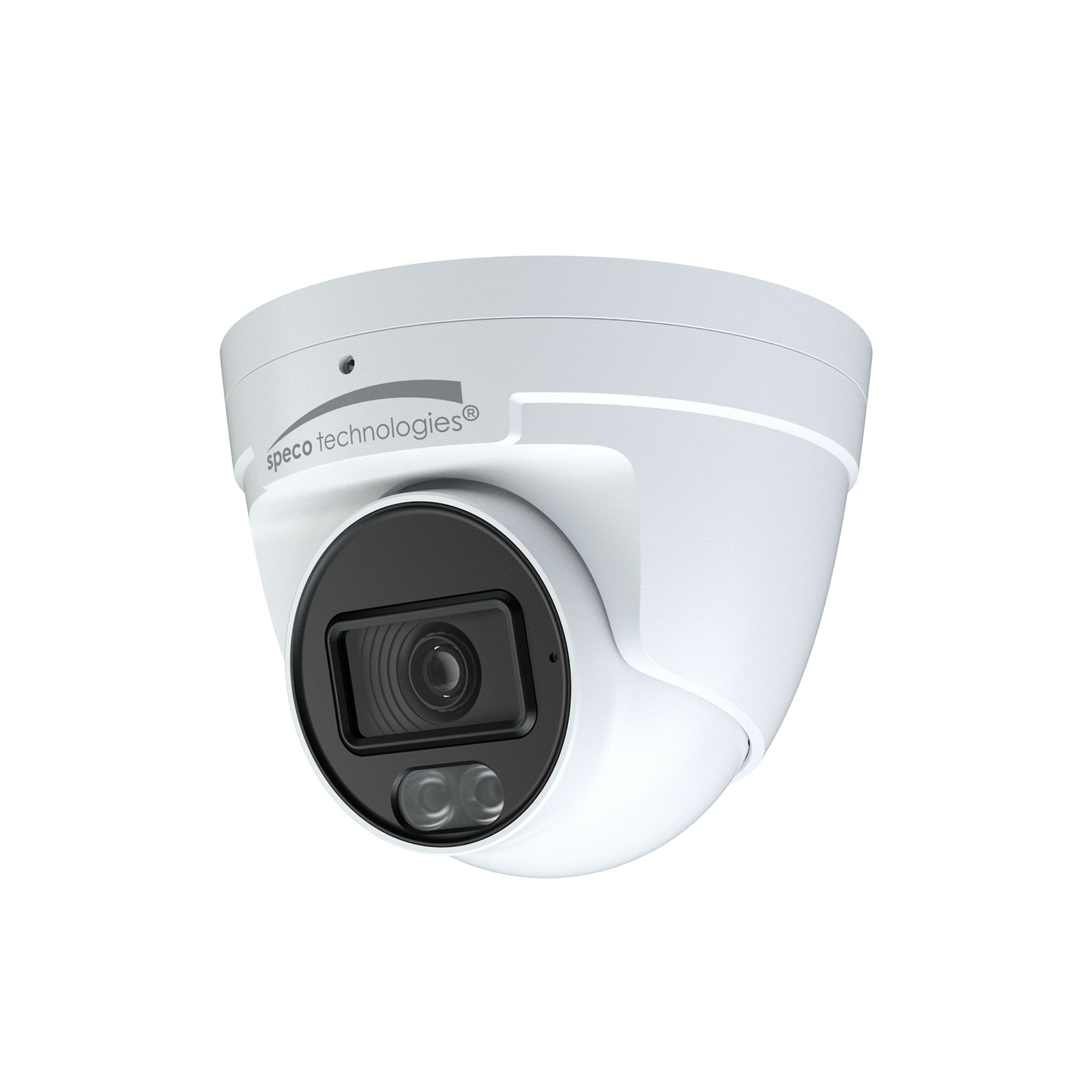

Speco - O4KT1 - 4MP IP Turret Camera with Analytics and White Light Intensifier
Part number:
Price:
Product Overview
Supports up to 4MP @ 20fps with Full Color Capture in Day & Night using a White LED. It is IP67 compliant and weather-resistant with a built-in standard PoE (IEEE 802.3af). 4MP IP Turret Camera With Intelligent Dual- Light Illumination 2.8mm fixed lens, white housing
Key Configuration
Model: O4KT1 | 2.8mm fixed lens | White housing
Key Features
- • Supports up to 4MP @ 20fps.
- • Full Color Capture in Day & Night with White LED.
- • H.265/H.264 compression supported.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
Installation Notes
4.2" (Dia.) x 3.75" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Field of View | 98° (H), 53° (V), 111°(D) |
| Minimum Illumination | 0.07 lux @ F.20, AGC ON; 0 lux with IR |
| Image Settings | Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction |
| Day/Night | Smart IR up to 100' (depending on scene reflection) |
| Compensation | DWDR, BLC, HLC |
| Electronic Shutter Speed | 1/3 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-75°, Rotation 0°-360° |
| Video Specifications | |
| Main Resolution | 2560x1440 @ 20fps |
| Sub stream Resolution | 720p (1-15fps), D1, CIF (1-30fps) |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps ~ 5Mbps) |
| Multiple Streaming | 2 streams |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 4 simultaneous users |
| Interfaces | |
| Ethernet | RJ45 Jack |
| Power | DC Jack |
| Audio In | Built-in Microphone |
| Audio Out | No |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm In/Out | No |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome*, Microsoft Edge*, Internet Explorer*, Apple Safari*, Firefox* |
| PC | Speco Blue VMS |
| Mobile | Speco Blue (iPhone* and Android*), Secureguard* Cloud |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Alert Triggers | Motion, Detection Events, SD card error |
| Analytics | Motion Detection, Line Crossing, Region Intrusion, Human Detection |
| D.O.R.I. Distance | |
| Lens | 2.8mm |
| Detect | 190ft (58m) |
| Observe | 76ft (23m) |
| Recognize | 38ft (12m) |
| Identify | 19ft (6m) |
| Operating & Unit Specifications | |
| Power Consumption | 6W |
| Operating Temperature | -22°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.2" (Dia.) x 3.75" (H) |
| Unit Weights | 1.0 lb. |
| Certifications | FCC |
