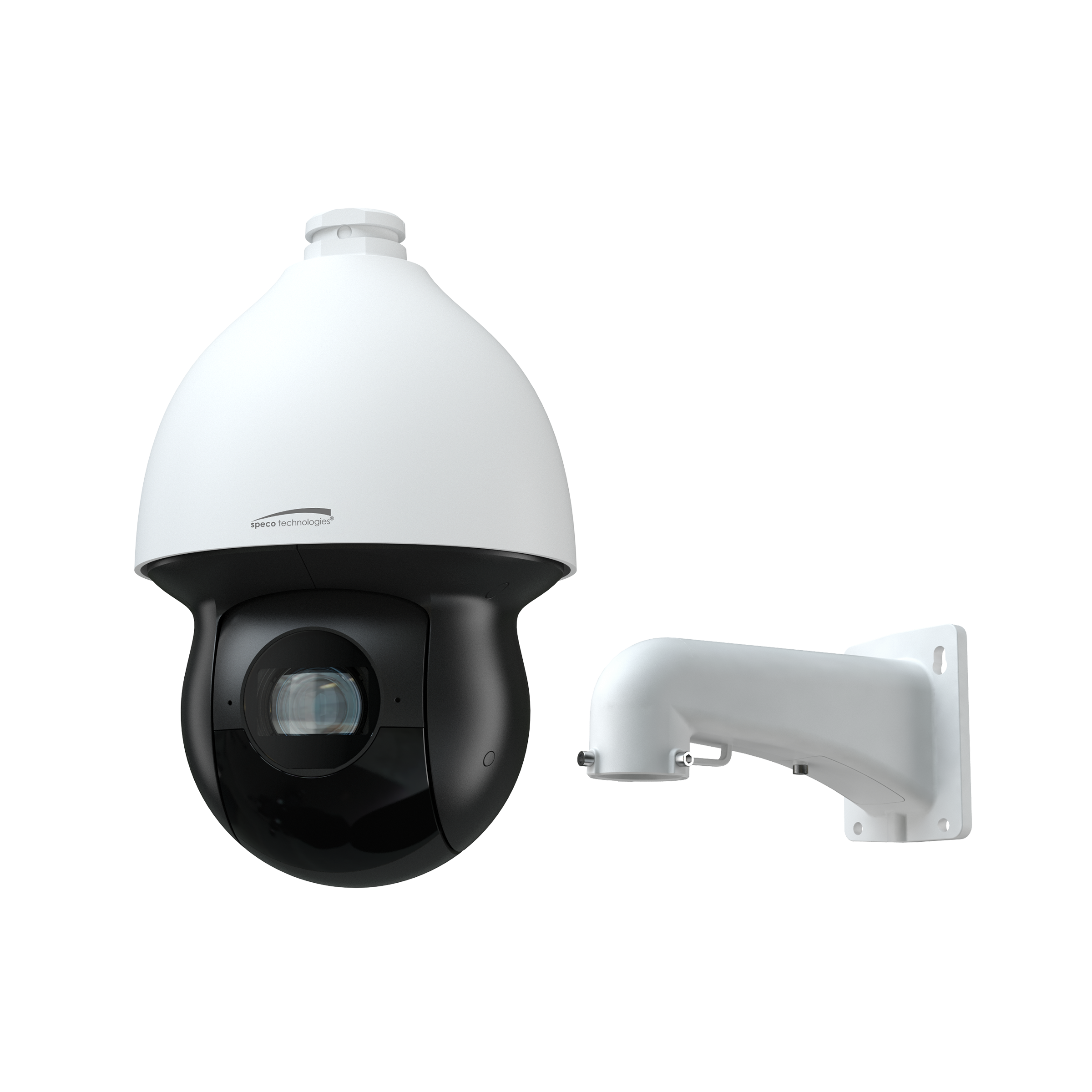

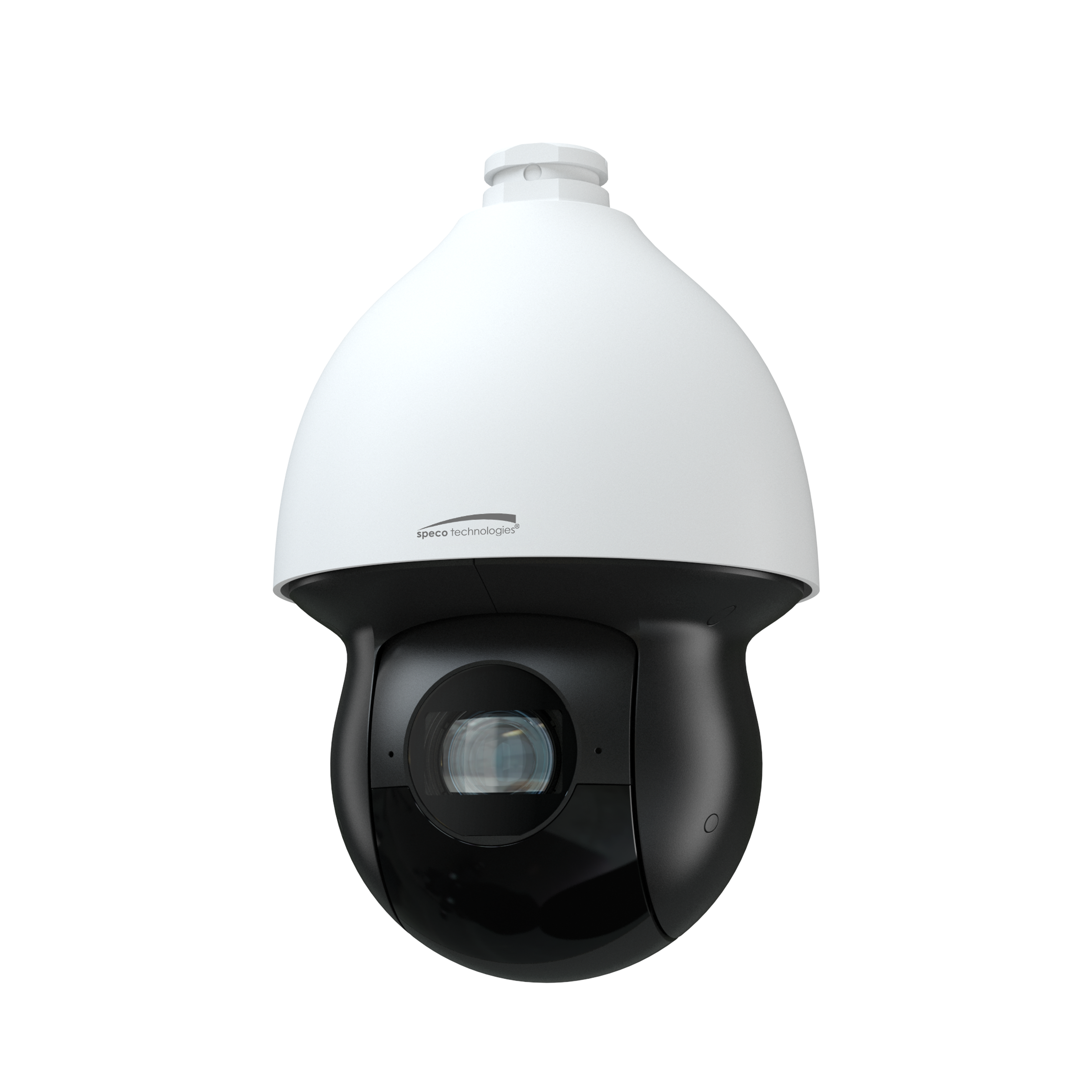

Speco - O4P25X3 - 4MP 25X IP PTZ Camera with Advanced Analytics and Smart Tracking
Part number:
Price:
Product Overview
4.8-120mm 25x optical zoom lens, white housing 4MP 25X IP PTZ Camera with Advanced Analytics and Smart Tracking Integrated with CHeKT and immix Professional Virtual Security
Key Configuration
Model: O4P25X3
Key Features

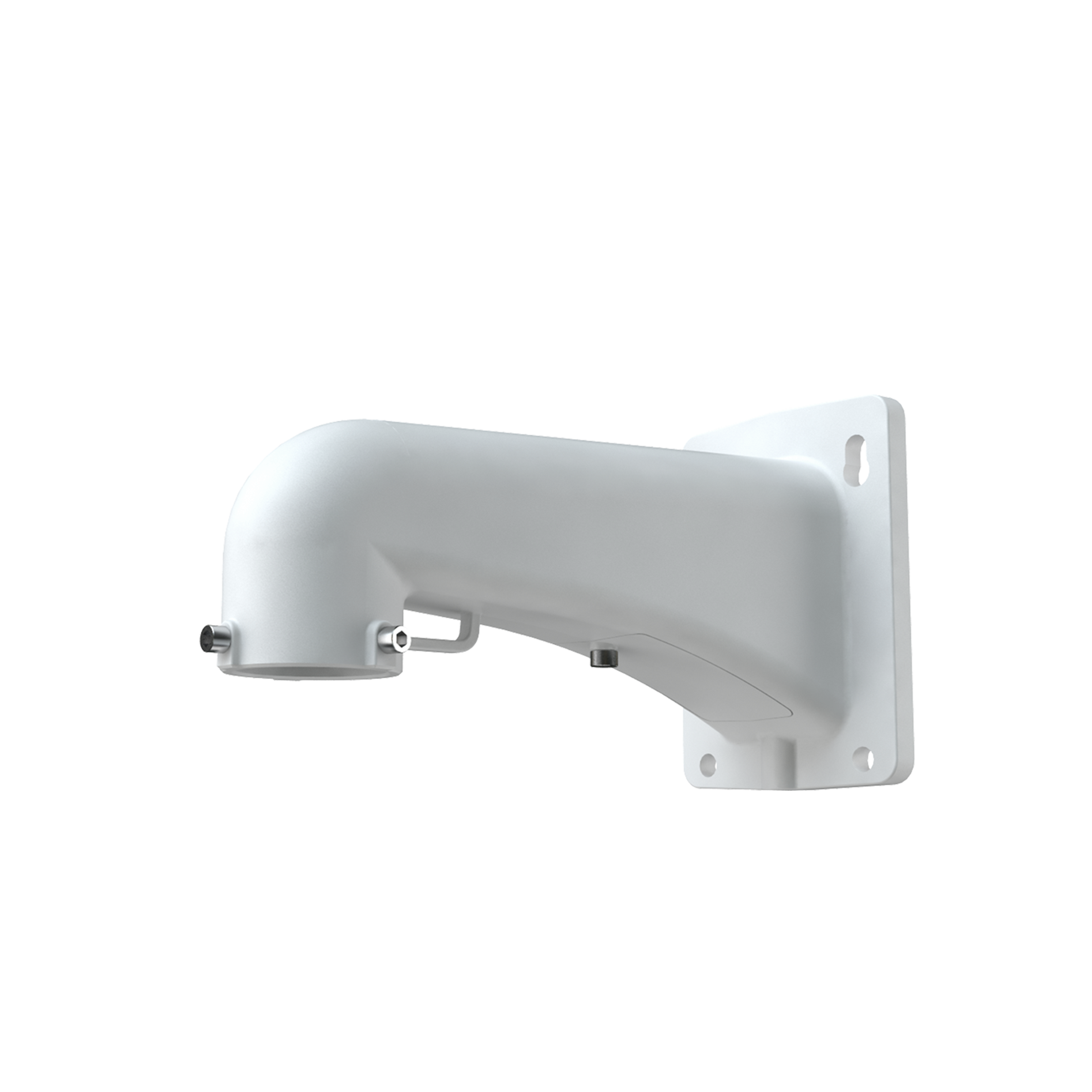

- • Wall mount included.
- • Day/night IR cut filter.
- • H.265/H.264 support.
- • IK10 vandal resistant.
- • Operates in -40 degrees.
Installation Notes
8.22" (Dia.) × 12.91" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.7" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 |
| Minimum Illumination | 0.01 lux @ F1.65, AGC ON; 0 lux with IR |
| Field of View | Horizontal: 55° ~ 2.4°; Vertical: 35° ~ 1.4°; Diagonal: 61.5°-2.8° |
| Image Settings | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness |
| Compensation | True WDR/BLC/HLC |
| Day/Night | Smart IR with cut filter |
| Electronic Shutter Speed | 1s ~ 1/10000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt -3°~90° |
| Interfaces | |
| Network | RJ45 jack |
| Power | AC/DC jack (24V) |
| Microphone Input | 3.5mm |
| Audio Output | 3.5mm |
| Card Slot | MicroSD, up to 256GB (card not included) |
| Alarm | 1-CH alarm input; 1-CH alarm output |
| Reset | Yes |
| RS 485 | No |
| Audio | |
| Audio Compression | G.711A/G.711U |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client (iPhone® and Android™), Speco Blue App (iPhone® and Android™) |
| Network Specifications | |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| DDNS Support | Speco DDNS (No fee) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 16 simultaneous users (Actual number of users may vary depending on bandwidth) |
| System Specifications | |
| PoE | PoE+ (IEEE 802.3at) |
| Analytics | Line crossing, Intrusion (people/motor vehicle/non-motor vehicle classification), face detection. |
| Exception Detection | Scene change, video blur detection |
| Alarm Triggers | Motion, Sensor alarm, Analytics, SD card error |
| Action Modes | Preset/Cruise/Auto Scan/Random Scan |
| Operating & Unit Specifications | |
| Power Consumption | 24W (max) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | less than 95% RH (non-condensing) |
| Unit Dimensions | 8.22" (Dia.) × 12.91" (H) |
| Unit Weight | 8.31 lbs. |
| Certifications | IP66, FCC |
| Video Specifications | |
| Main Stream Resolution | 4MP/3MP/1080P/720P (1- 30fps) |
| Sub Stream Resolution | 1080P/1280x960/720P/D1/VGA/CIF (1-30fps) |
| Third Stream | D1/CIF/480x240 (1-30fps) |
| Compression | H.265, H.264, MJPEG |
| Multiple Streaming | 3 streams |
| Dori Distance | |
| Lens | 4.8mm |
| Detect | 350ft(107m) |
| Observe | 139ft(42m) |
| Recognize | 70ft(21m) |
| Identify | 35ft(11m) |
