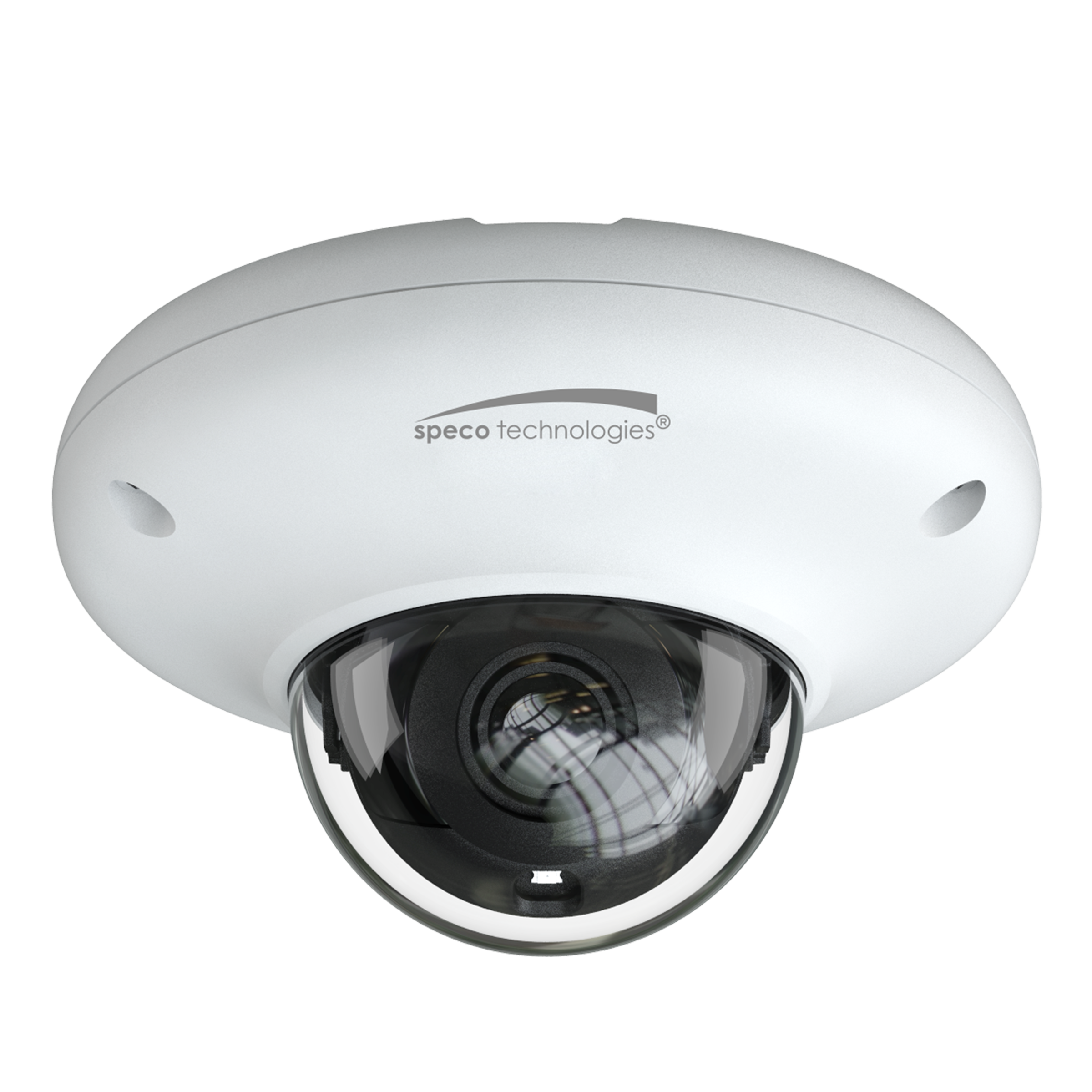

Speco - O4P4N - 4MP IP Mini-Dome Camera with Advanced Analytics
Part number:
Price:
Product Overview

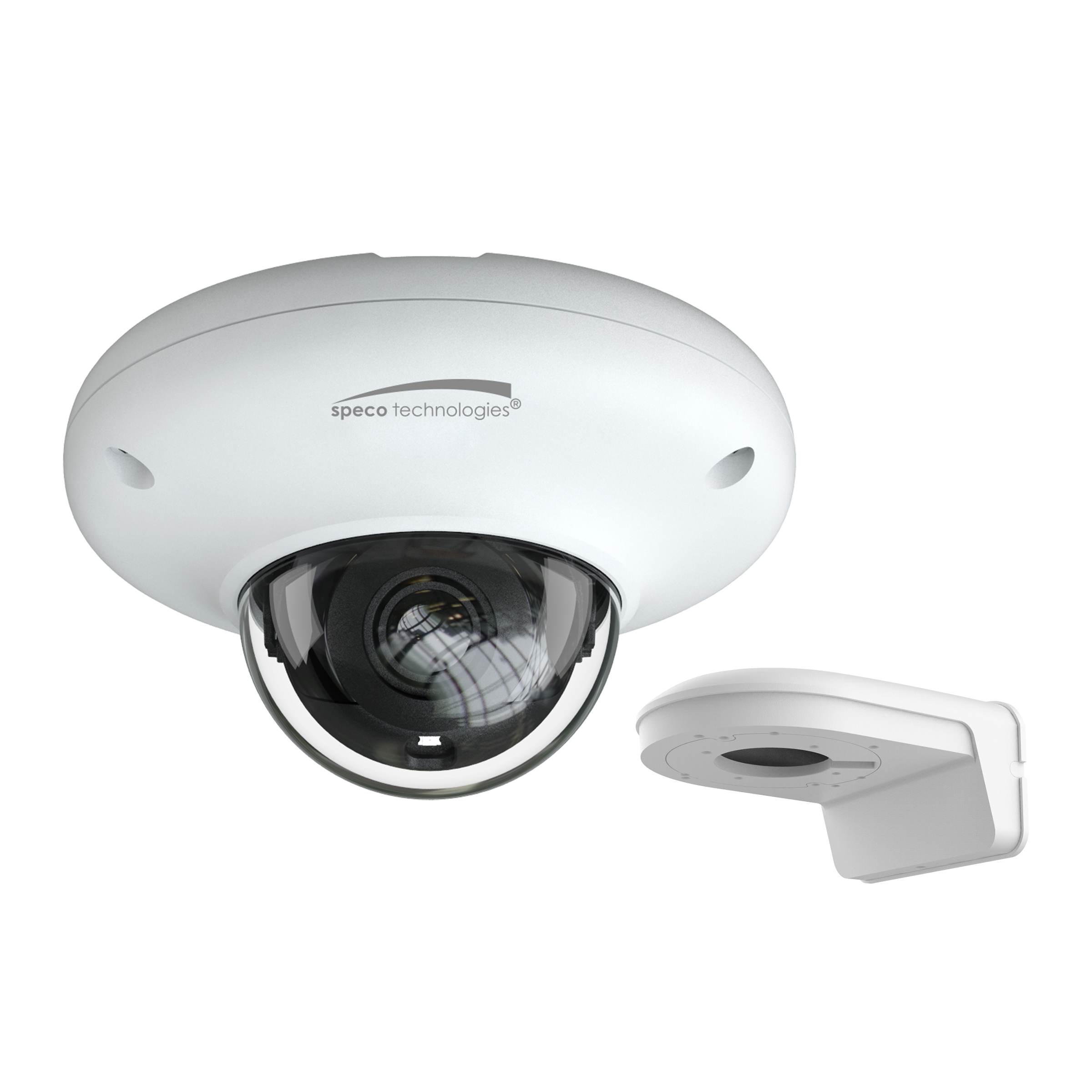

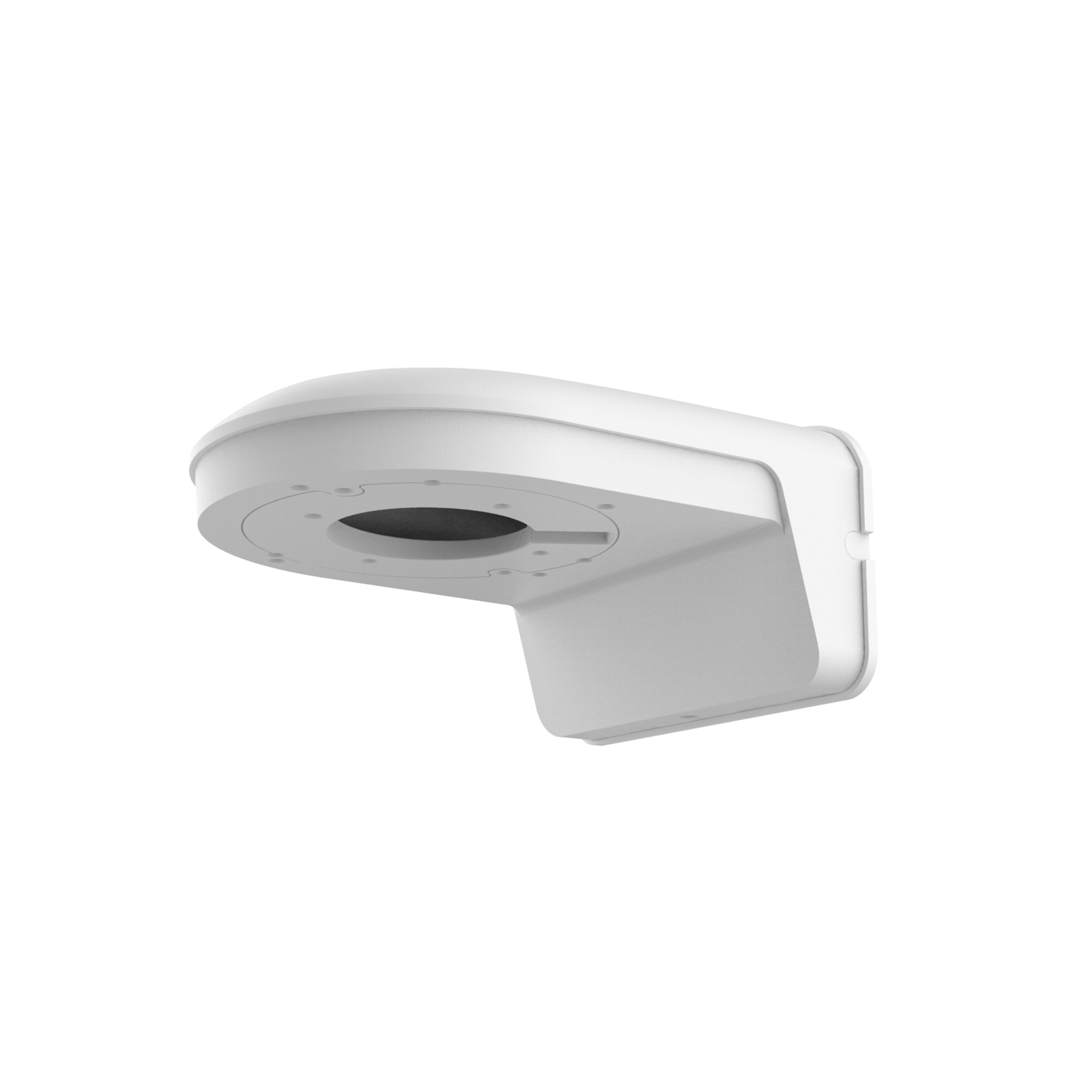

4MP IP Mini-Dome Camera with Advanced Analytics IP Integrated with CHeKT and immix 2.8mm fixed lens, white housing NDAA COMPLIANT W T Y COMPLIANT 40 ES ARRAN Beta Technologies Wall Mount Included
Key Configuration
Model: O4P4N
Key Features
- • Supports up to 4MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
4.33" ( \Phi ) x 2.28" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2592 x 1520 |
| Field of View | 100.4° (H), 68° (V) |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/30 - 1/100000 sec. |
| DNR | 3D DNR |
| Video Specifications | |
| Main Resolution | 2592x1520 / 2560x1440 / 2304x1296 / 1980x1080 / 1280x720 @ 30fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Video Settings | Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, Actual number of users may vary depending on bandwidth |
| Interfaces | |
| Ethernet | 10/100 Mbps |
| Power | DC jack |
| Microphone Input | Mono 3.5mm + built-in mic |
| Audio Out | No |
| Card Slot | MicroSD, up to 128GB (not included) |
| Alarm | No |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Edge®, Safari®, Fire Firefox®, Windows® (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue App (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, missing object, abandoned object, intrusion, vehicle, human, tampering, scene change, and face detection All listed analytics may be triggered simultaneously, except face detection |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Operating & Unit Specifications | |
| Power Consumption | < 7.5W |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.33" ( \Phi ) x 2.28" (H) |
| Unit Weight | 0.76 lbs. |
| Certifications | FCC, RoHS, UL Listed, ONVIF Profile G/M/S/T |
