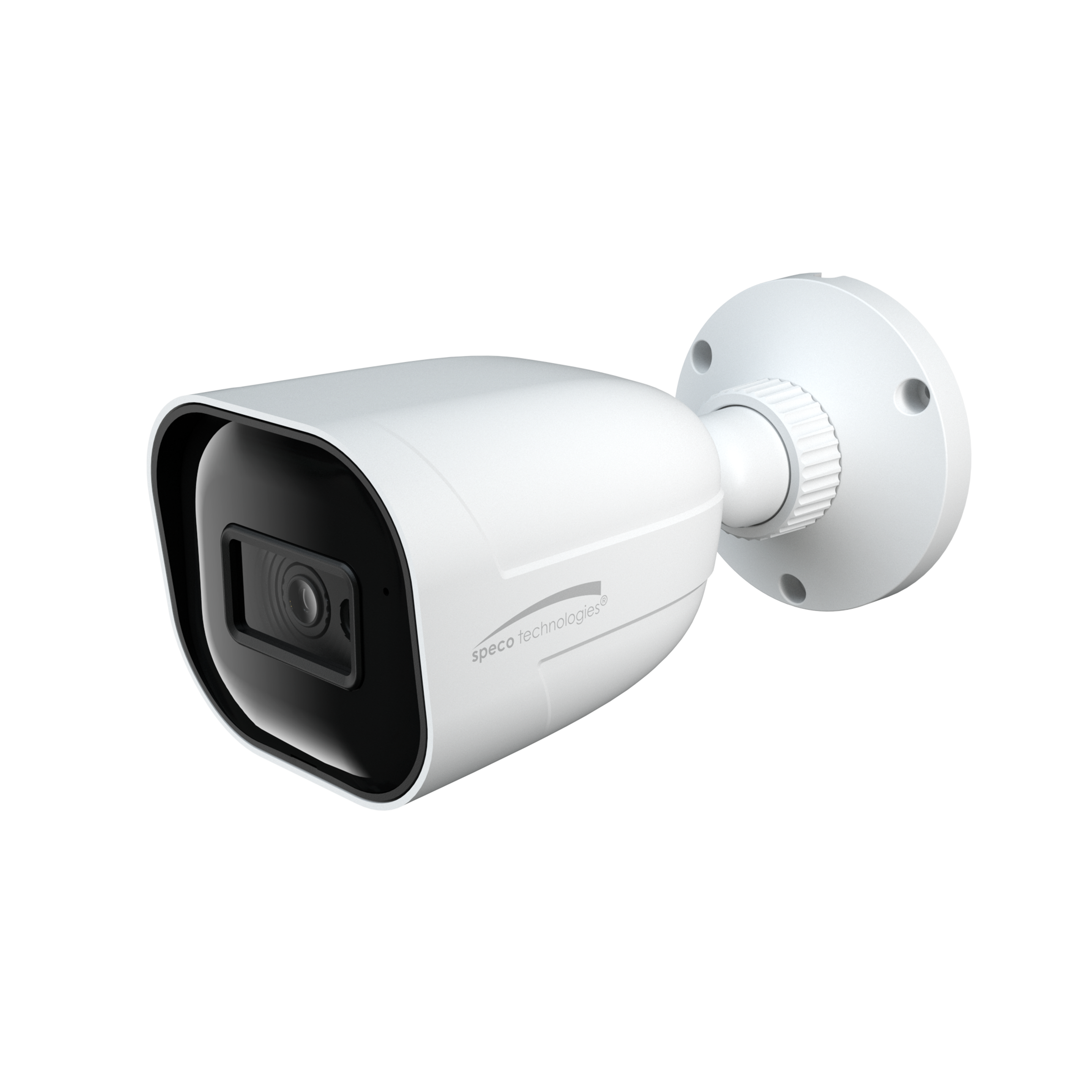

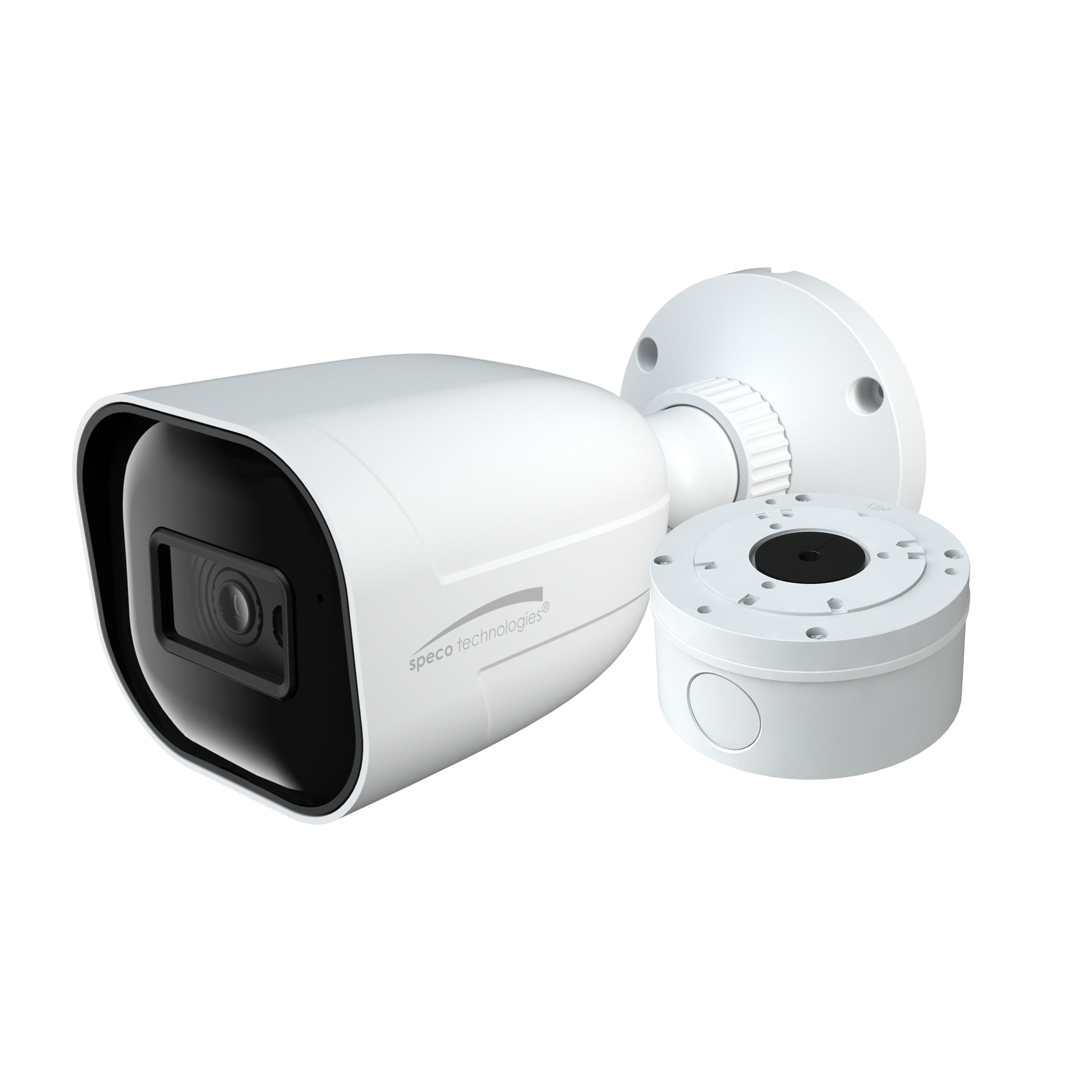

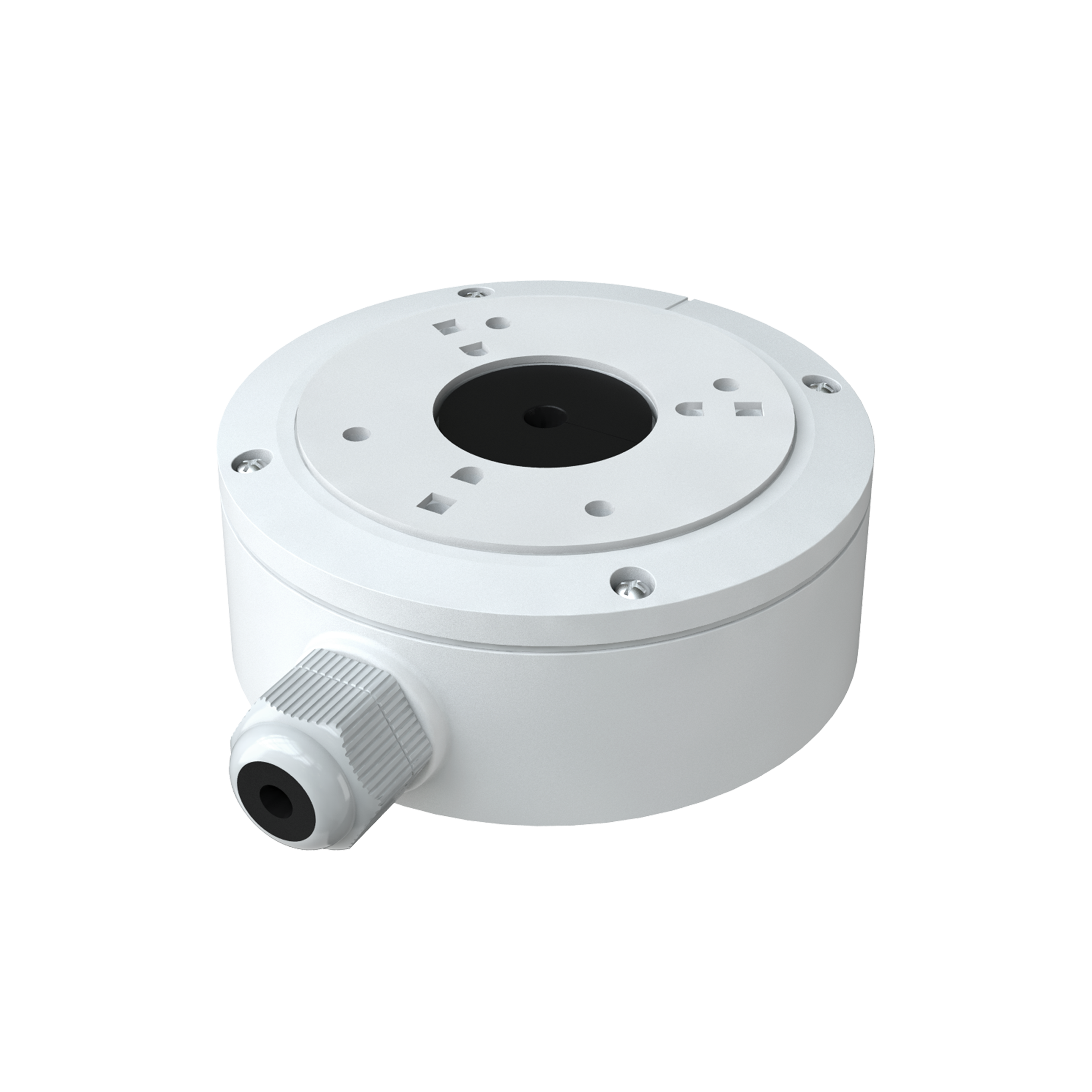

Speco - O4VB2 - 4MP H.265 IP Bullet Camera with Junction Box, NDAA Compliant
Part number:
Price:
Product Overview
Now Integrated with CHeKT - Captures up to 4MP @ 30fps - H.265/H.264 compression supported - Built-in standard PoE (IEEE 802.3af) - True Day/Night operation (IR cut filter) - IR range: Up to 100’ (depending on scene reflection) - True WDR - Micro SD card slot up to 256GB (card not included) - Conformant with ONVIF Profile G/S/T - People & vehicle detection, line crossing, object detection, region intrusion and video blurring detection - IP67 Weather Resistance - 5 year warranty - NDAA Compliant
Key Configuration
Model: O4VB2
Installation Notes
2.93" (W) x 2.93" (D) x 6.59" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Video Specifications | |
| Main Resolution | 2560x1440 / 2304x1296 /1920x1080 @ 30fps |
| Sub Stream Resolution | 720p (1-15fps), D1, CIF (1-30fps) |
| Third Stream | D1, CIF, 480x240 (1-30fps) |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps ~ 5Mbps) |
| Multiple Streaming | 3 streams |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Field of View | 94° (H), 50° (V), 115°(D) |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Image Settings | Region of interest, saturation, chroma, contrast, wide dynamic, defog, sharpen, noise reduction |
| Day/Night | Smart IR up to 100' (depending on scene reflection) |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1/2 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0°-360°, tilt 0°-80°, rotation 0°-360° |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 4 simultaneous users, Actual number of users may vary depending on bandwidth |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Internet Explorer |
| PC Application | SecureGuard® VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android®) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Detection Events | Line crossing, object detection, region intrusion, people/vehicle detection and video blurring detection |
| Alert Triggers | Motion, Detection Events, SD card error |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | < 5W |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 2.93" (W) x 2.93" (D) x 6.59" (H) |
| Unit Weight | 0.93 lb. |
| Certifications | FCC |
