Speco - O8B9M - 8MP (4K) IP Bullet Camera with Advanced Analytics, NDAA Compliant
Part number:
Price:
Product Overview

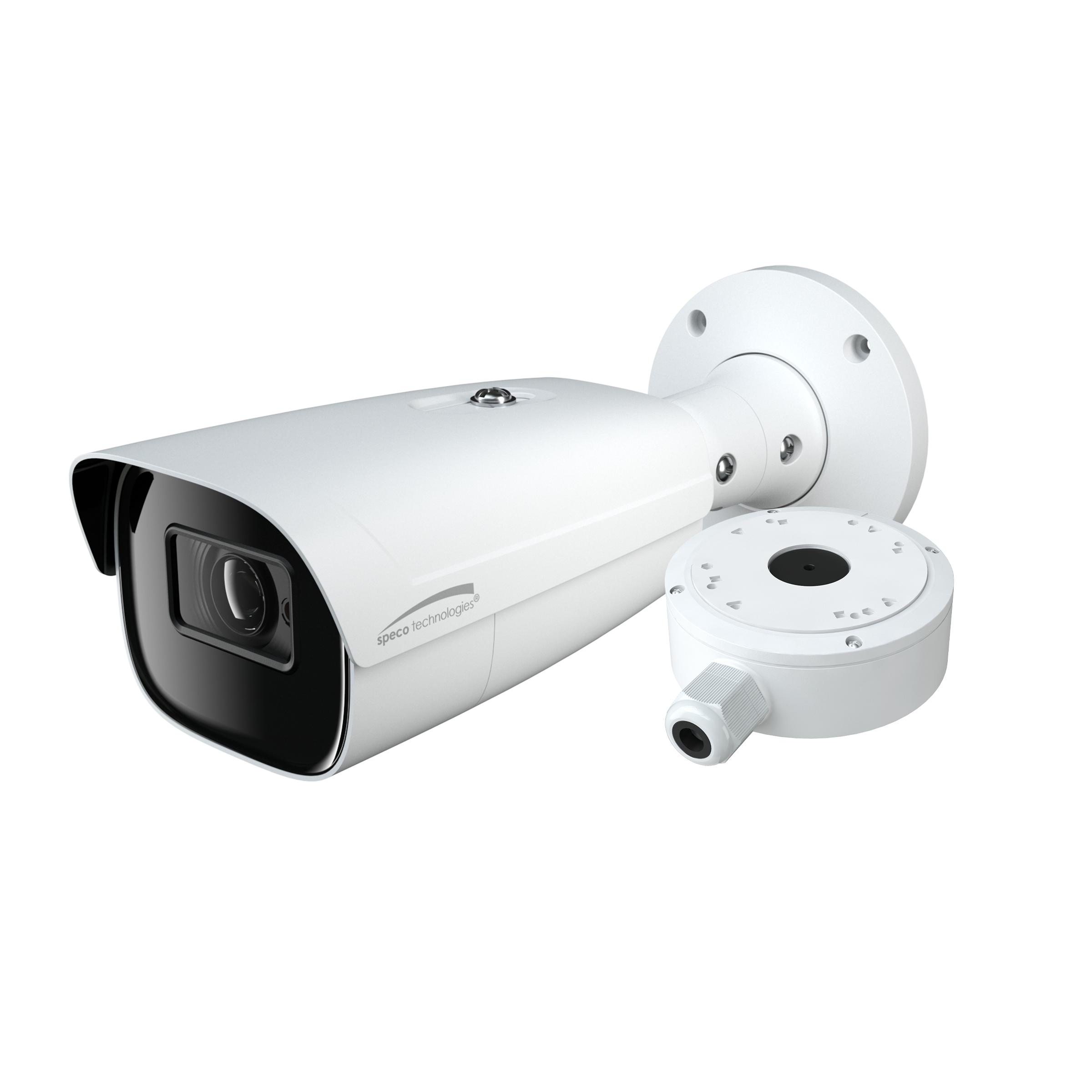

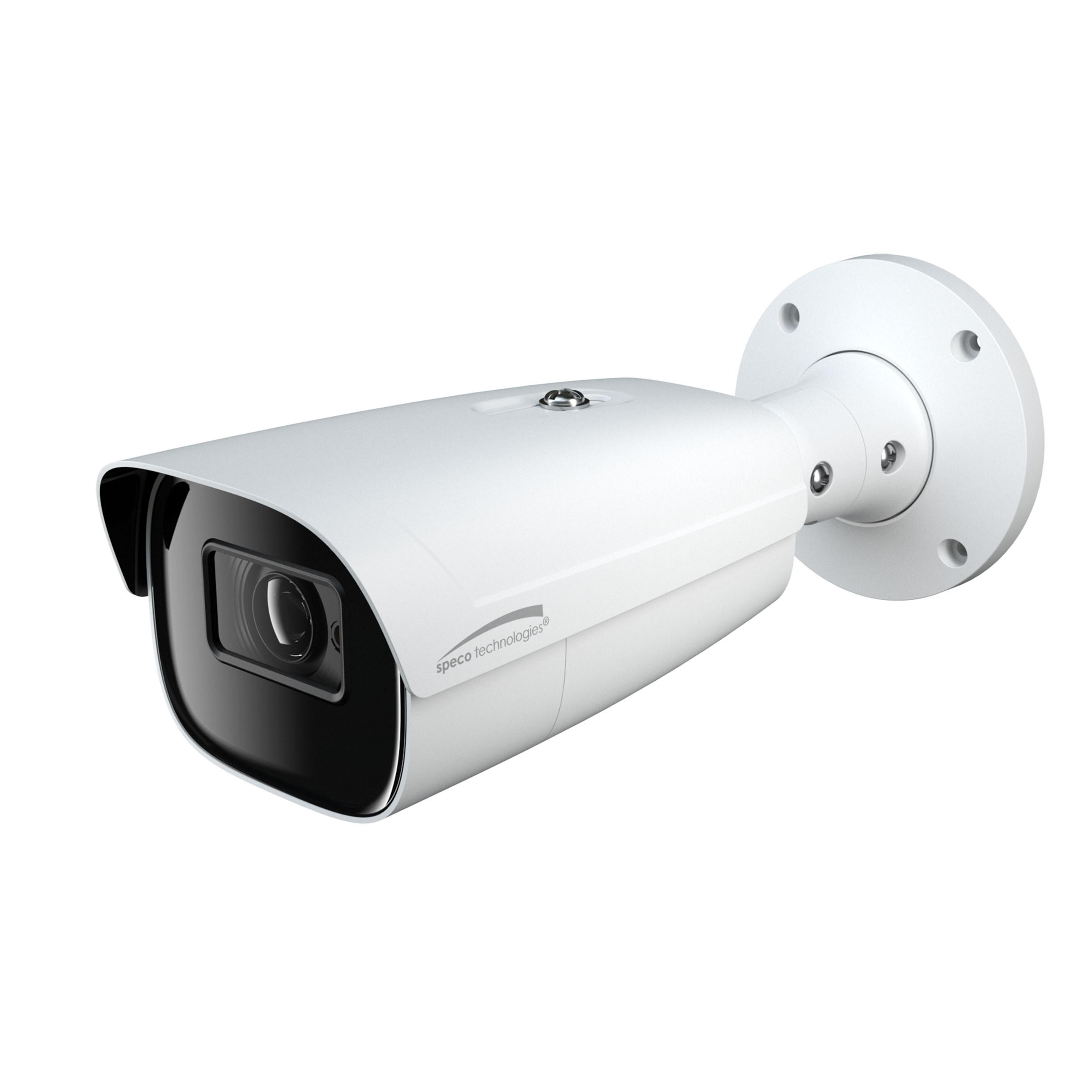

Now Integrated with CHeKT 8MP (4K) IP Bullet Camera with Advanced Analytics 2.8mm motorized lens, white housing.
Key Configuration
Model: O8B9M | 2.8-12mm motorized lens | White housing
Key Features
- • Captures up to 8MP @ 30fps.
- • Up to 4x optical zoom.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
- • IR range: up to 229’ (depending on scene reflection).
Installation Notes
3.93" (W) × 11.0" (D) × 3.5" (H); (100.3mm × 279.5mm × 88.9mm)
| Full Specifications | |
| Megapixel | 8MP |
| Housing Color | White |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 8MP |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Minimum Illumination | 0.015lux @ F1.4, AGC ON; 0 lux with IR |
| Field of View | (H): 96° - 32°; (V): 64° - 18.4°; (D): 103.8° - 36.5° |
| Image Settings | Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction, Corridor Mode (Image rotation) |
| Day/Night | Smart IR with cut filter |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1 sec. - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° - 360°, Tilt 0° - 90°, Rotation 0° - 360° |
| Video Specifications | |
| Main Resolution | 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps) |
| Sub Stream | 720P/D1/480 x 240 (1~30fps) |
| Third Stream | D1/CIF/480x240 (1~30fps) |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps - 12Mbps) |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, Actual number of users may vary depending on bandwidth |
| Interfaces | |
| Network | RJ45 jack |
| Power | DC jack |
| Microphone Input | 3.5mm |
| Audio Output | 3.5mm |
| Card Slot | MicroSD, up to 256GB (not included) |
| Video Out | CVBS output (BNC x 1) |
| Alarm | 1CH alarm input; 1CH alarm output |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Internet Explorer |
| PC Application | SecureGuard® VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| D.O.R.I. (m) | |
| Detection (25px/m) | Wide 185ft(85m), Telephoto 63ft(17m) |
| Observation (63px/m) | Wide 552ft(289m), Telephoto 136ft(58m) |
| Recognition (125px/m) | Wide 93ft(34m), Telephoto 26ft(8m) |
| Identification(250px/m) | Wide 241ft(116m), Telephoto 84ft(29m) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Perimeter Protection | Line crossing, loitering, region entrance/exiting/intrusion (human/motor vehicle/non-motor classification) |
| Target Counting | Line crossing people/motor vehicle motorcycle/bicycle |
| Exception Detection | Scene change video blur, video color cast detection, and sound detection |
| Face Detection | Face detection and face capture |
| Alarm Triggers | Motion, Sensor Alarm, Analytics, SD card error |
| Operating & Unit Specifications | |
| Power Consumption | < 12W |
| Operating Temperature | -40°F ~ 140°F (-40°C ~ 60°C) |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 3.93" (W) × 11.0" (D) × 3.5" (H); (100.3mm × 279.5mm × 88.9mm) |
| Unit Weight | 2.2 lbs. (1.0kg) |
| Certifications | FCC, RoHS |
