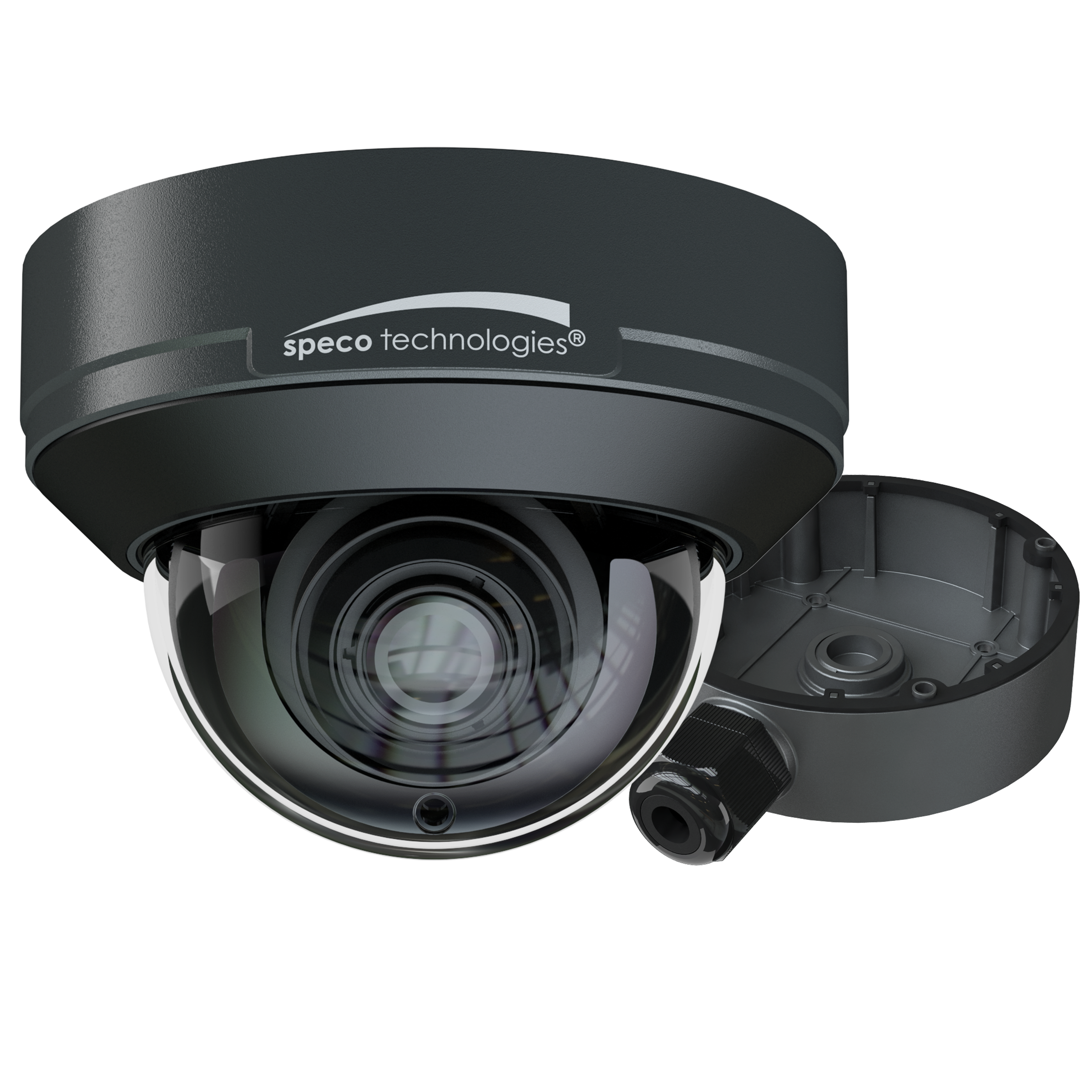

Speco - O8FD1M - 4K (8MP) Flexible Intensifier® IP Dome Camera with Advanced Analytics
Part number:
Price:
Product Overview
Flexible Intensifier® Technology to fit any lighting application. Captures up to 8MP @ 30fps real time. Captures color in extreme low light conditions and monochrome in absolute darkness. 8MP (4K) Flexible Intensifier IP Dome Camera ® Integrated with immix 2.8-12mm motorized lens, dark gray housing.
Key Configuration
Model: O8FD1M | 2.8-12mm motorized | IP67 Weather Resistance | IK10 Vandal Resistance | Built-in standard PoE (IEEE 802.3af)
Key Features
- • IR range: up to 164’ (depending on scene reflection).
- • True WDR operation.
- • Micro SD card slot (card not included).
- • Conformant with ONVIF Profiles G, S, T.
- • Line crossing with counting/Intrusion detection*.
Installation Notes
5.55"(Φ) x 3.94"(H)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/1.8" CMOS |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Field of View | Horizontal: 108° ~ 45.5°; Vertical: 58° ~ 25.5°; Diagonal: 131° ~ 53° |
| Minimum Illumination | 0.006 lux@F1.4, AGC ON; 0 lux with IR |
| White Balance | Auto, indoor, outdoor, manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1/2s ~ 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0° ~ 345°; Tilt:0° ~ 77°; Rotation: 0° ~ 345° |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Video | CVBS out (BNC) |
| Audio | Built-in mic, 3.5mm input, 3.5mm output |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH input/1-CH output |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Microsoft Edge®, Internet Explorer®, Apple Safari®, Fire Fox® |
| PC Application | SecureGuard® VMS and SecureGuard® CMS |
| Mobile | SecureGuard® App, Speco Blue |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication, Watermark, and illegal login lock |
| User Access | Max. 10 simultaneous users actual number of users may vary depending on bandwidth |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio Input | Built-in mic and 3.5mm input |
| Audio Output | 3.5mm output |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, region entrance/exiting/intrusion detection (people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection, face detection, face capture, target counting, heat temperature. All listed analytics may be triggered simultaneously, except face detection. |
| Alarm Triggers | Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| Operating & Unit Specifications | |
| Power Consumption | 12W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Dimensions | 5.55"(Φ) x 3.94"(H) |
| Unit Weight | 2.05 lbs |
| Certifications | FCC, ONVIF Profile G/M/S/T |
| Video Specifications | |
| Main Resolution | 8MP/6MP/4MP/2K/3MP/1080p, 2560x1440, 2304x1296, 1920x1080, 1280x720, D1, CIF, 480240 @ 30fps |
| Substream | 1080p, 720p, D1, CIF, 480x240 @ 30fps |
| Third Stream | D1, CIF, 480x240 @ 30fps |
| Compression | Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265+/H.265/H.264+/H.264/MJPEGThird stream: H.265+/ H.265/H.264+/H.264/MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, exposure, gain, corridor pattern, image flip/mirror |
Name
Description
Size
Downloads
File
User Manual
3.3mb
File
Specification Sheet
1.4mb
File
Quick Start Guide
2.5mb
