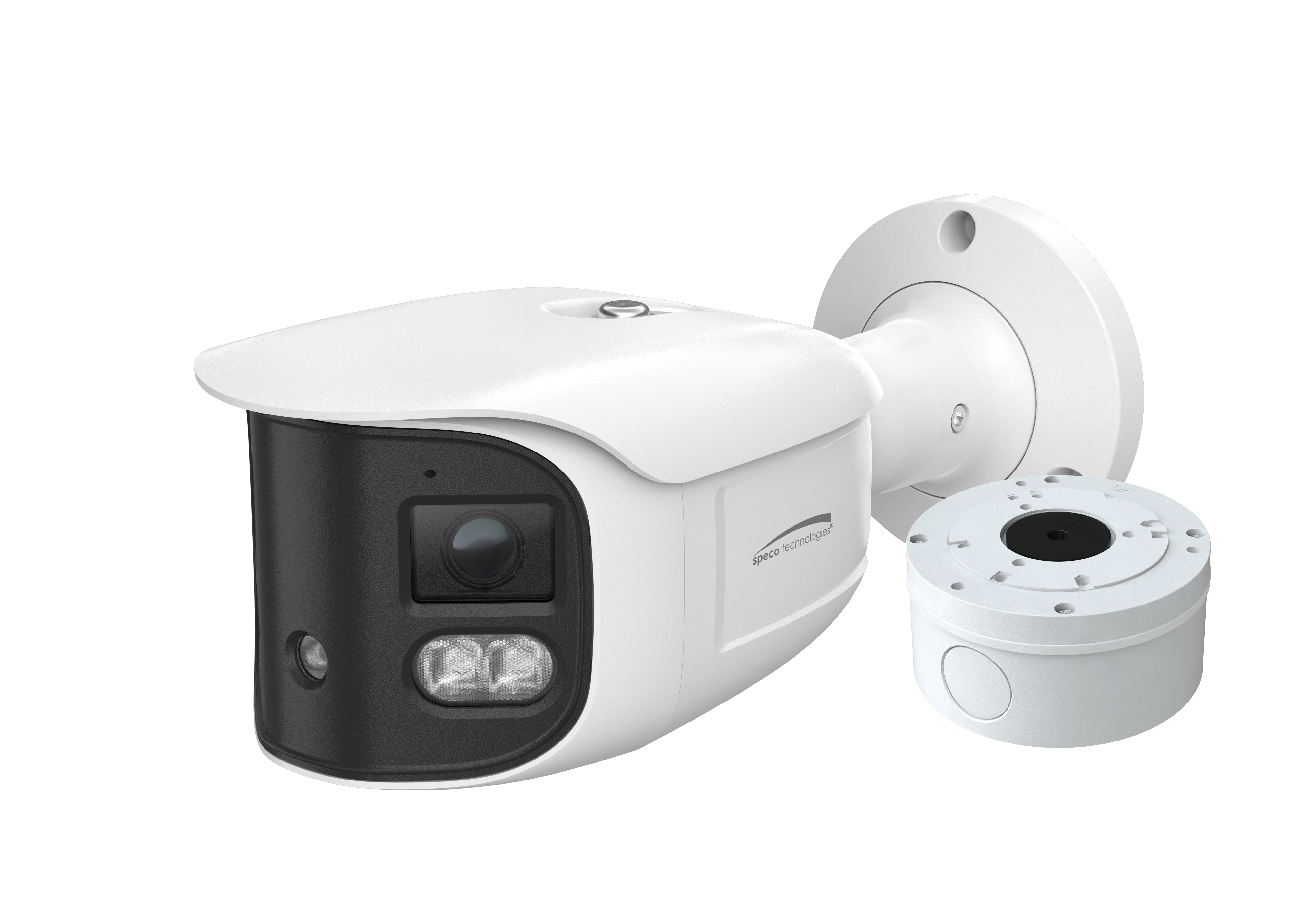

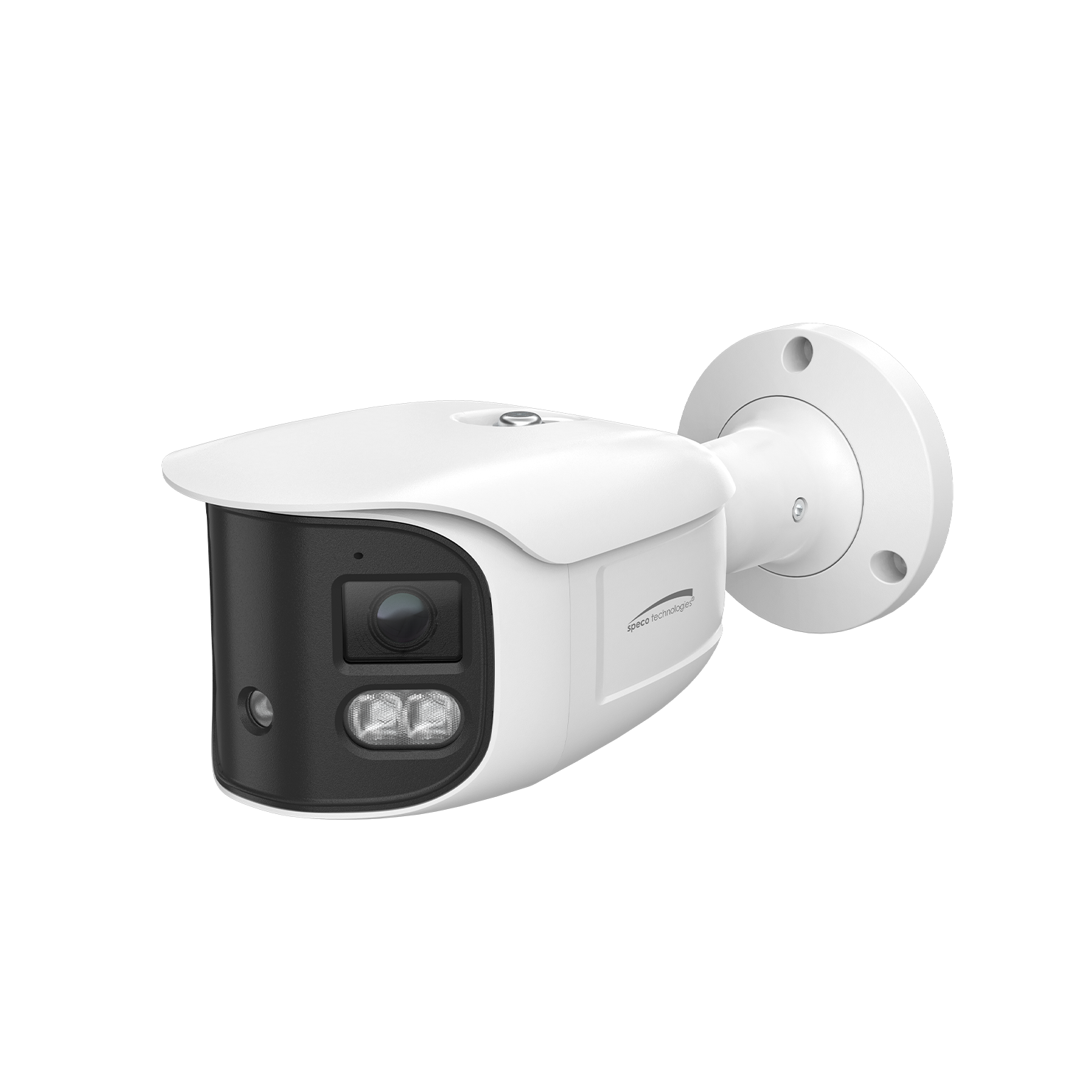

Speco - O8LMSB2 - 8MP 180° Multisensor IP Bullet Camera with Digital Deterrent
Part number:
Price:
Product Overview
Now Integrated with CHeKT - 8MP 180° multisensor with image stitching - Advance analytics with multi trigger support - Up to 98ft IR night view distance - 24/7 Full color options with white light - Built-in micro SD card slot, up to 256gb - IP66 compliant, weather resistant - Digital deterrent and red & blue light feature with two way audio - EZ connect: instant remote access without network port forwarding
Key Configuration
Model: O8LMSB2
Installation Notes
5.08 inches × 4.39 inches × 4.02 inches
| Full Specifications | |
| Lens | 2.8mm |
| IR Night View Distance | Up to 98ft |
| Weather Resistance | IP66 |
| SD Card Slot | Built-in, up to 256GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive Scan CMOS × 2 |
| Max. Resolution | 4640 × 1760 (8MP) |
| Electronic Shutter | 1/3 S – 1/100000 S |
| Lens Type | Fixed lens |
| Min. Illumination | 0.002 Lux (F1.6, AGC ON); 0 Lux with LED on |
| Field of View | Horizontal: 180° ; Vertical: 66° |
| Day/Night | Auto |
| Wide Dynamic Range | DWDR |
| BLC / HLC | Yes |
| Defog | Yes |
| S/N Ratio | > 50dB |
| IR Range | Up to 98 ft |
| White Light Range | Up to 65 ft |
| Image Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360° |
| Video Specifications | |
| Main Resolution | H.265/H.264: 30FPS@8MP (4640×1760), 6MP (3264×1760), 5MP (2592×1944), 4MP (2688×1520), 3MP (2048×1536), 1080p, 720p |
| Sub Stream | 2048×768/1600×608/1280×448/896×320 – 30fps (30FPS @60Hz) |
| Third Stream | 1200×448/960×360/640×240/608×224 – 30fps (30FPS @60Hz) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Profiles | Baseline / Main / High |
| Bit Rate | 64Kbps – 10Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G.711A / U / R |
| Video Settings | ROI, Saturation, Brightness, Hue, Contrast, WDR, Sharpness, NR, etc. |
| Audio Specifications | |
| Audio In | 2CH Built-in Microphone, 3.5mm Input |
| Alarm Out | 1CH Built-in Speaker (Left), 1 CH Built-in Speaker (Right), 3.5mm output |
| Alarm | 1CH Alarm Input, 1CH Alarm Output |
| Network Specifications | |
| Network Interface | RJ-45 (10M/100M adaptive Ethernet port) |
| Protocols | UDP, IPv4/IPv6, DHCP, NTP, RTP, RTSP, SMTP, FTP, DDNS, UPnP, HTTPS, QoS, P2P |
| Interface Protocol | ONVIF |
| Storage | Micro SD card (up to 256GB) |
| Smart Alarm | Motion detection, SMD, storage abnormal, face detection, intrusion detection, region entrance/exit, line crossing, video exception |
| Security | User authentication, HTTPS encryption, IP address filter, log recording |
| Operating & Unit Specifications | |
| Power Supply | DC12V/PoE |
| Power Consumption | <10W |
| Operating Conditions | (-22°F ~ 140°F), humidity ≤95% (non-condensing) |
| Storage Conditions | (-22°F ~ 140°F), humidity ≤95% (non-condensing) |
| Ingress Protection | IP66 |
| Dimensions | 5.08 inches × 4.39 inches × 4.02 inches |
| Weight | Approx. 1.5 pounds |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue App (iPhone® and Android™) |
