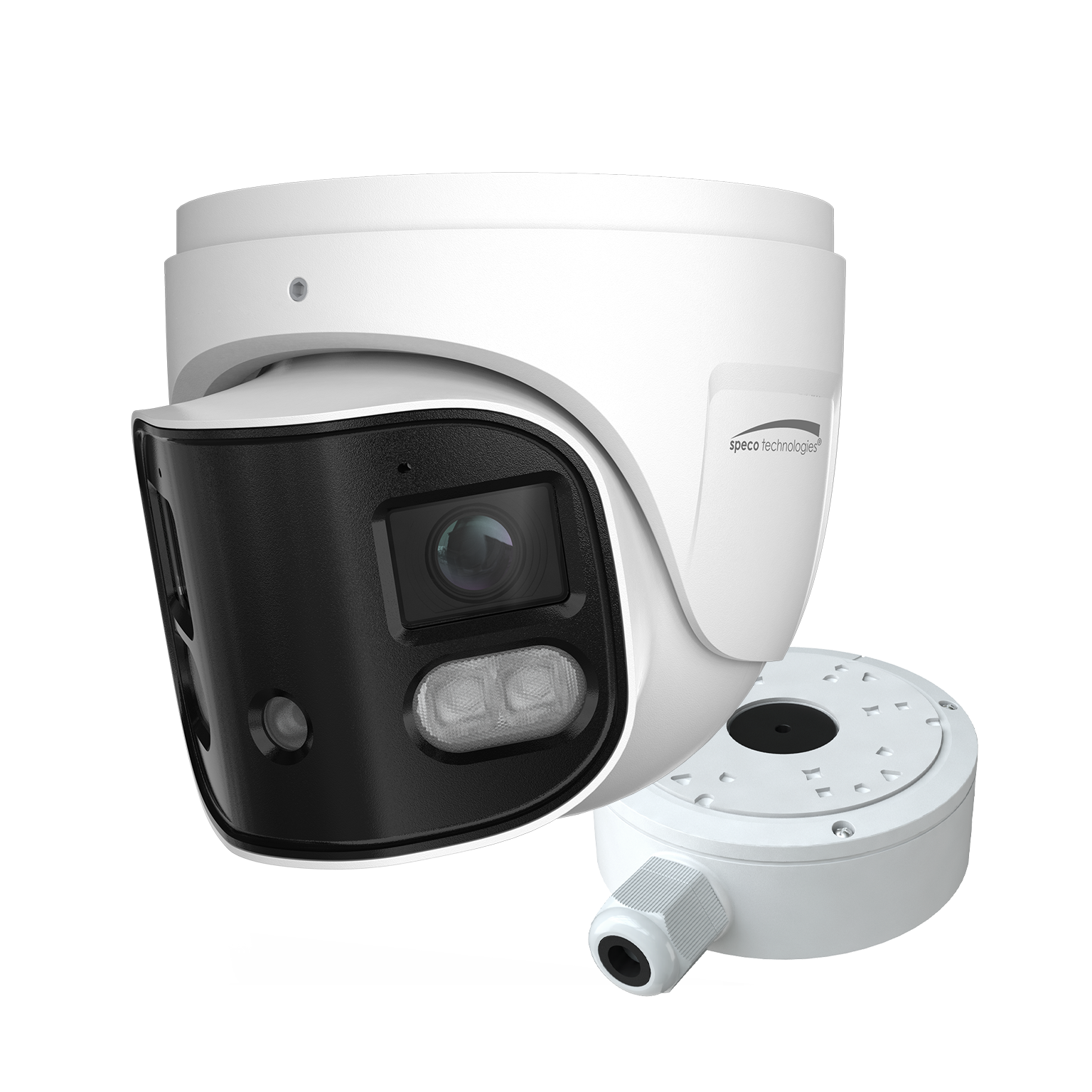

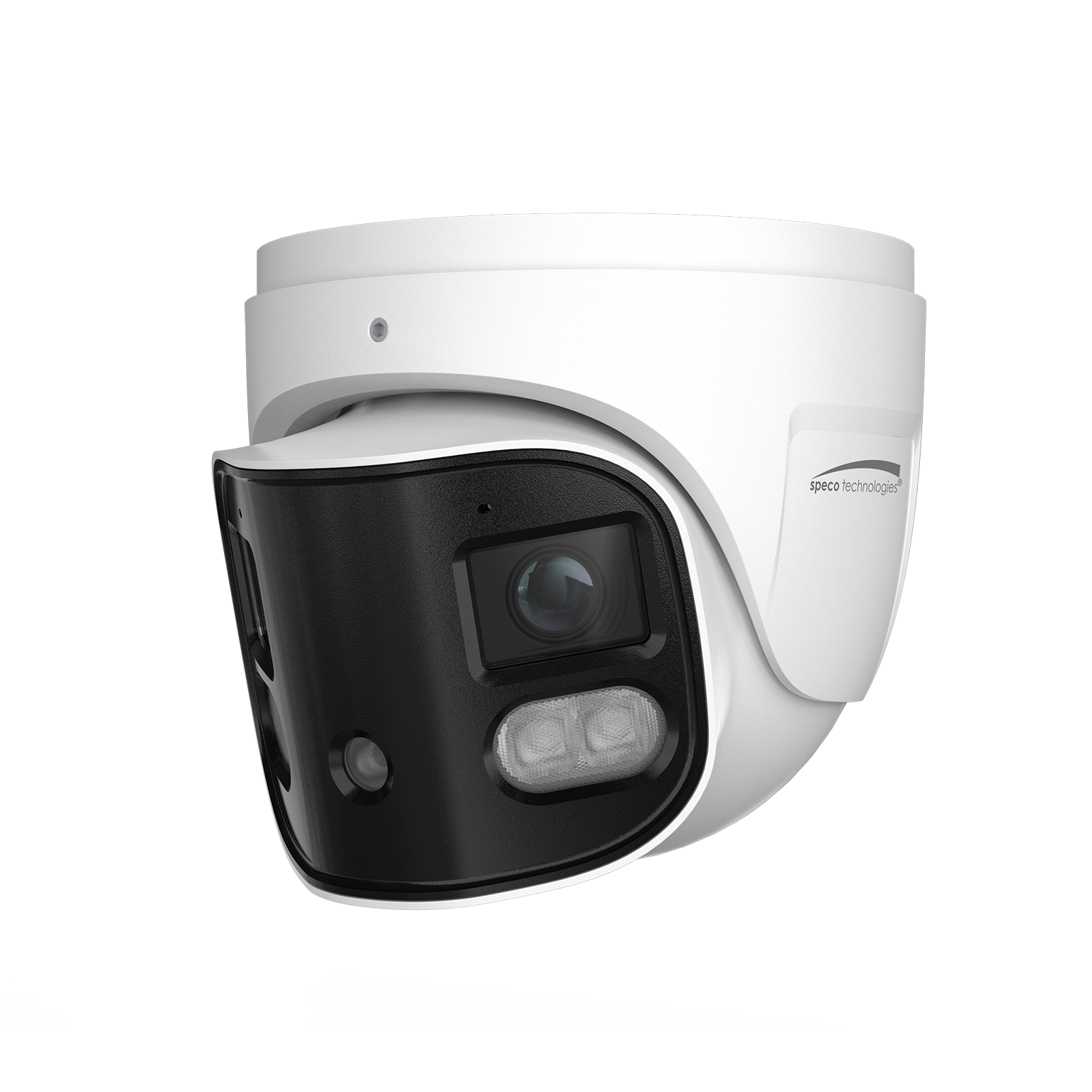

Speco - O8LMST2 - 8MP 180° Multisensor IP Camera with Digital Deterrent
Part number:
Price:
Product Overview
Now Integrated with CHeKT. 8MP 180° multisensor with image stitching. Advance analytics with multi trigger support. Up to 98ft IR night view distance. 24/7 Full color options with white light. Built-in micro SD card slot, up to 256gb. IP66 compliant, weather resistant. Digital deterrent and red & blue light feature with two way audio. EZ connect: instant remote access without network port forwarding.
Key Configuration
Model: O8LMST2
Key Features
- • Advanced analytics with multi trigger support.
- • Up to 98ft IR night view distance.
- • 24/7 Full color options with white light.
- • Built-in micro SD card slot, up to 256gb.
- • IP66 compliant, weather resistant.
Installation Notes
5.08 inches × 4.39 inches × 4.02 inches
| Full Specifications | |
| Image Quality | 8MP |
| Field of View | 180° |
| Lens | 2.8mm |
| Weather Resistance | IP66 |
| Micro SD Slot | Up to 256GB |
| Night Vision | Up to 98ft IR |
| Audio | Two-way audio |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive Scan CMOS × 2 |
| Max. Resolution | 4640 × 1760 (8MP) |
| Electronic Shutter | 1/3 S - 1/100000 S |
| Lens Type | Fixed lens |
| Min. Illumination | 0.002 Lux (F1.6, AGC ON); 0 Lux with LED on |
| Day/Night | Auto |
| Wide Dynamic Range | DWDR |
| BLC / HLC | Yes |
| Defog | Yes |
| S/N Ratio | > 50dB |
| IR Range | Up to 98 ft |
| White Light Range | Up to 65 ft |
| Image Adjustment | Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360° |
| Video Specifications | |
| Main Resolution | H.265/H.264: 30FPS@8MP (4640×1760), 6MP (3264×1760), 5MP (2592×1944), 4MP (2688×1520), 3MP (2048×1536), 1080p, 720p |
| Sub Stream | 2048×768/1600×608/1280×448/896×320 – 30fps (30FPS @60Hz) |
| Third Stream | 1200×448/960×360/640×240/608×224 – 30fps (30FPS @60Hz) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Profiles | Baseline / Main / High |
| Bit Rate | 64Kbps – 10Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G.711A / U / R |
| Video Settings | ROI, Saturation, Brightness, Hue, Contrast, WDR, Sharpness, NR, etc. |
