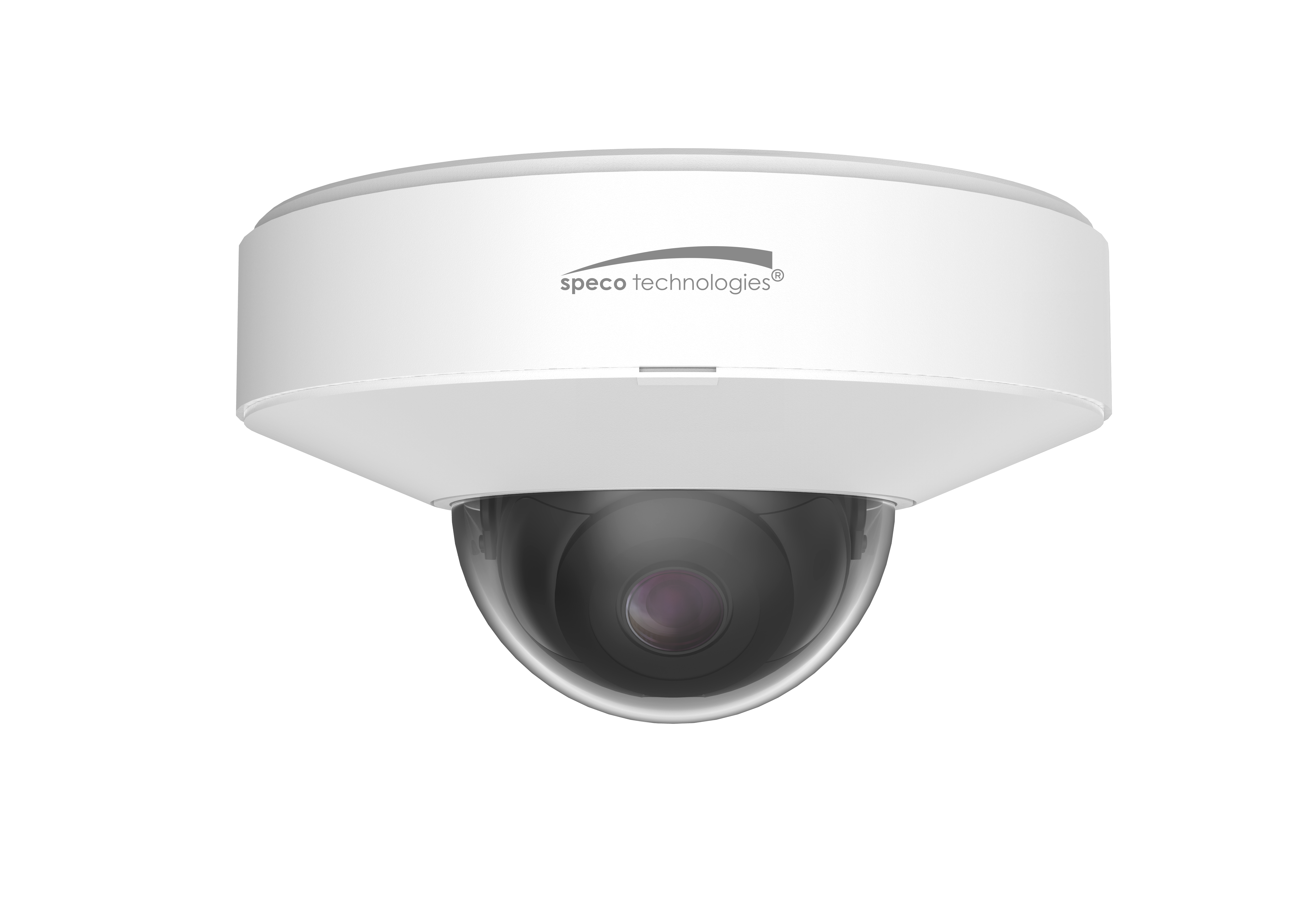

Speco - O8P4N - 8MP IP Mini-Dome Camera with Advanced Analytics
Part number:
Price:
Product Overview
2.8mm fixed lens, white housing NDAA COMPLIANT 2 WAY AUDIO READY IP67 TRUE WDR DAY NIGHT SD CARD SLOT H.265 IR Ai IP YEAR 5 WARRANTY
Key Configuration
Model: O8P4N
Key Features
- • Supports up to 8MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
4.346"Ø x 2.441" (H)
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Field of View | Horizontal: 104°, vertical: 55°, Diagonal: 125° |
| Minimum Illumination | 0.02lux @ F1.6(AGC ON); 0 lux with IR |
| White Balance | Auto, indoor, outdoor, manual |
| Compensation | True WDR (120dB) |
| Day/Night | ICR |
| Electronic Shutter Speed | 1/3s - 1/100000s |
| Angle Adjustment | Pan: 0° - 360°; tilt: 0° - 70°; rotation: 0° - 350° |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Audio Input | Built-in mic, 3.5mm input |
| Audio Output | 3.5mm output |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm in, 1-CH alarm out |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Microsoft Edge®, Internet Explorer®, Apple Safari® |
| PC Application | SecureGuard® VMS and SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 10 simultaneous users |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Other Specifications | |
| PoE | Standard (IEEE802.3af) |
| Analytics | Motion detection, object abandoned/ missing detection, region entrance/ exiting/intrusion detection (face/people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection, and Face Detection. All listed analytics may be triggered simultaneously, except face detection. |
| Alarm Triggers | Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| Operating & Unit Specifications | |
| Power Consumption | 7W (max) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Dimensions | 4.346"Ø x 2.441"(H) |
| Unit Weight | 0.93 lbs. |
| Certifications | FCC, CE |
| Video Specifications | |
| Main Resolution | 8mp (3840 × 2160), 6MP (3072 × 2048) 5MP (2592 × 1944), 4MP (2592 × 1520) 2K (2560 × 1440), 3MP (2304 × 1296) 1080P (1920 × 1080), 720P (1280 × 720) CIF, DI, VGA @ 30fps |
| Substream | 1280x720, D1, CIF @ 30fps |
| Third Stream | D1, CIF, 480x240 @30fps |
| Compression | Main Stream: H.265+, H.265, H.264+, H.264 Sub Stream: H.265+, H.265, H.264+, H.264, MJPEG Third Stream: H.265+, H.265, H.264+, H.264, MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 12Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, de-noise, anti-flicker, day/night mode, exposure, gain, corridor pattern, image flip/mirror |
