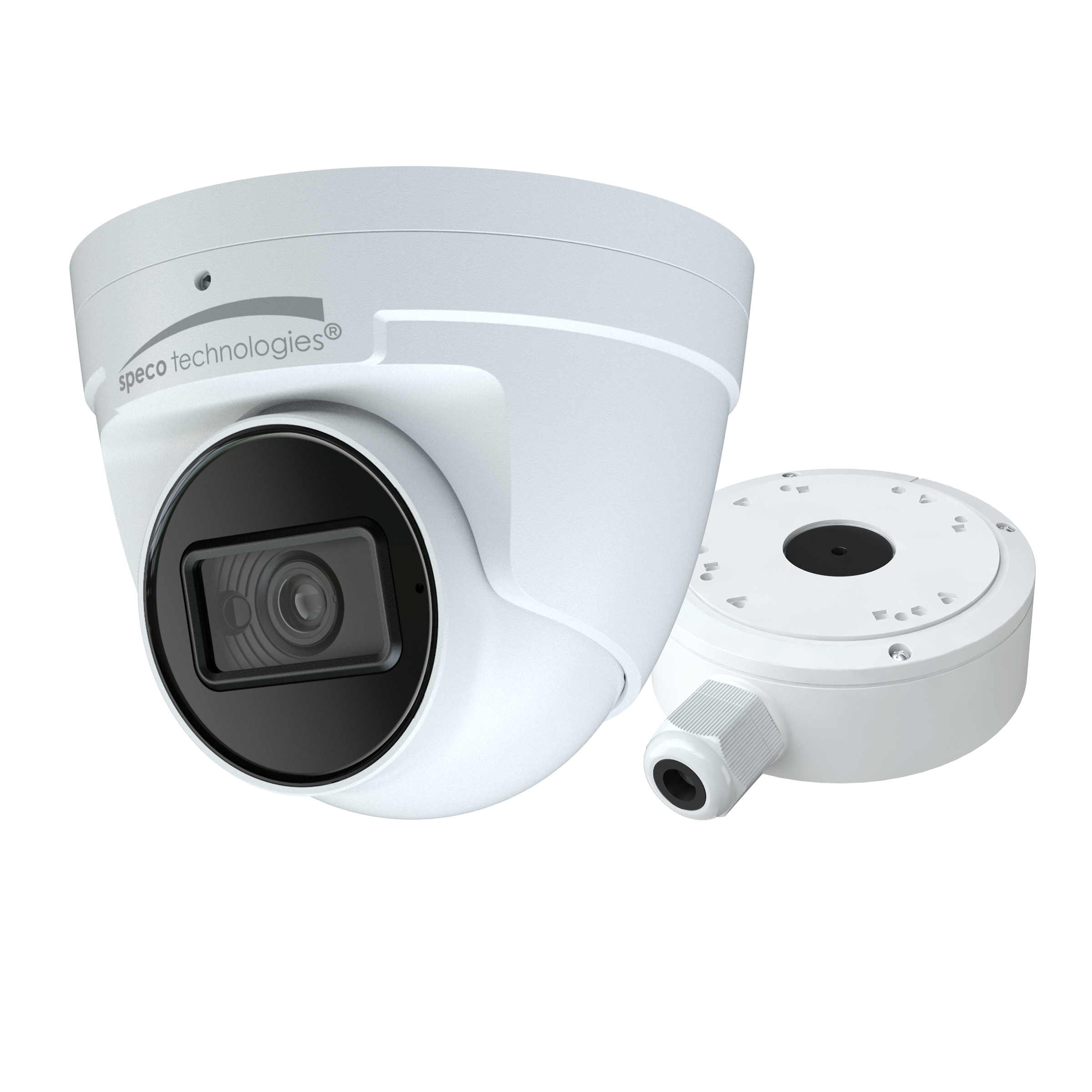

Speco - O8T9 - 8MP (4K) H.265 IP Turret Camera with Advanced Analytics, NDAA Compliant
Part number:
Price:
Product Overview
Now Integrated with CHeKT
Key Configuration
Model: O8T9
Key Features
- • Captures up to 8MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
- • IR range: up to 98’ (depending on scene reflection).
- • True WDR operation.
| General | |
| Model | Speco O8T9 |
| Product Type | 8MP (4K) IP turret camera |
| Housing | White |
| Lens | 2.8mm fixed lens |
| Warranty | 5 years |
| Camera and Image | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 8MP |
| Maximum Resolution | 3840 × 2160 (8MP) |
| Minimum Illumination | 0.02 lux at F1.6, AGC on 0 lux with IR |
| Field of View | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
| Day/Night | Smart IR with IR cut filter |
| IR Range | 98ft, depending on scene reflection |
| Wide Dynamic Range | True WDR |
| Backlight Compensation | BLC / HLC |
| Electronic Shutter Speed | 1 sec. to 1/100,000 sec. |
| Noise Reduction | 3D DNR |
| Image Settings | Region of interest, saturation, brightness, chroma, contrast, wide dynamic, defog, sharpening, noise reduction, and corridor mode |
| Angle Adjustment | Pan: 0°-360° Tilt: 0°-75° Rotation: 0°-360° |
| Interfaces and Storage | |
| Network Interface | RJ45 jack |
| Power Interface | DC jack |
| Audio Interface | 3.5mm audio input |
| Built-In Microphone | Yes |
| Memory Card Slot | MicroSD, up to 256GB Card not included |
| Alarm Interface | None |
| Reset | Yes |
| Video | |
| Main Stream Resolution | 8MP / 6MP / 5MP / 4MP / 2K / 3MP / 1080p / 720p at 1-30fps |
| Sub Stream Resolution | 1080p / 720p / D1 / 480 × 240 at 1-30fps |
| Third Stream Resolution | 720p / D1 / CIF / 480 × 240 at 1-30fps |
| Video Compression | H.265 / H.264 / MJPEG |
| Bitrate Control | VBR / CBR, 64Kbps-12Mbps |
| Multiple Streaming | 3 streams |
| Audio | |
| Audio Codec | G.711A / G.711U |
| Audio Input | 3.5mm input and built-in microphone |
| Network and Security | |
| Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS | Speco DDNS, free of charge |
| Security | User ID and password protection, IP/MAC address filtering, digest authentication |
| Maximum Simultaneous Users | 10 users Actual number may vary depending on bandwidth |
| ONVIF | Profile G / S / T |
| D.O.R.I. | |
| Detection | 272ft (83.0m) |
| Observation | 108ft (33.0m) |
| Recognition | 56ft (17.0m) |
| Identification | 26ft (8.0m) |
| Advanced Analytics | |
| Perimeter Protection | Line crossing, region entrance/exit, intrusion detection, and loitering detection |
| Target Detection | People, vehicles, motorcycles, and bicycles |
| Target Counting | People, motor vehicles, and non-motor vehicles crossing a line |
| Face Detection | Face detection and face capture |
| Exception Detection | Scene change, video blur, video color cast, and sound detection |
| Alarm Triggers | Motion, analytics, and SD card error |
| Image Security | Watermark, IP address filtering, video mask, and password protection |
| Power and Environmental | |
| Power Supply | PoE or 12VDC Power supply not included |
| PoE Standard | IEEE 802.3af |
| Power Consumption | 9.0W maximum |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Operating Humidity | Less than 95%, non-condensing |
| Weather Resistance | IP67 |
| Physical Characteristics | |
| Dimensions | 4.2" diameter × 3.75" height |
| Weight | 1.01lbs |
| Included Accessories | Junction box included |
| Client Applications | |
| Web Browser Support | Chrome, Edge, Safari, Internet Explorer |
| PC Applications | SecureGuard VMS, SecureGuard CMS |
| Mobile Applications | SecureGuard Client and Speco Blue for iPhone and Android |
| Certifications | |
| Certifications | FCC, RoHS |
| NDAA Compliance | Compliant with NDAA Section 889 Part B guidelines |
Name
Description
Size
Downloads
File
Specification Sheet
0.7mb
File
Quick Start Guide
2mb
