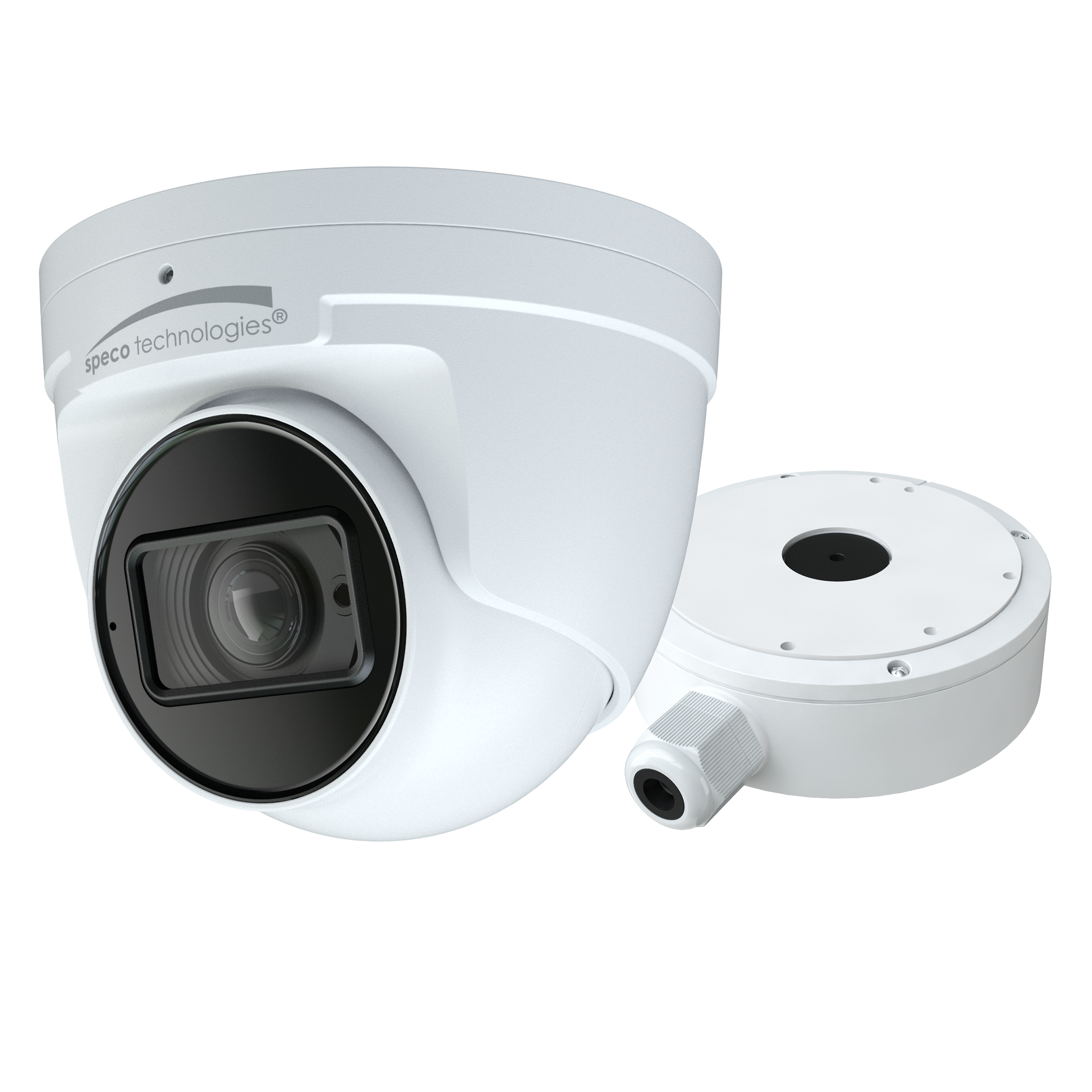

Speco - O8T9M - 8MP (4K) IP Turret Camera with Advanced Analytics, NDAA Compliant
Part number:
Price:
Product Overview
Now Integrated with CHeKT 8MP (4K) IP Turret Camera with Advanced Analytics. 2.8-12mm motorized lens, white housing
Key Configuration
Model: O8T9M | 2.8-12mm motorized lens | white housing
Key Features
- • Captures up to 8MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
- • IR range: up to 164’ (depending on scene reflection).
- • True WDR operation.
Installation Notes
5.125" (Dia.) × 4.1" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 8MP |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Minimum Illumination | 0.015lux @ F1.4, AGC ON; 0 lux with IR |
| Field of View | (H): 96° - 32°; (V): 64° - 18.4°; (D): 103.8° - 36.5° |
| Image Settings | Region of interest, saturation, brightness, chroma, contrast, wide dynamic, defog, sharpen, noise reduction, corridor mode (image rotation) |
| Day/Night | Smart IR with cut filter |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1 sec. - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° - 360°, tilt 0° - 80°, rotation 0°- 360° |
| Video Specifications | |
| Main Resolution | 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1-30fps) |
| Sub Stream | 720P/D1/480 x 240 (1-30fps) |
| Third Stream | D1/CIF/480x240 (1-30fps) |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (64Kbps - 12Mbps) |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users; Actual number of users may vary depending on bandwidth |
| Interfaces | |
| Network | RJ45 jack |
| Power | DC jack |
| Microphone Input | 3.5mm |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | No |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Internet Explorer |
| PC Application | SecureGuard® VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| D.O.R.I. (m) | |
| Detection (25px/m) | Wide 185 ft. (85m), telephoto 63 ft. (17m) |
| Observation (63px/m) | Wide 552 ft. (289m), telephoto 136 ft. (58m) |
| Recognition (125px/m) | Wide 93 ft. (34m), telephoto 26 ft. (8m) |
| Identification (250px/m) | Wide 241 ft. (116m), telephoto 84 ft. (29m) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Perimeter Protection | Line crossing, loitering, region entrance/exiting/intrusion (human/motor vehicle/non-motor classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change video blur, video color cast detection, and sound detection |
| Face Detection | Face detection and face capture |
| Alarm Triggers | Motion, Sensor Alarm, Analytics, SD card error |
| Operating Specifications | |
| Power Consumption | 8.0W (max) |
| Operating Temperature | -40°F ~ 140°F (-40°C ~ 60°C) |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 5.125" (Dia.) × 4.1" (H) |
| Unit Weight | 1.48 lbs. (0.67kg) |
| Certifications | FCC, RoHS |
Name
Description
Size
Downloads
File
Specification Sheet
0.8mb
File
Quick Start Guide
2mb
File
User Manual
2.9mb
