Speco - P8S9O - 9-port IP65 Rated 8 port PoE Switch
Part number:
Price:
Product Overview
Our PoE switch series is designed to supply power and maximize network safety, with features of surge protection, weather-resistance and VLAN.
Key Configuration
Model: P8S9O
Key Features
- • VLAN Mode: Each PoE port is isolated and independently connects with cameras, computers or other switches.
- • Surge Protection: Each port is equipped with a surge absorber which can survive under 10,000V/150A.
- • PoE supplies power through the IEEE802.3af standard, with maximum 0.65A and overcurrent protection.

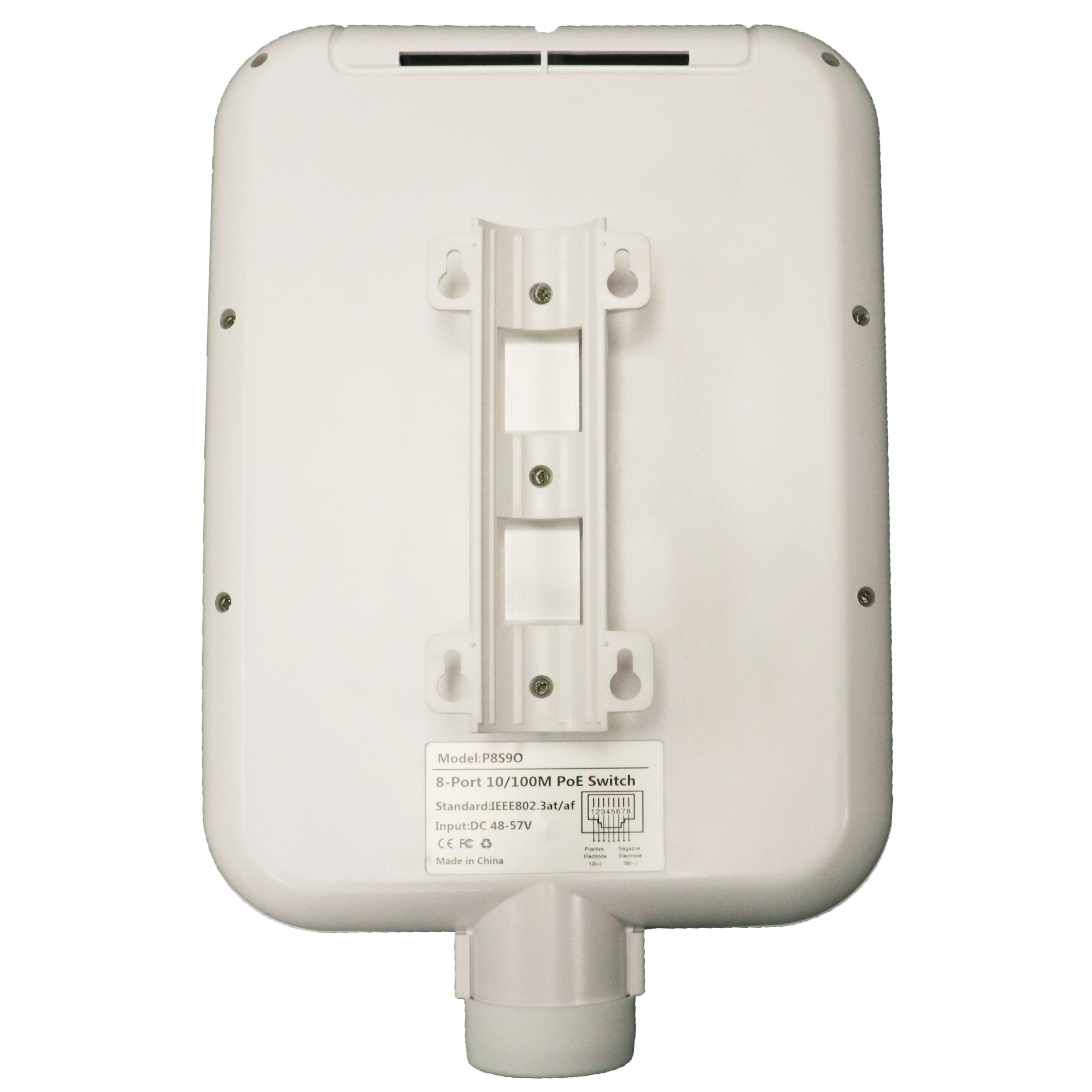

- • Easy to install with an attached bracket.
- • Compact design with waterproof features.
Installation Notes
12" x 8.7" x 2"
| Full Specifications | |
| Compliance | NDAA Section 889 Part B Guidelines |
| Ports | 8 ports |
| Surge Absorber | 10,000V/150A |
| Switch Specifications | |
| Total Ports | P8S9O - 9, P4S5O - 5 |
| PoE Ports | P8S9O - 8, P4S5O - 4 |
| Power Consumption | P8S9O - 120W, P4S5O - 75W |
| Max Power Per Port | 13.5W |
| Standards | IEEE802.3x, IEEE802.1Q, IEEE802.3af, IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab |
| Backplane Bandwidth | P8S9O - 1.8Gbps, P4S5O - 1Gbps |
| Required Network Cable | 10 Base-T: 3 or 5 UTP100 Base-TX: 5 UTP |
| Forwarding Speed | 10/100Mbps, 148800pps |
| MAC Address | 4K |
| Switch Mode | Store and transmit |
| Transmission Mode | Duplex/Half duplex |
| PoE Operation | Auto-senses power demanding devices |
| Protocol | CSMA/CD, Supporting IEEE802.1D |
| Distance Power Supplied | < 100m using the Cat5e cable |
| PoE Power Pins | 4/5+, 7/8- |
| Signal Lights | Power, Link/Act, PoE, Uplink Status |
| Operating Specifications | |
| Dimensions | 12" x 8.7" x 2" |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -58 to 176°F (-50 to 80°C) |
| Input Power | 48-57VDC |
