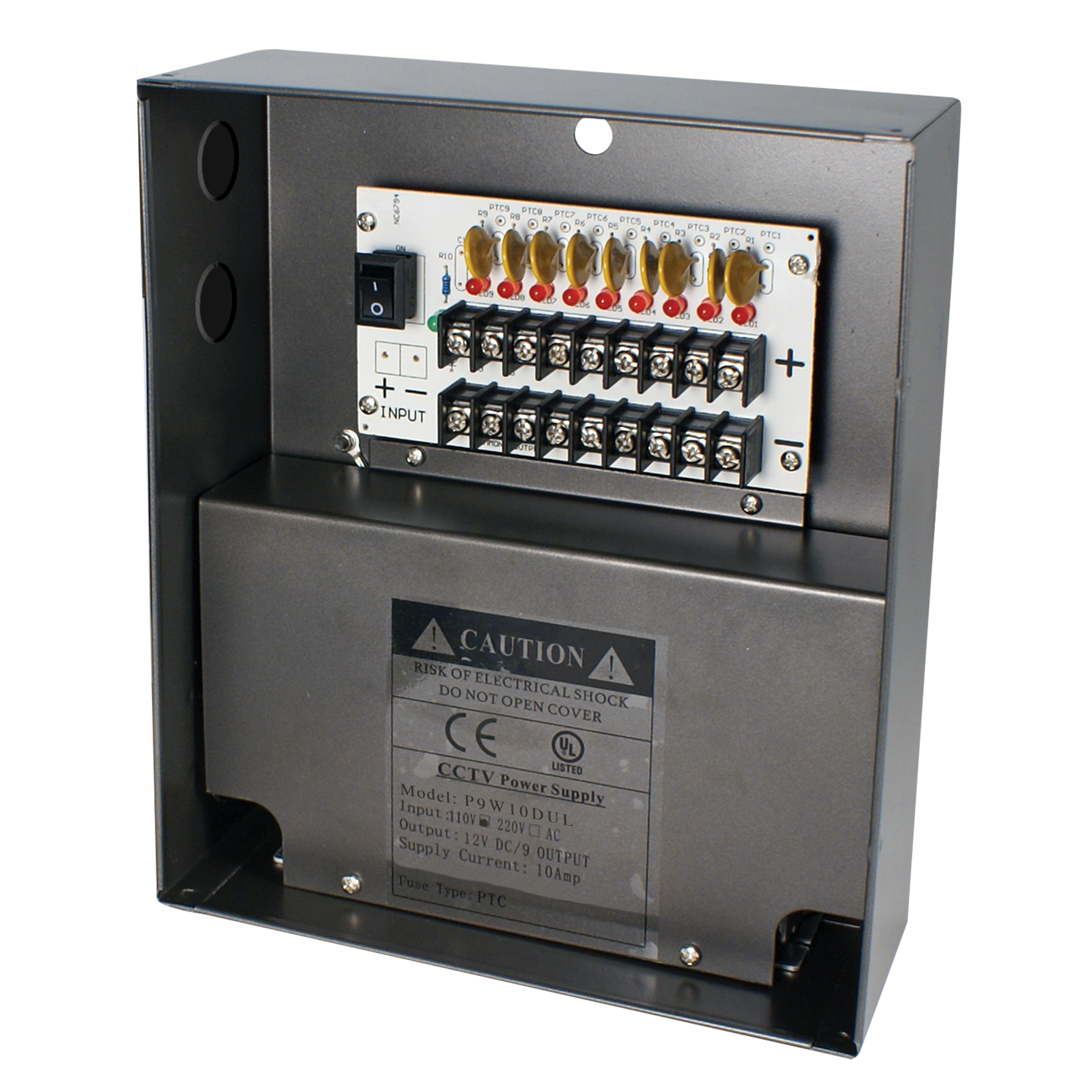

Speco - P9W10DUL - 9CH @ 10A DC Camera Power Supply – UL Certified (W-12VDC-9P/10A(UL)AP)
Part number:
Price:
Product Overview
• UL listed • 12VDC fused output for 4 or 9 cameras • More than 1A per channel output • Individual PTC auto reset fuse for each output • Individual LED status indicator for each output • Main power switch with surge protection • Power Cord Included • 5 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines**
Key Configuration
Model: P9W10DUL
Installation Notes
8" (W) x 9.5" (H) x 3.25" (D)
| Full Specifications | |
| Outputs | 4 or 9 cameras |
| Warranty | 5 years |
| Compliance | NDAA Section 889 Part B Guidelines |
| Fuse Type | 4 ch PTC 1.6A / 60V 9 ch PTC 1.3A / 60V |
| Input | 3 pin AC socket |
| Power Requirement | 4 CH. 110VAC, 50 / 60HZ 9 CH. 110VAC, 50 / 60HZ |
| Operating Temperature/ Humidity | 32° F - 104° F / RH 20% - 90% |
| Storage Temperature | -4° F - 140° F |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
