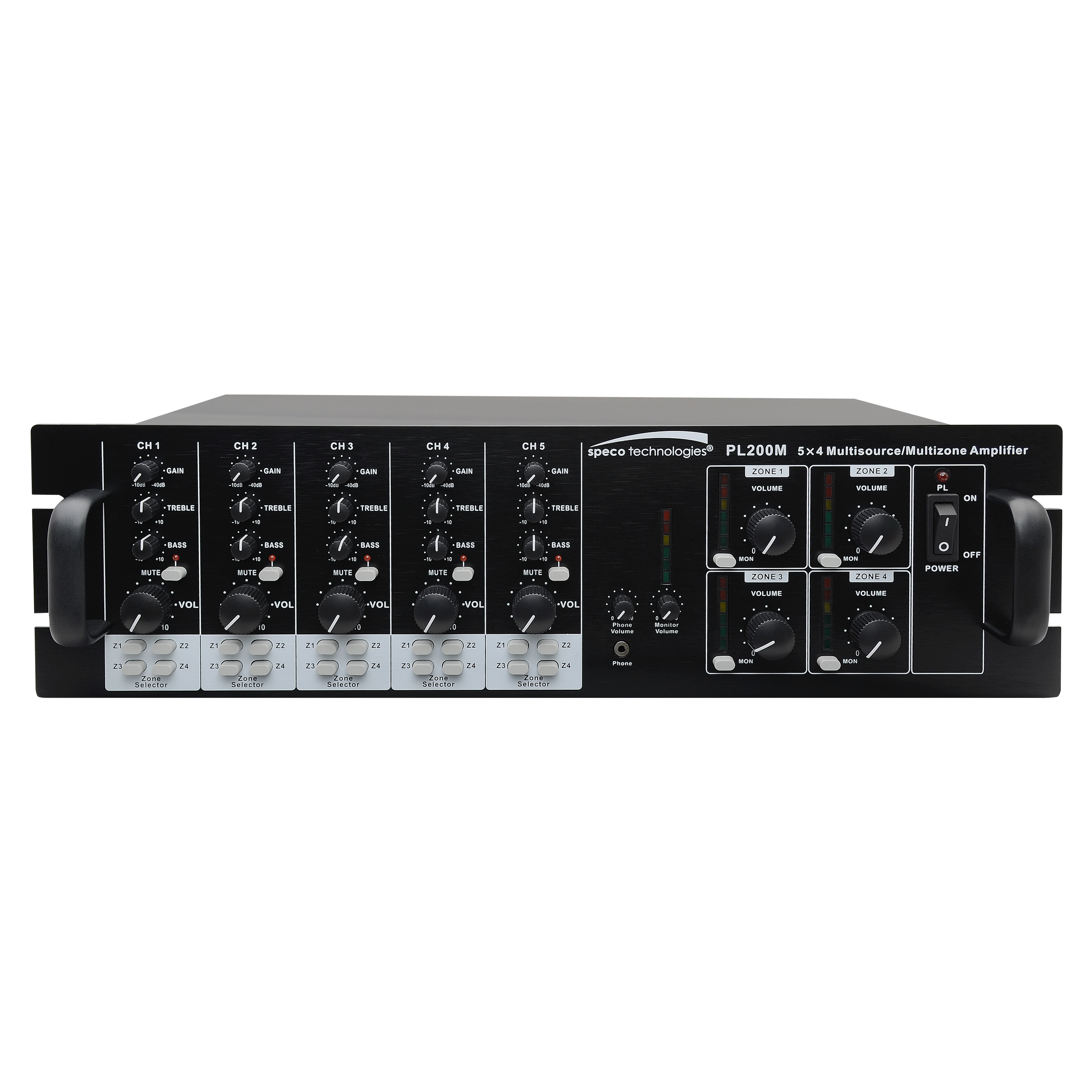

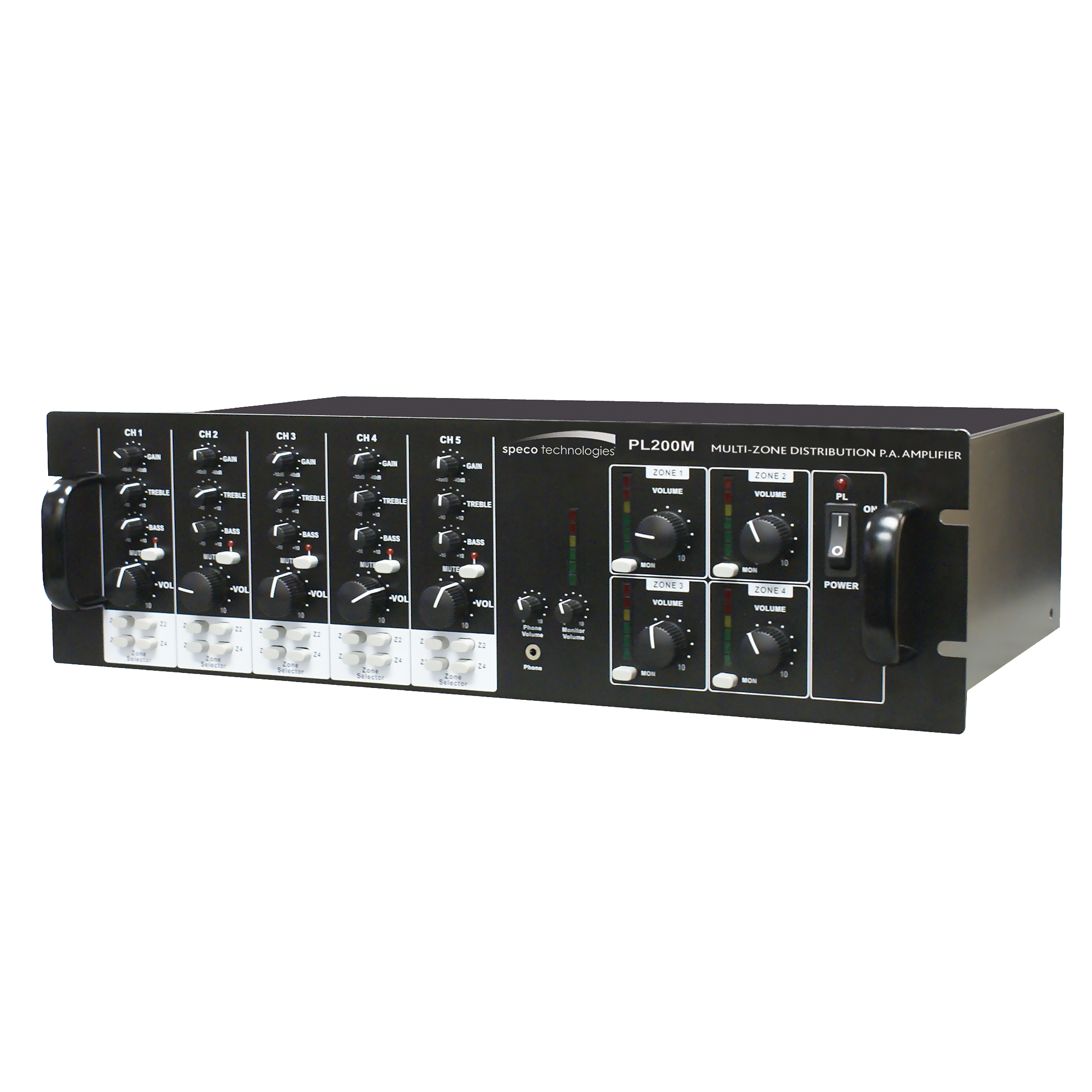

Speco - PL200M - 160 Watt 5×4 Multisource/Multizone PA Amplifier
Part number:
Price:
Product Overview
• Simultaneous playback of up to 5 sources into up to 4 zones. • 4 sets of 4/8 Ohms or 70/25V outputs • Telephone paging interface, and limited music on hold functionality via a monitor output • Mic1 selectable priority paging with internal toggle • Energy saving intelligent cooling fan • Separate controls (gain, bass, treble volume) and mute for each source • Separate volume control and LED power indicator for each zone • Rack-mount design with built-in handles (3U) • 3 combination XLR/ 1/4” inputs with selectable phantom power, line level or mic level **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: PL200M
Installation Notes
19” (W) x 5.2” (H) x 12.2” (D)
| Full Specifications | |
| Type of Amplifier | Matrix, Mixer |
| RMS Output Power | 40W (Per zone for 160W total) |
| Max. Output Power | 90W (Per zone for 360W total) |
| AC Power Consumption | 400W (total) |
| Power Supply | AC 115V/230V, 60/50Hz |
| Zones | 4 |
| Speaker Outputs | 4/8 Ohms, 70/25V (per zone) |
| Other Outputs | Aux (Terminal) (per zone) |
| Inputs | 3 x Mic/Aux inputs (Combo XLR/ 1/4”), 2 x Aux (Stereo RCA), 1 x TEL (Terminal) |
| Frequency Response | 50Hz ~ 17KHz (±3dB) |
| Tone Control | Bass ± 10dB, Treble ± 10dB |
| THD | Less than 0.5% @ 1KHz |
| Signal/Noise Ratio | Microphone: >55dB, Line: >60dB |
| Controls | Volume for each source, Volume for each zone, Volume for monitor, Volume for headphone, Zone selector for each source, Monitor selector for each zone, Input type selector |
| Telephone | TEL in |
| Indicators | Power, power level |
| Listings | CE, FCC, RoHS |
