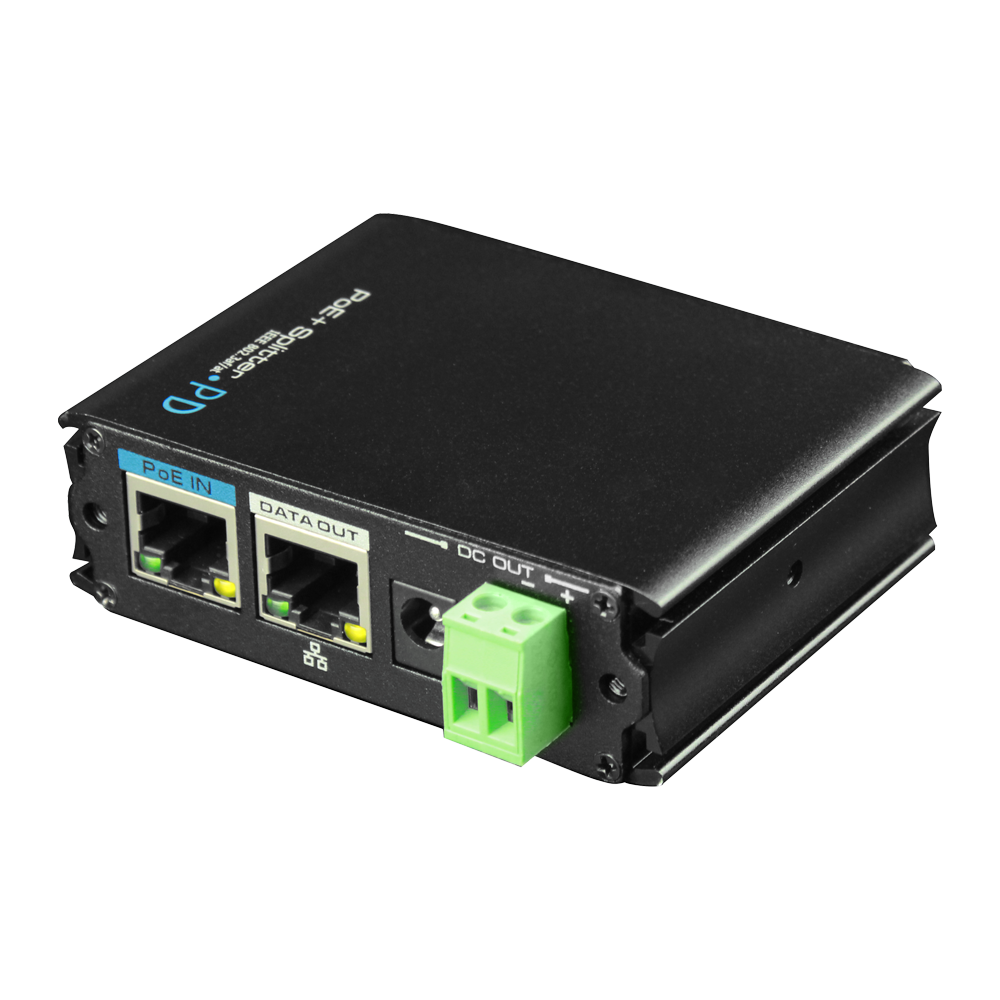

Product Overview
• Power non-PoE IP cameras via a PoE signal by splitting the signal into Ethernet and power • POESPL can handle up to 30W 802.3at PoE power • Ethernet speed up to 10/100/1000MBPS • 2 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines This is manufacturer documentation for product model POESPL.
Key Configuration
Model: POESPL
Installation Notes
3.2” (L) x 2.4” (W) x 1.0” (H)
| Full Specifications | |
| Power Output | 30W 802.3at PoE |
| Ethernet Speed | 10/100/1000 MBPS |

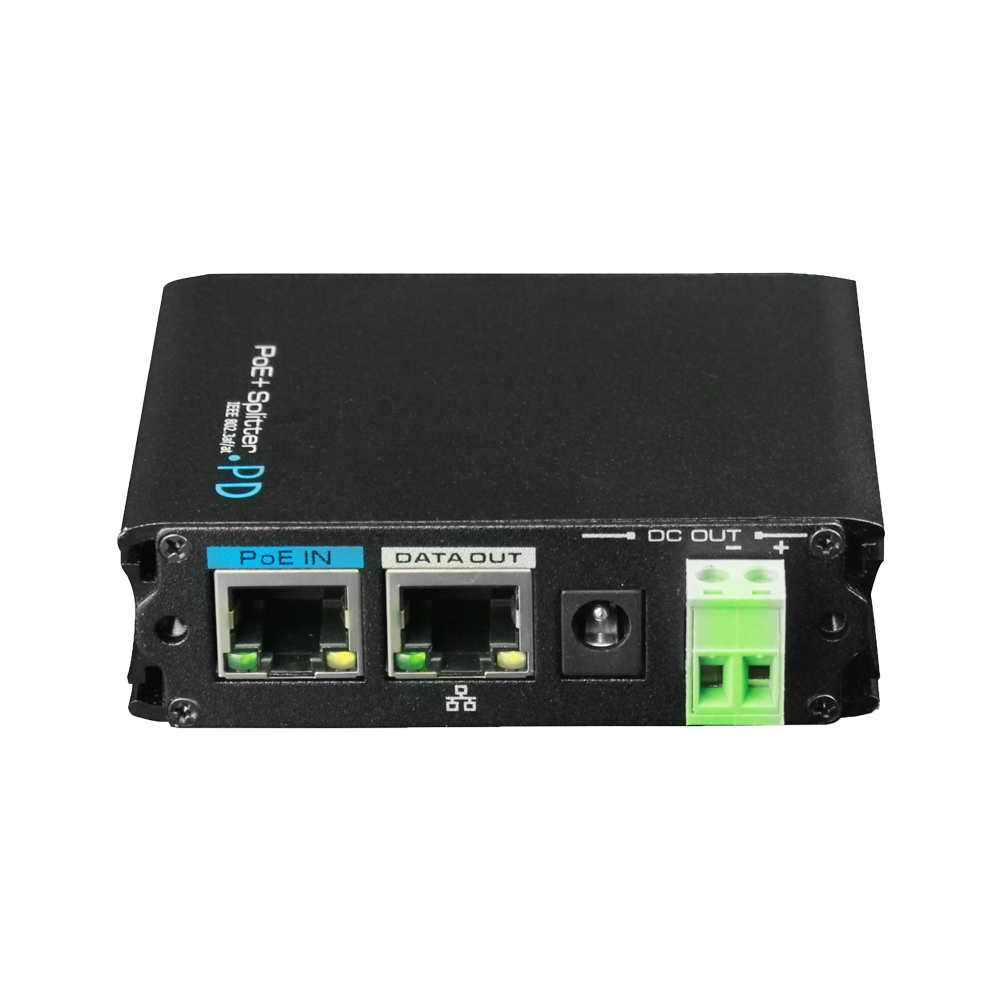

| Ports | 1 x RJ-45, 1 x 2-pin terminal block output, 1 x RJ-45 input |
| PoE Standards | IEEE 802.3at/af |
| PoE Power | 30W Max. |
| Input Power | PoE 36V –60V |
| Operating Temperature | -40º F – 167º F |
| Storage Temperature | -40º F – 185º F |
| Operating Humidity | 0% – 95%. |
Name
Description
Size
Downloads
File
User Manual
0.2mb
File
Specification Sheet
1.2mb
