Speco - PVM27 - 27” Public Display Monitor with Built-in 5MP IP & 2MP HD-Analog Cameras
Part number:
Price:
Product Overview
27" HD Public Display Monitor
Key Configuration
Model: PVM27
Key Features
- • Connect and record to DVR or NVR.
- • LED Backlight, up to 40% power savings over standard backlit displays.
- • Built-in dual cameras (NDAA 2MP TVI and 5MP IP).

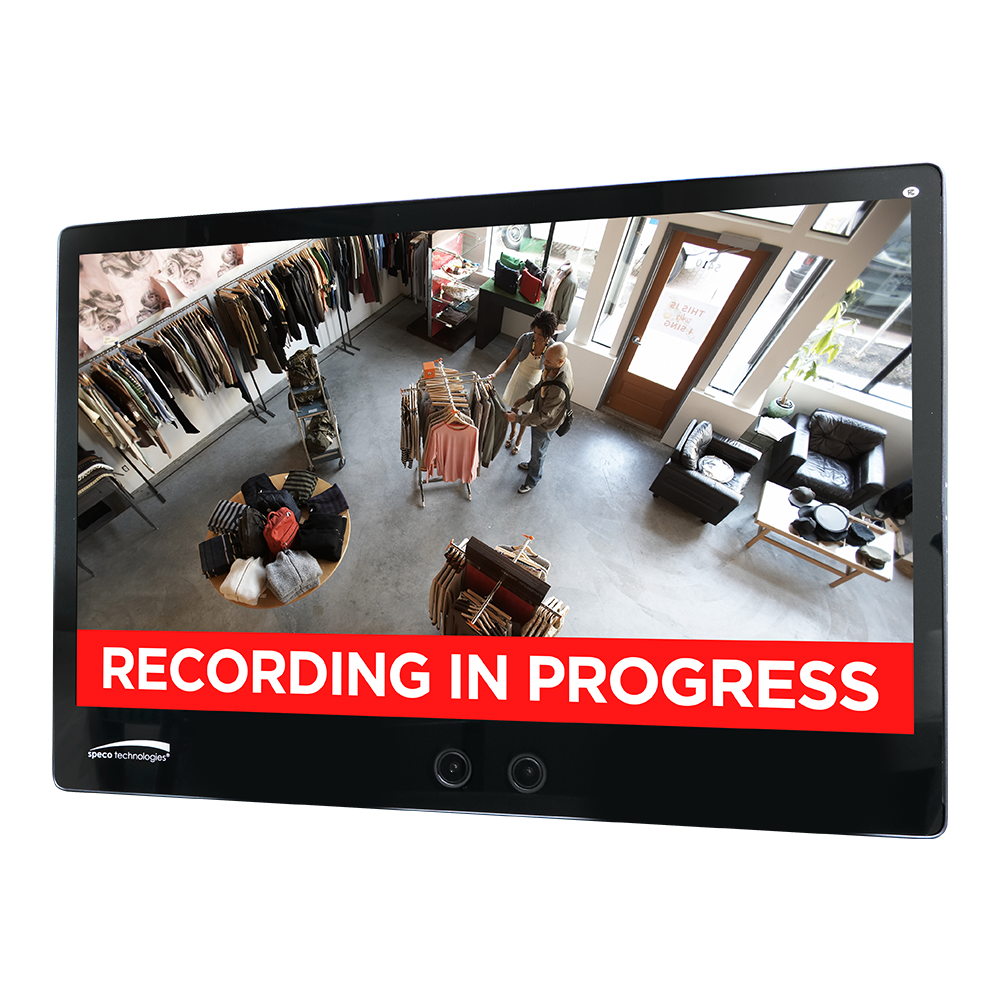

- • Selectable banner message.
- • Warning beep based on motion.
Installation Notes
638mm x 434mm x 31mm
| Full Specifications | |
| Megapixel | 2MP, 5MP |
| LCD Display Specifications | |
| Resolution | 1920x1080 (2MP) |
| Brightness | 350cd/m2 |
| Contrast | 3000:1 |
| Response Time | 15ms |
| Display Color | 16.7M |
| View Angle | Up to 89° |
| Interface | 1 x VGA, 1 x HDMI, 1 x BNC |

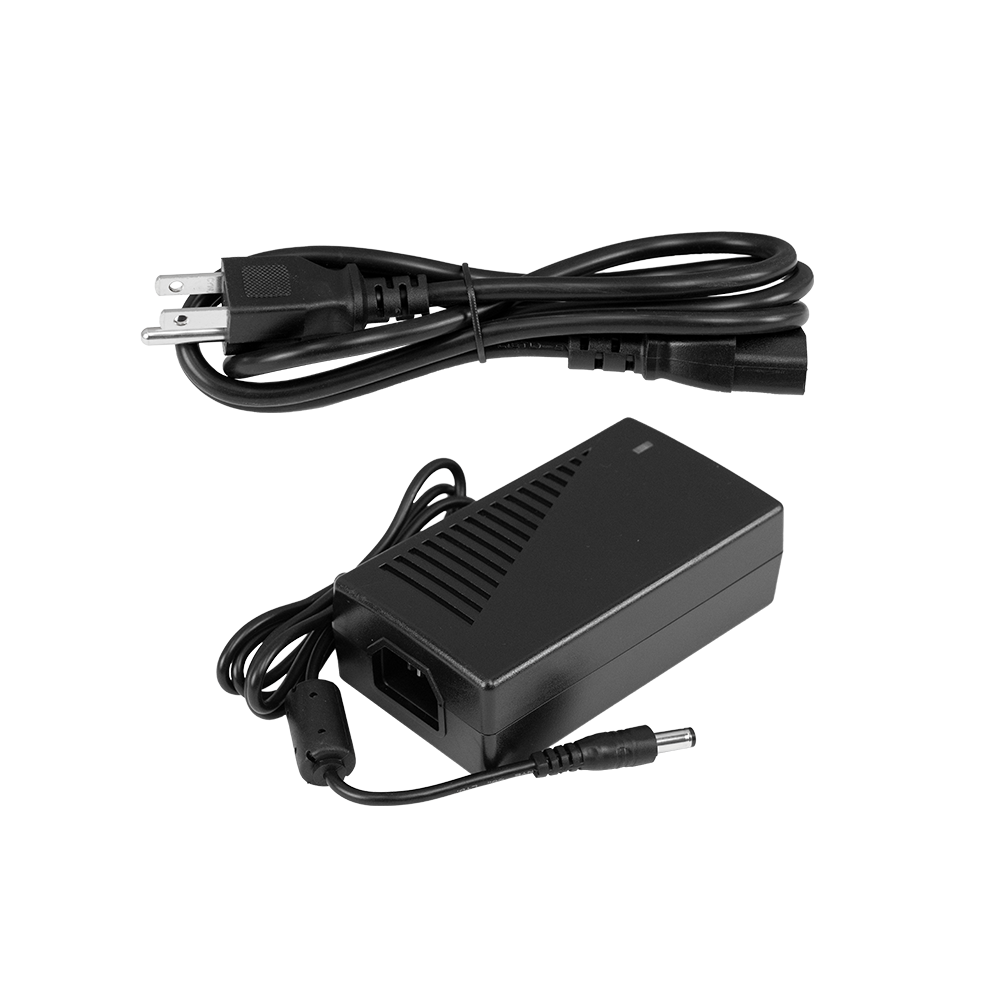

| Power | DC24V Less than 50W |
| Operation Temperature | 32°F to 120°F (0°C to 50°C) |
| VESA Size | VESA 100mm x 100mm |
| Weight | 28.2 lbs. (12.8kg) |
| Built-in 5MP IP Camera | |
| Video Output | RJ45 |
| TF Slot Capacity | 1TB Max |
| Browsers | Chrome, Firefox |
| Min Illumination | 0.1Lux (Color) |
| True WDR | Yes |
| Compression | H.264/H.265 |
| ONVIF | Profile S |
| Lens | 2.7mm |
| Recording | Local Micro SD, Remote FTP, TCP/UDP, CMS, RTSP, NVR |
| Protocols | HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTTP, PPPOE |
| Built-in 1080p HD-Analog Camera | |
| Sensor | 1/3" CMOS |
| WDR | WDR |
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
File
User Manual
0.5mb
