Speco - SB16S256TB - Storage Server for Speco Blue VMS Enterprise, 256TB
Product Overview
The Speco SB16S256TB is a 16-bay storage server for Speco Blue VMS Enterprise with a 256TB raw storage configuration. It provides hot-swappable drive support, hardware RAID, redundant power, and high-throughput recording for large-scale surveillance deployments.
Key Configuration
Model: SB16S256TB | Storage Capacity: 256TB raw | Drive Bays: 16 × 3.5-inch SATA hot-swappable | Operating System: Linux | Memory: 8GB DDR4 ECC | RAID: Hardware RAID 0, 1, 5, 6, 10 | Management: Web browser and Speco Blue VMS Enterprise | Compliance: NDAA Section 889 Part B
Key Features
- · 256TB raw storage configuration for Speco Blue VMS Enterprise

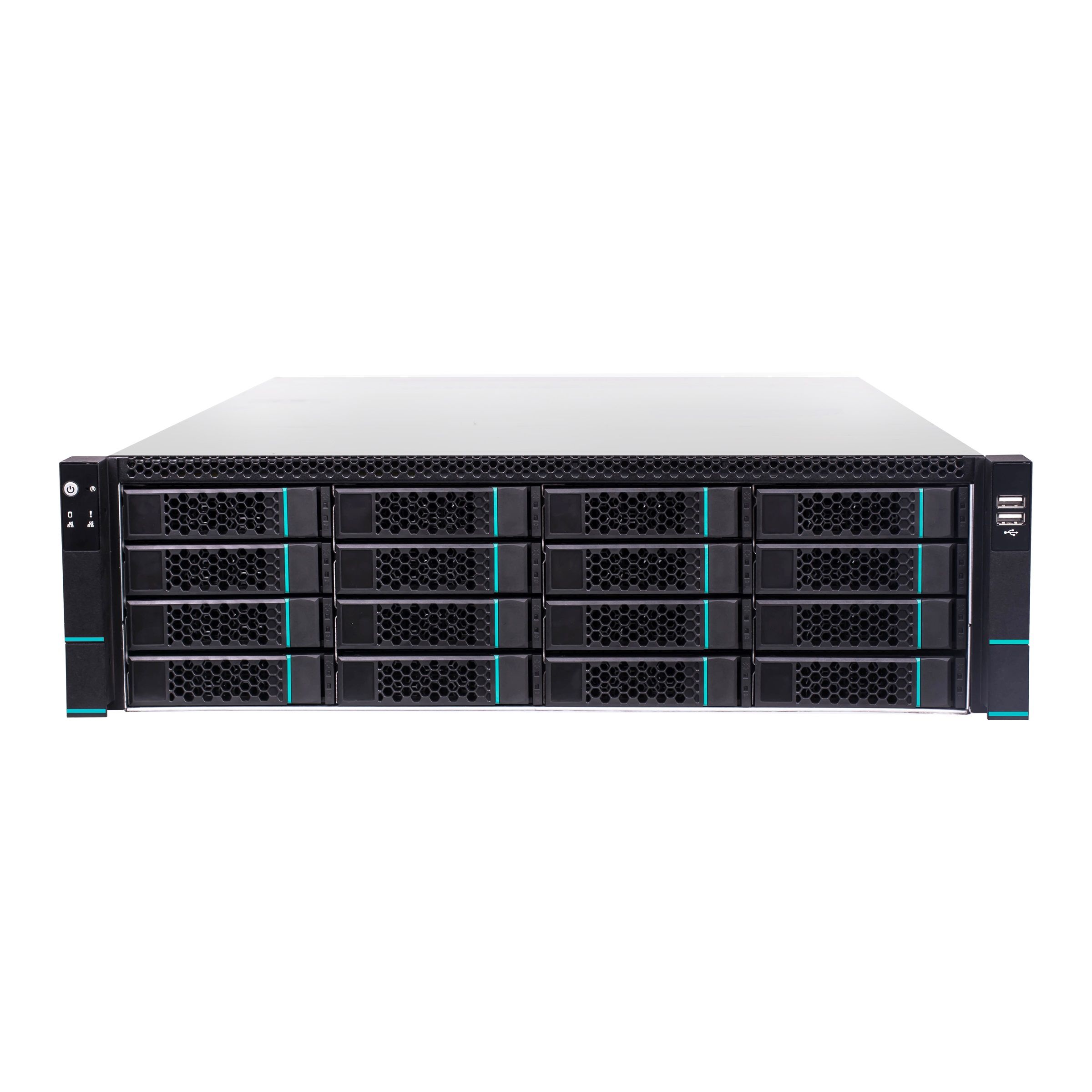

- · 16 hot-swappable 3.5-inch SATA drive bays
- · Independent drive brackets for simplified maintenance
- · Hardware RAID support for RAID 0, 1, 5, 6, and 10
- · Intel Xeon Processor E3 platform
- · 8GB DDR4 ECC memory
- · Redundant 550W power supply
- · Up to 800Mbps incoming and recording performance
- · Up to 96Mbps playback or live-view performance
- · NDAA Section 889 Part B compliant
Technical Context
The SB16S256TB can serve as the primary recording destination for Speco Blue installations or as an additional storage layer for recorder channels and redundancy. Hardware RAID provides configurable data-protection options, while the built-in index supports second-level search accuracy.
Installation Notes
Connect the storage server to compatible Speco Blue management servers or manage it through a web browser or Speco Blue VMS Enterprise. Install and service drives through the 16 hot-swappable SATA bays, configure the required RAID level, and connect the dual Gigabit Ethernet interfaces for network operation.
| General | |
| Model | SB16S256TB |
| Product Type | IP storage server for Speco Blue VMS Enterprise |
| Storage Capacity | 256TB raw storage |
| Operating System | Linux |
| Management | Web browser or Speco Blue VMS Enterprise |
| NDAA Compliance | Compliant with NDAA Section 889 Part B guidelines |
| System Hardware | |
| Processor | Intel Xeon E3 |
| Memory | 8GB DDR4 ECC |
| Drive Bays | 16 × 3.5" SATA hot-swappable bays |
| Drive Installation | Independent HDD brackets |
| Maximum Capacity per HDD | Up to 16TB |
| Expansion Slots | 1 × PCI-E 3.0 ×16 (x8) 1 × PCI-E 3.0 ×8 1 × PCI-E 3.0 ×8 (x4) |
| RAID and Storage | |
| RAID Controller | Hardware RAID controller |
| Supported RAID Levels | RAID 0, 1, 5, 6, 10 |
| Search | Built-in index with second-level accuracy |
| Network and Interfaces | |

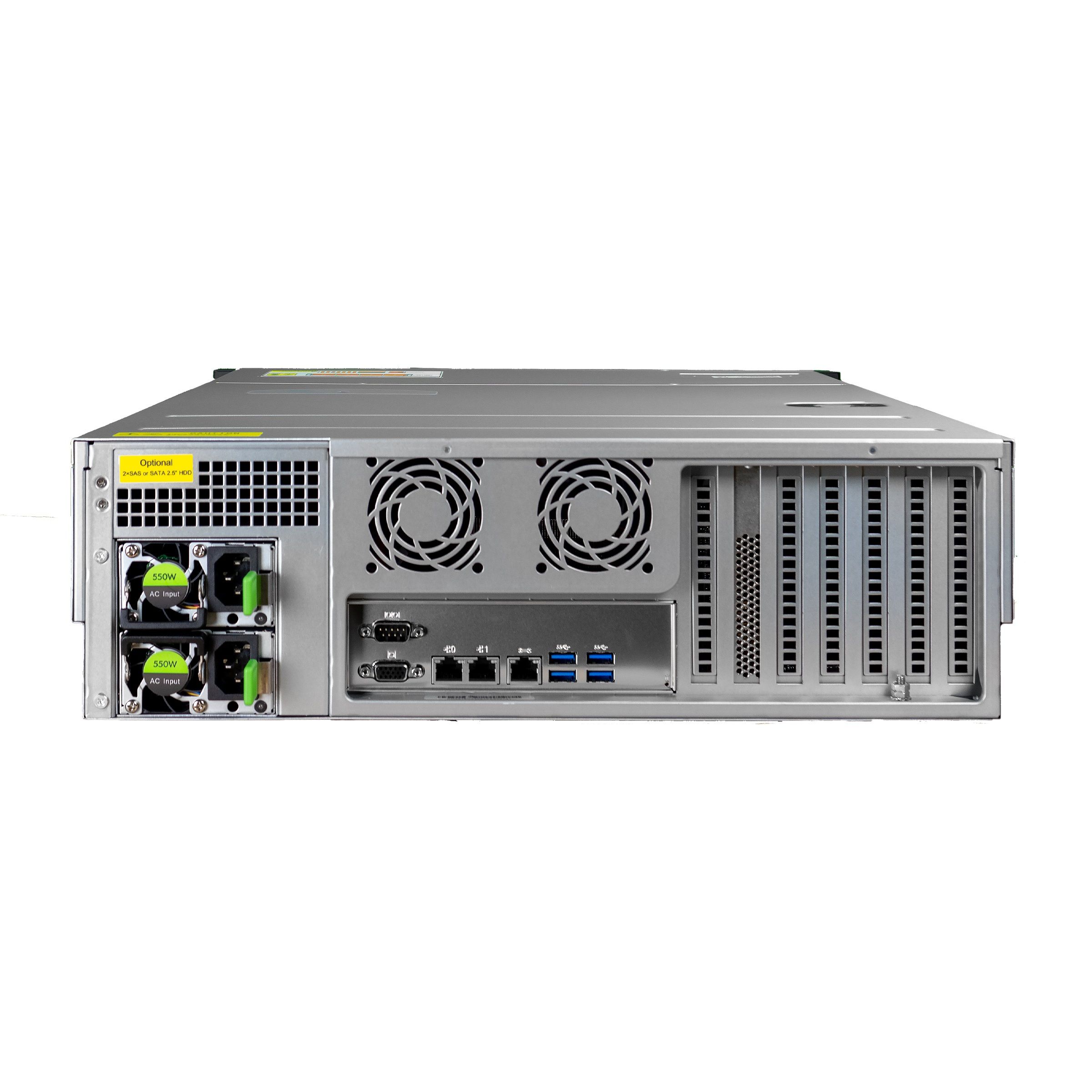

| Network Interfaces | 2 × 10/100/1000 Ethernet 1 × IPMI |
| IPMI | ASPEED AST2400 BMC with independent IPMI interface and iKVM support |
| Protocols | TCP, UDP, RTSP |
| Serial Interface | 1 × RS-232 |
| Video Output | VGA |
| USB Interfaces | Front: 2 × USB 2.0 Rear: 4 × USB 3.0 |
| Performance | |
| Incoming Throughput | Up to 800Mbps |
| Recording Throughput | Up to 800Mbps |
| Playback / Live View Throughput | Up to 96Mbps |
| Power and Environmental | |
| Power Supply | 550W redundant power supply |
| Input Power | 100-240V, 7-3.4A, 50/60Hz |
| Working Temperature | 50°F to 95°F |
| Standby Temperature | -40°F to 131°F ambient |
| Relative Humidity | Less than 90% RH at 95°F during operation |
| Noise Level | Less than 50dBA during operation |
