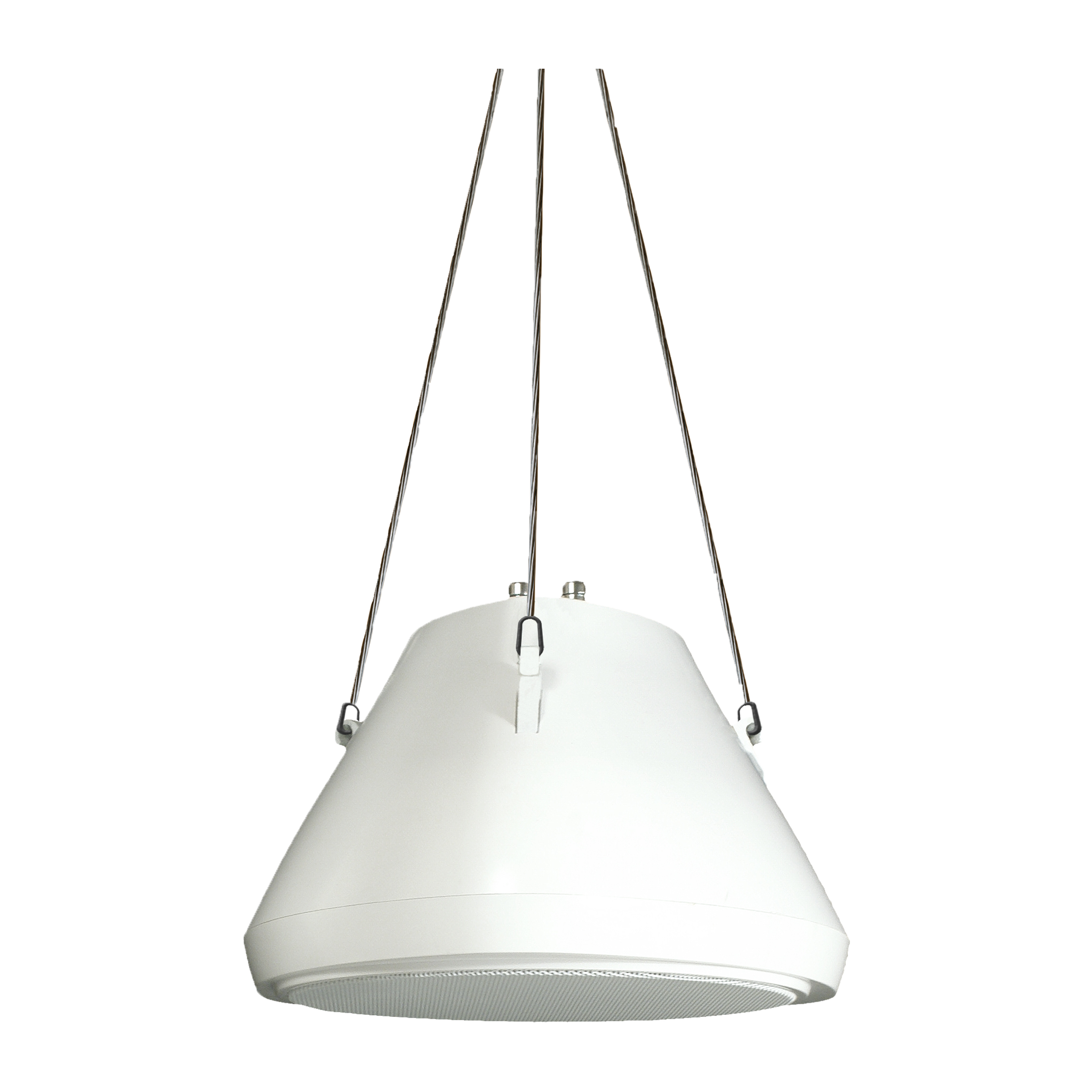

Speco - SP30PT - 30 Watt RMS 5" Pendant Speaker with Hanging Chain
Part number:
Price:
Product Overview
• Attractive, 3-hook, enclosed ABS design • 70/25V selectable transformer • Press terminals for wiring • Built-in safety loop for additional mounting security • Includes 11.25” hanging apparatus • Lifetime warranty *also available in black **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: SP30PT
Installation Notes
3.98” (Dia.) top / 8.6” (Dia.) Bottom / 5.32” (H)
| Full Specifications | |
| Woofer Size | 5 |
| Speaker Color | White |
| RMS Power | 30W |
| Max. Power | 60W |
| Transformer Type | 70/25V (selectable) |
| Transformer Power Type | 30W, 15W, 7.5W, 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms |
| Termination Type | Press terminal |
| Sensitivity (1W/1M) | 92dB |
| Maximum SPL (Pax/1M) | 93.4dB |
| Driver Impedance | 8 Ohms |
| Magnet | 11 oz. ferrite |
| Frequency Response Range | 90Hz ~ 20kHz |
| Dispersion @ 1000Hz | 100º Conical |
| Driver | 5” polypropylene woofer |
| 0.5” mylar tweeter | |
| Speaker Dimensions | 3.98” (Dia.) top / 8.6” (Dia.) Bottom / 5.32” (H) |
| Weight | 5 lbs. |
| Material | Body: ABS |
| Grille | Metal |
Name
Description
Size
Downloads
File
Installation Guide
0.7mb
File
Specification Sheet
0.3mb
