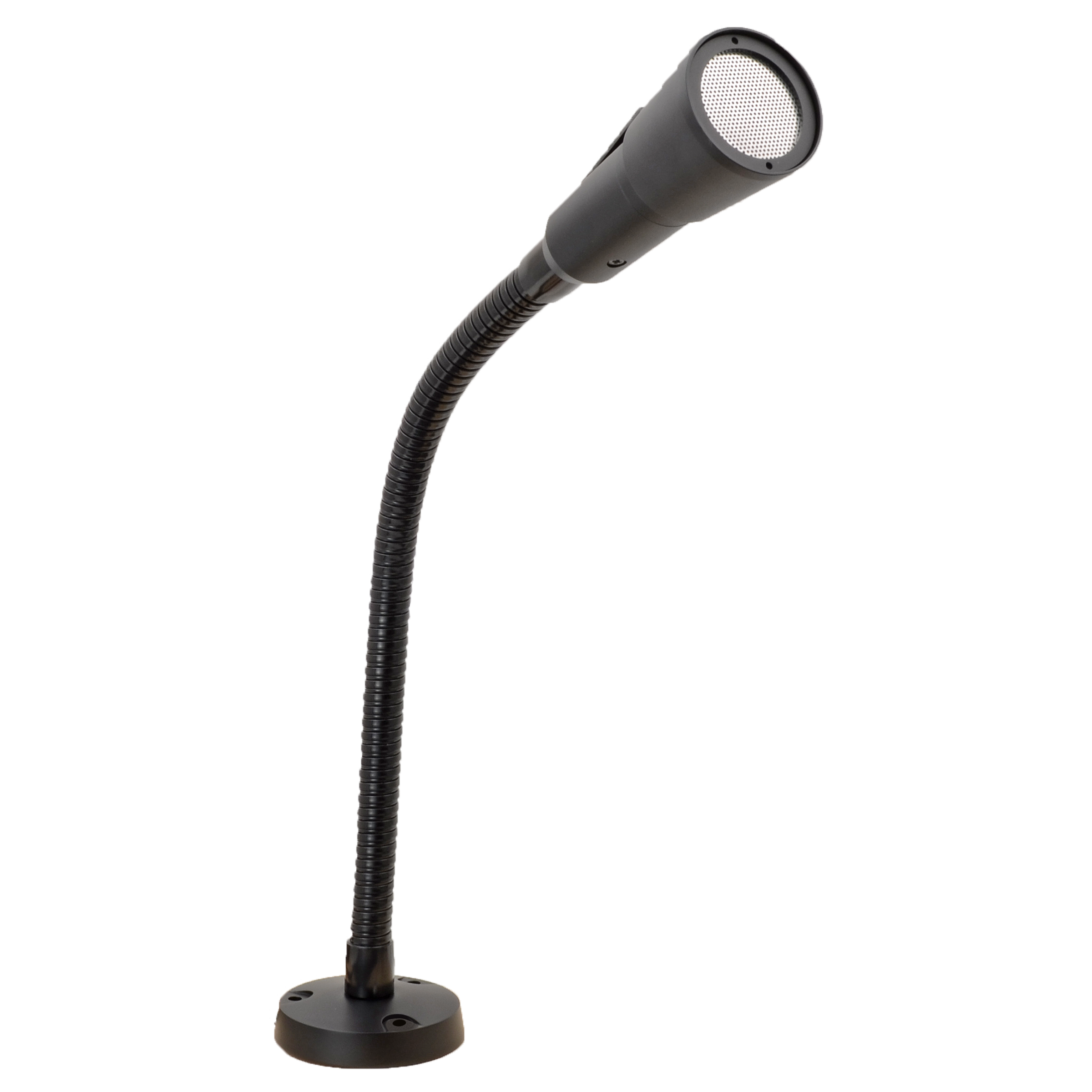

Product Overview
• Uni-directional • 16 ¼” gooseneck • Impedance: 500 ohms • Mounting base **Products are in compliance with NDAA Section 889 Part B Guidelines Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Key Configuration
Model: MGS1
Key Features
- • Capsule Type: Condenser.
- • Frequency Response: 50Hz – 16kHz.
- • Impedance (@1kHz): 200 ohms.
- • Sensitivity: -42dB±3dB.
- • Pattern: Ultra-Cardioid.
| Full Specifications | |
| Impedance | 500 ohms |
| Capsule Type | Condenser |
| Frequency Response | 50Hz – 16kHz |
| Impedance (@1kHz) | 200 ohms |
| Sensitivity | -42dB±3dB |
| Pattern | Ultra-Cardioid |
| Requires | two AA batteries (not included) |
| Momentary switch | for priority paging & lock down switch for continuous use |
| Gooseneck extension | 6” and 5’ cord |
| Connector | Cannon 3 pin XLR male |
| Directional | Uni-directional |
| Gooseneck length | 16 ¼” |
| Mounting base | |
