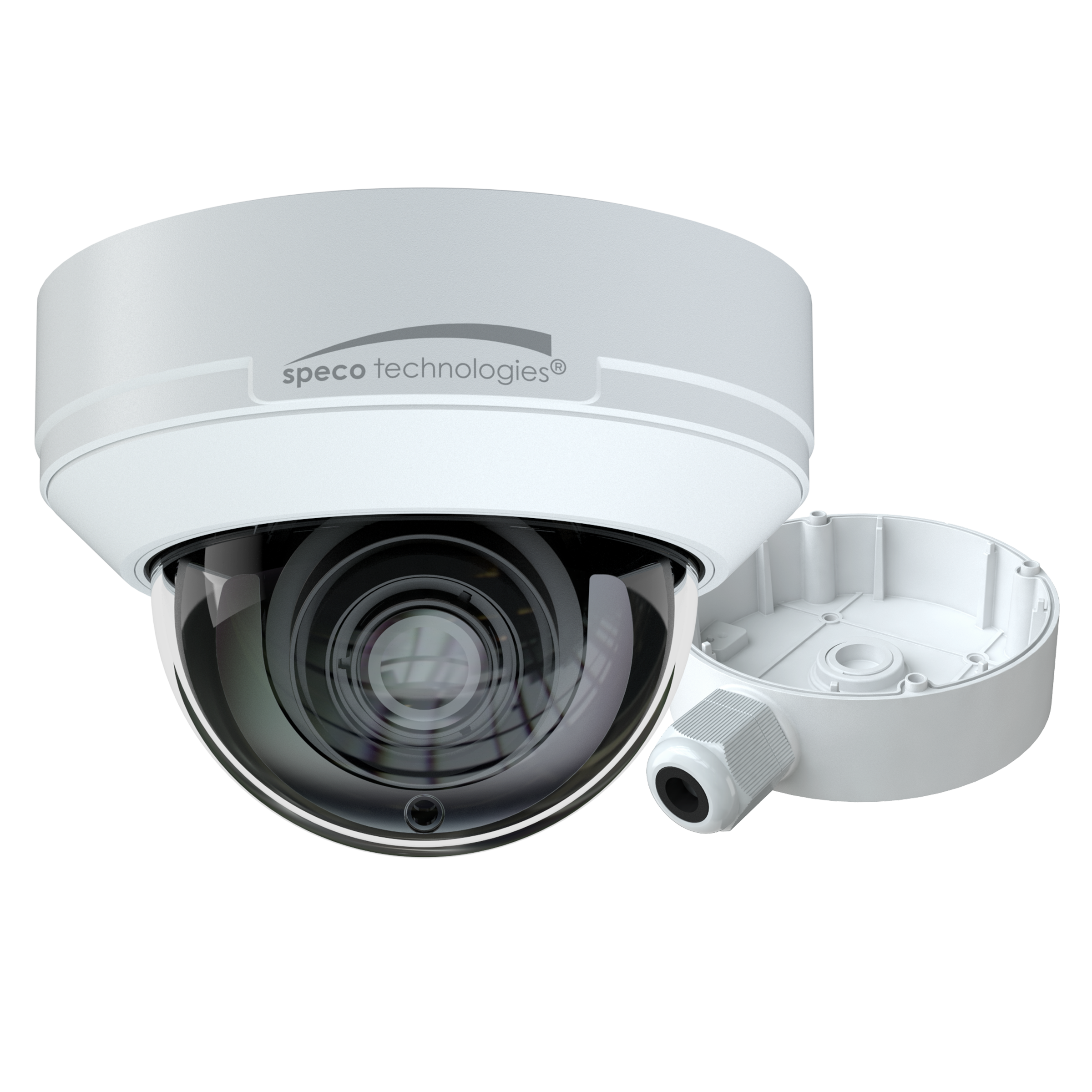

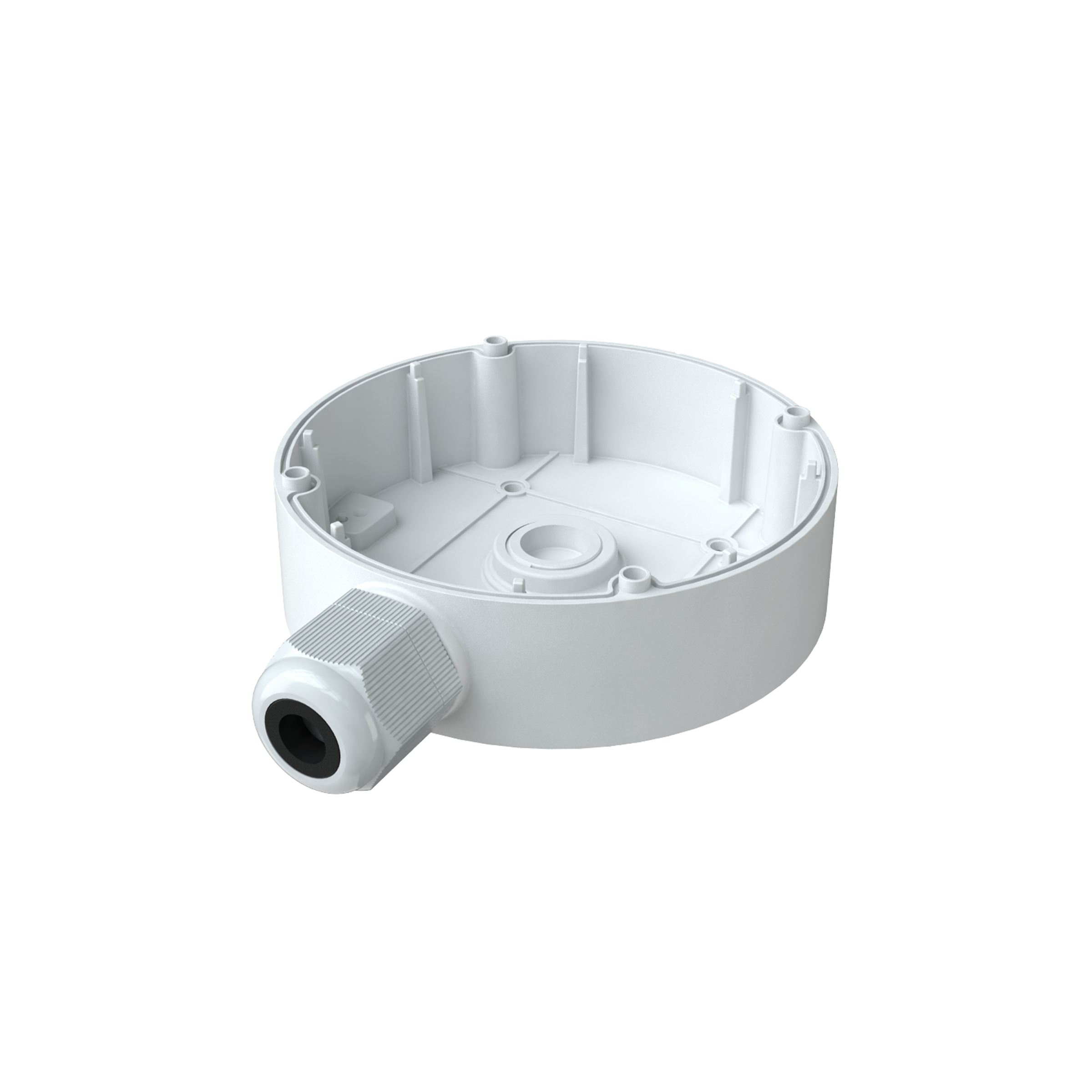

Speco - VLD9M - 2MP HD-TVI IR Motorized Dome Camera with Junction Box
Part number:
Price:
Product Overview

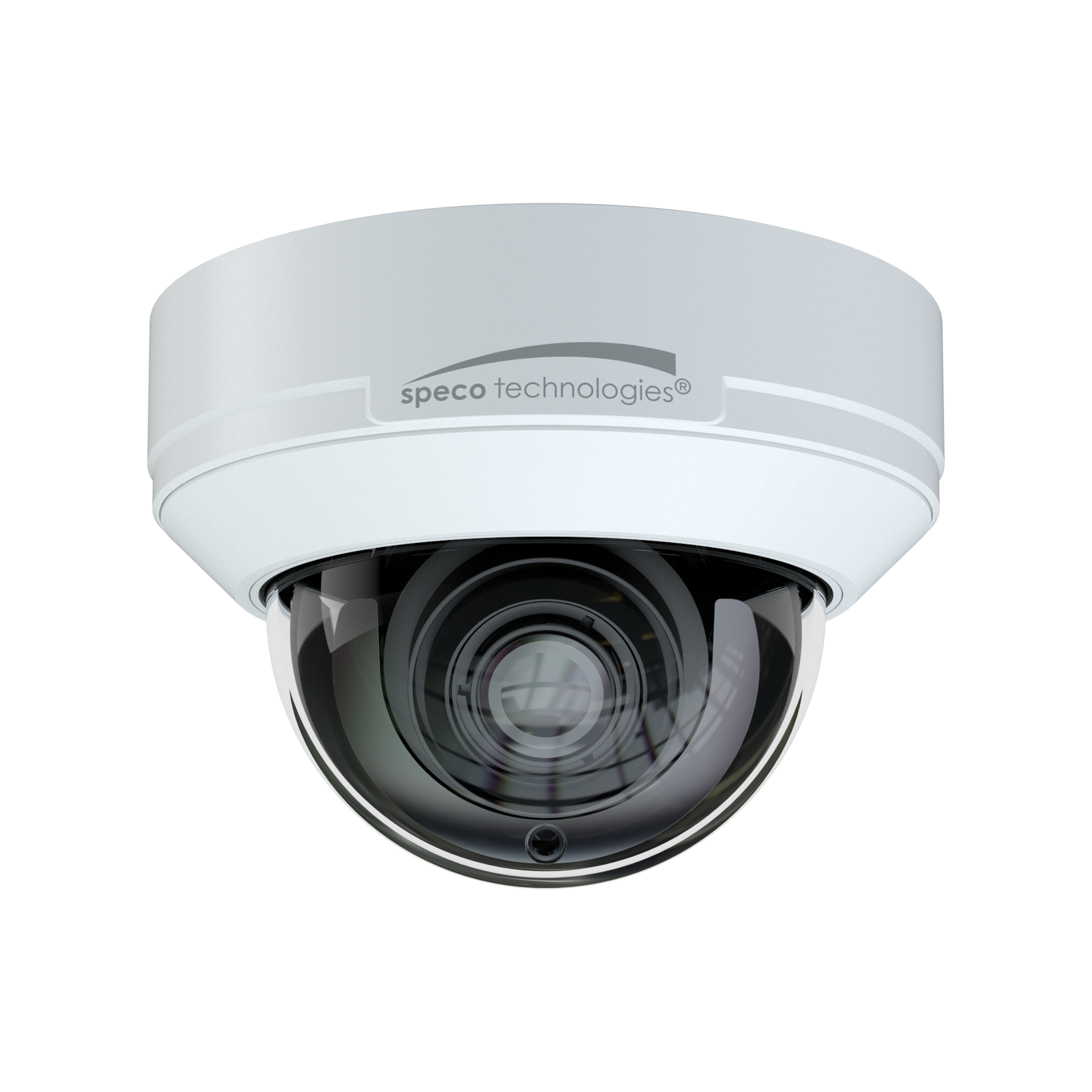

2MP HD-TVI IR Motorized Dome Camera with Junction Box
Key Configuration
Model: VLD9M
Key Features
- • Supports up to 2MP @ 30fps.
- • Full HD resolution over coax.
- • Supports HD-TVI, CVI, AHD, and 960H Analog.
- • IR Range: up to 98’ (depending on scene reflection).
- • True WDR (wide dynamic range).
Installation Notes
5.55” (Dia.) x 3.94” (L)
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | White |
| Camera Specifications | |
| Image Sensor | 1/2.8” CMOS, 2MP |
| Minimum Illumination | Color: 0.001 lux @F1.2, (AGC ON); BW: 0 lux (IR ON) |
| Image Size | 1920 x 1080 |
| Video Output | AHD/TVI/CVI/CVBS |
| Image System | PAL/NTSC |
| Electronic Shutter | Auto: 1/25s ~ 1/50000s (PAL); 1/30s ~ 1/50000s (NTSC) |
| IR Distance | 65.6ft ~ 98.4.ft |
| Frame Rate | 30fps (60Hz); 25fps (50Hz) |
| Lens Mount | D14 |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Functions | |
| Function Control | HDMI |
| Day & Night | Yes |
| WDR | Yes |
| 3D DNR | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| Compensation | Sharpness |
| BLC | Yes |
| Mirror | Yes |
| Image Setting | Defect Correction |
| Angle Adjustment | Auto |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | IR OFF: < 1.5W; IR ON: < 5W |
| Operating Temperature | -22°F ~ 122°F |
| Operating Humidity | 10% ~ 90% RH |
| Unit Dimensions | 5.55” (Dia.) x 3.94” (L) |
| Unit Weight | 1.81 lbs. |
