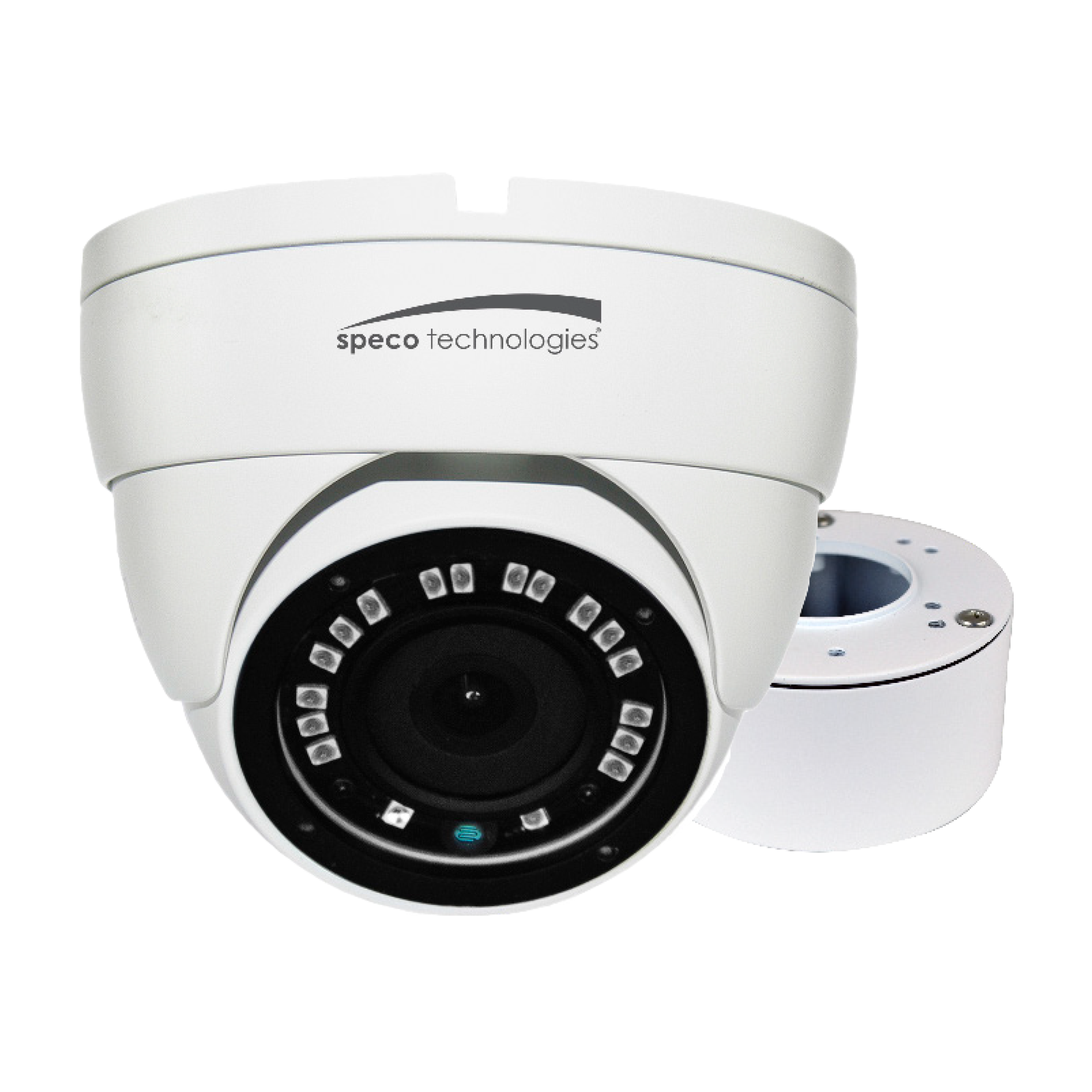

Speco - VLDT4W - 2MP HD-TVI Eyeball Camera, Included Junction Box
Part number:
Price:
Product Overview
• 3.6mm fixed lens • 1/2.9” 2MP Sony CMOS • Supports multiple video signal outputs (TVI / AHD / CVI / CVBS)* • 18 built-in IR LEDs • IP66 compliant, weather resistant • Full OSD operation through UTC (up the coax) • Junction box included • 5 year warranty *camera comes defaulted to HD-TVI **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: VLDT4W
Installation Notes
3.7" (W) x 3.15" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.9" 2MP Sony CMOS |
| Maximum Resolution | 1920x1080 |
| Field of View | 83° ± 3° |
| Minimum Illumination | 0 lux |
| Number of IR LEDs | 18 |
| IR Distance | Up to 65 ft. (depending on scene reflection) |
| White Balance | ATW |
| Blacklight Compensation | Auto |
| Electronic Shutter Speed | NTSC:1/60-1/100,000 PAL: 1/50-1/100,000 |
| AGC | On/Off |
| DNR | On/Off |
| WDR | On/Off |
| Day/Night | Auto / Color / BW / EXT |
| OSD | UTC |
| Gamma | 0.45 typ. |
| Scanning System | Progressive |
| Video Signal Output | HD-TVI / AHD / CVI / CVBS |
| Operating Specifications | |
| Power Supply | 12VDC (power supply not included) |
| Power Consumption | Max. 400mA |
| Operating Temperature | -22°F - 104°F |
| Storage Temperature | -22°F - 104°F |
| Unit Dimensions | 3.7" (W) x 3.15" (H) |
| Unit Weight | 11.64 oz. |
