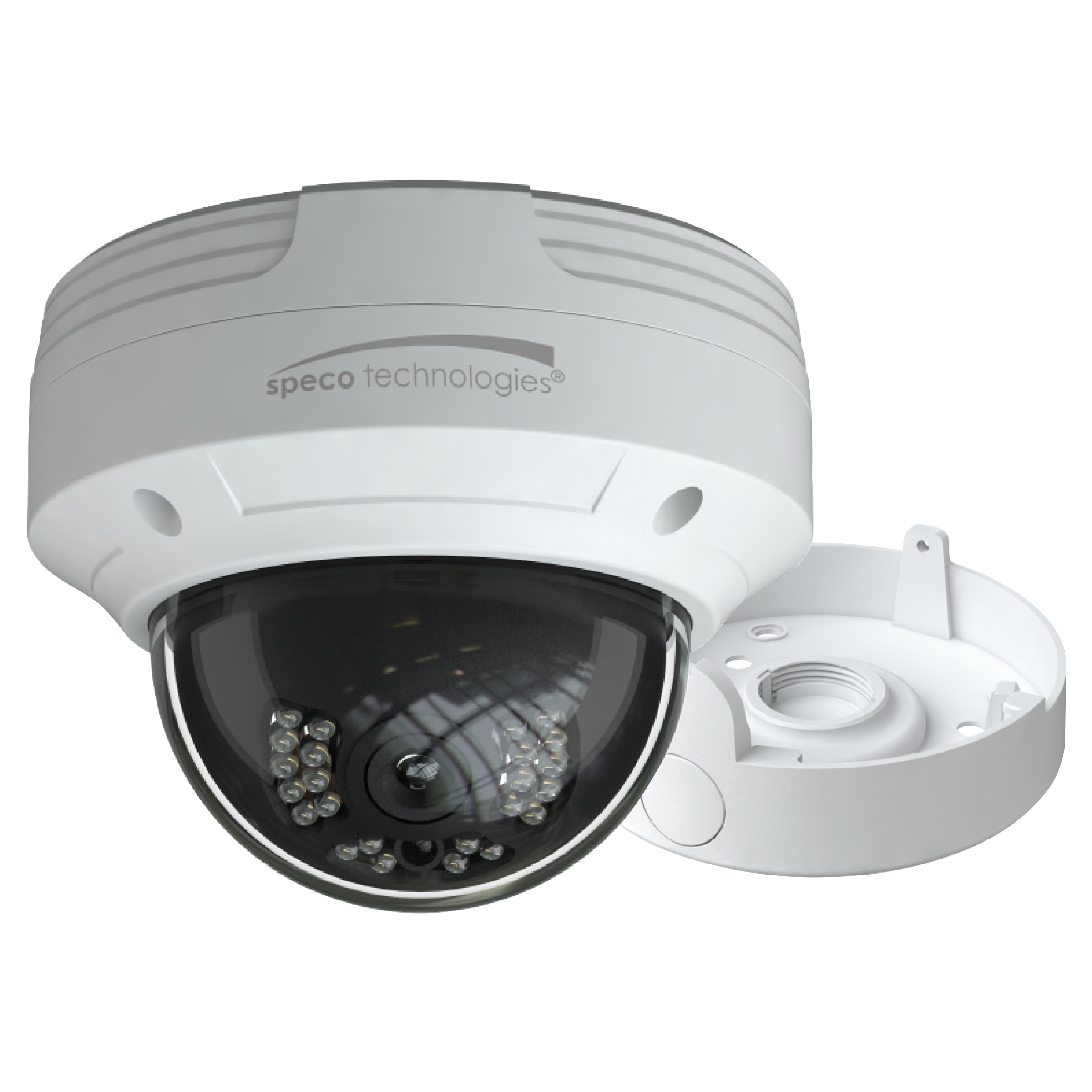

Speco - VLDT5W - 2MP HD-TVI Dome Camera, IR, Included Junction Box
Part number:
Price:
Product Overview
•Full HD resolution over coax (HD-TVI) •Supports up to Full HD 1080p @ 30 fps •IR Range: 65’ (depending on scene reflection) •3 axis lens mount •Multi-format HD (TVI, CVI, AHD, CVBS)* •Signal distance up to 1600 ft. •True WDR •Full OSD operation via UTC (up the coax) •12VDC operation (power supply not included) •IP66 compliant, weather resistant •5 year warranty
Key Configuration
Model: VLDT5W
Key Features
- • Full HD resolution over coax (HD-TVI).
- • Supports up to Full HD 1080p @ 30 fps.
- • IR Range: 65’ (depending on scene reflection).
- • 3 axis lens mount.
- • Multi-format HD (TVI, CVI, AHD, CVBS)*.
Installation Notes
4.5" (W) x 5" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 1920 x 1080 |
| Minimum Illumination | Color: 0.001 lux @ F1.2 |
| S/N Ratio | greater than 52 dB |
| Number IR LEDs | 24 |
| Field of View (H) | 80° - 38° |
| Compensation | WDR (120 dB), BLC, HLC |
| Electronic Shutter Speed | 1/60 sec. - 1/100000 sec. |
| DNR | Yes |
| Video Output | TVI / CVI / AHD / CVBS |
| Image System | PAL / NTSC |
| Field of View (Horizontal) | 115.4° |
| Field of View (Vertical) | 83.4° |
| Operating & Unit Specifications | |
| Power | 12VDC (power supply not included) |
| Power Consumption | IR off (less than 1W) IR on (less than 3W) |
| Operating Temperature | -4°F - 104°F |
| Unit Dimensions | 4.5" (W) x 5" (H) |
| Unit Weight | 1.1 lbs. |
Name
Description
Size
Downloads
File
User Manual
3.3mb
File
Specification Sheet
0.6mb
