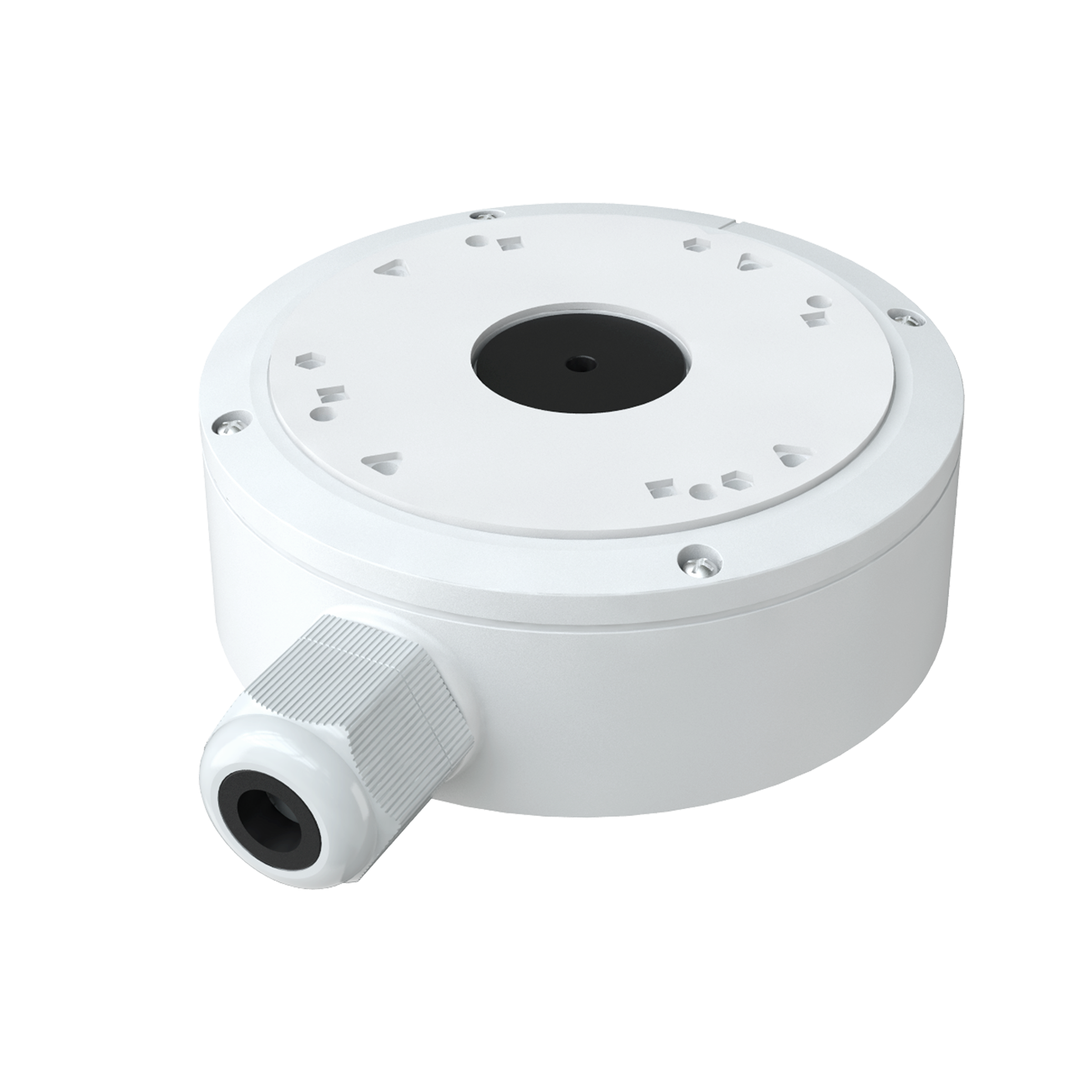

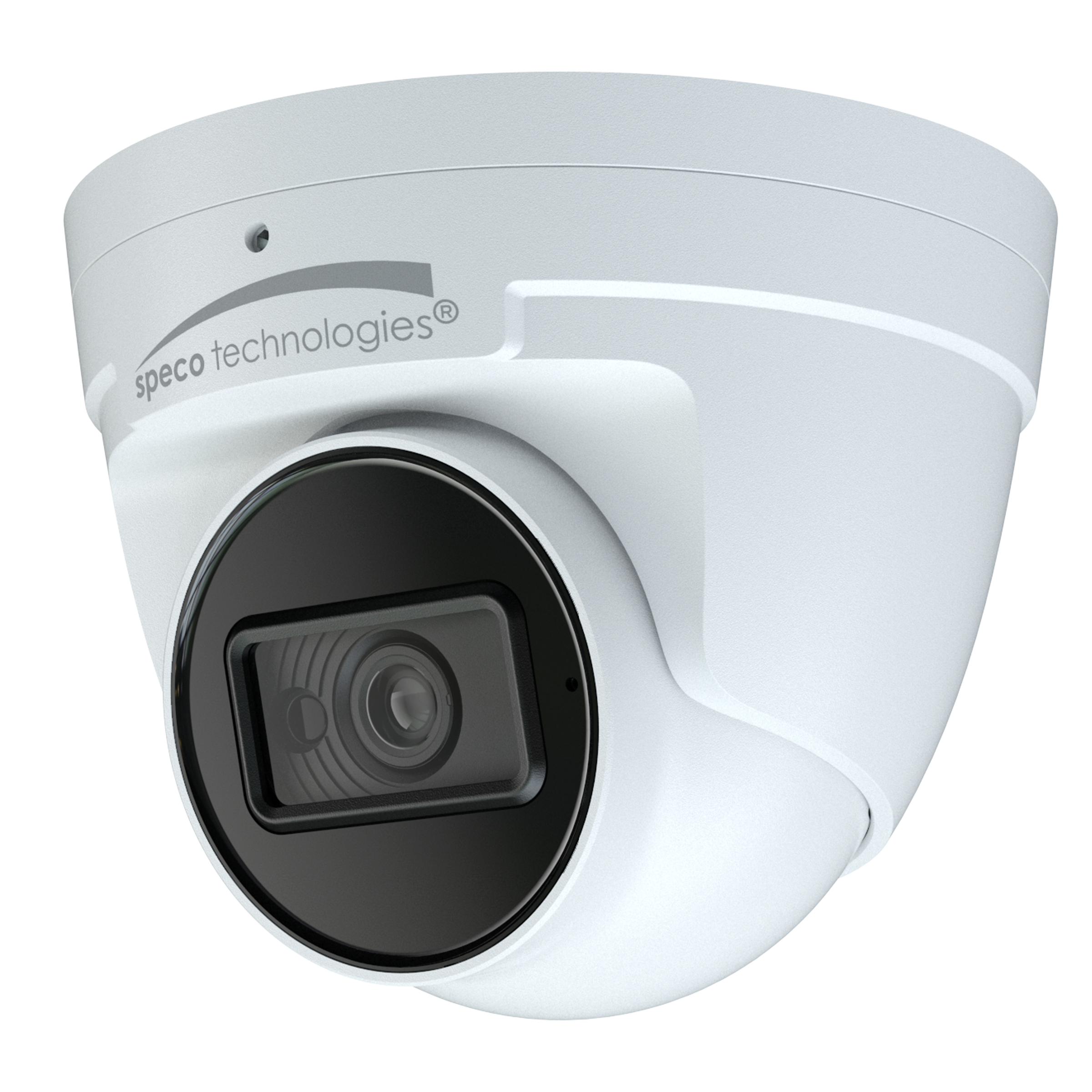

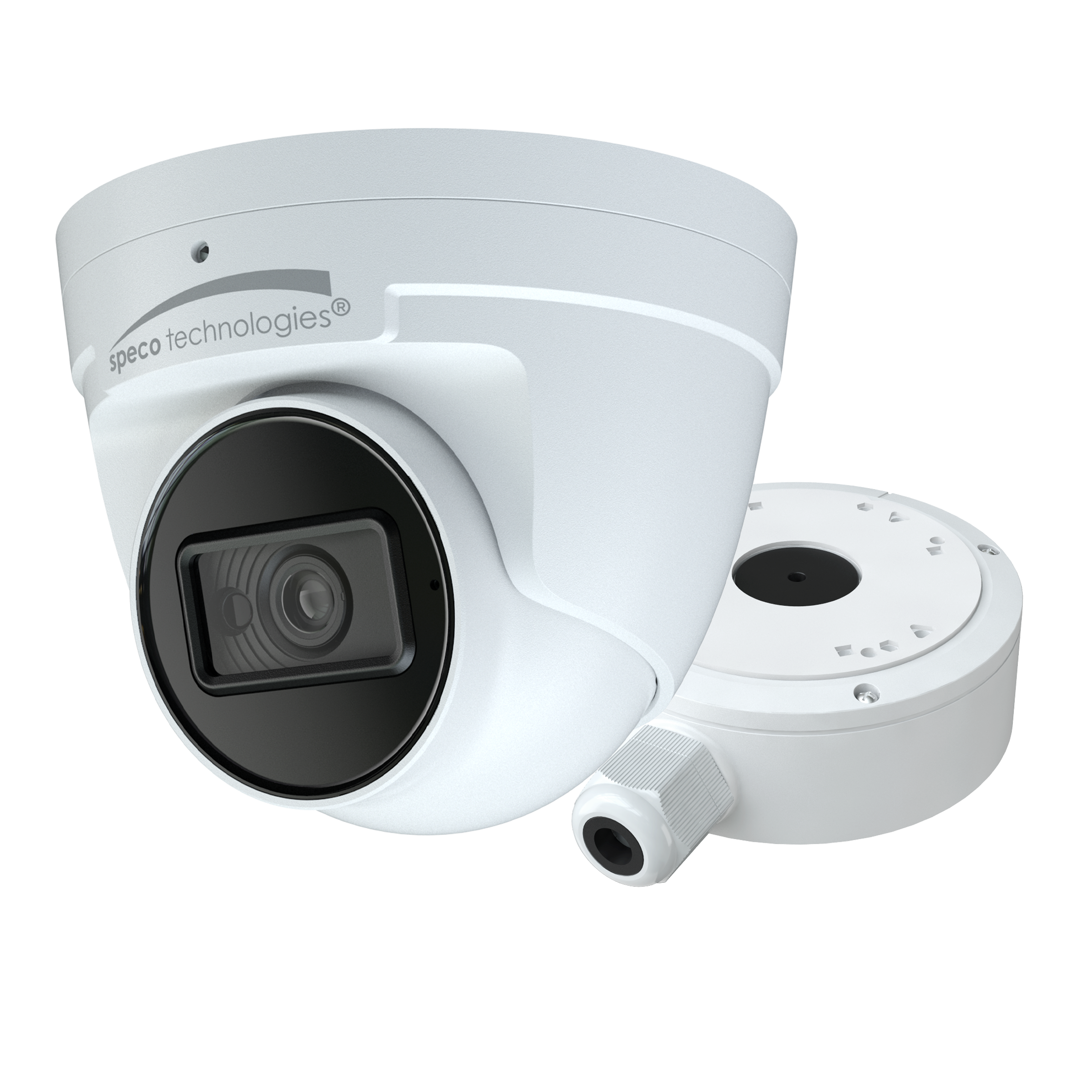

Speco - VLT9 - 2MP HD-TVI IR Turret Camera with Included Junction Box
Part number:
Price:
Product Overview
Full HD 1080P @ 30FPS, Built-in IR LEDs, IR Distance: 98’ (depending on scene reflection), Digital WDR (wide dynamic range) operation, 12VDC Operation (power supply not included), IP67 weather resistance, NDAA Compliant*
Key Configuration
Model: VLT9
Key Features
- • 5 year warranty.
Installation Notes
4.67" (Dia.) x 3.69" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 2MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD/TVI/CVI/CVBS |
| Image System | PAL/NTSC |
| Electronic Shutter Speed | Auto; 1/50s-1/10000s (PAL); 1/60s-1/10000s (NTSC) |
| Minimum Illumination | Color: 0.005lux @ F1.2 (AGC ON); 0 lux IR |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Function Control | OSD (UTC Control) |
| Day/Night | Yes |
| Digital WDR | Yes |
| Digital DNR | Yes, 2D DNR |
| AGC | Yes |
| White Balance | Auto |
| Defog | No |
| Front Light Compensation | No |
| BLC | Yes |
| HLC | Yes |
| Mirror | No |
| Sharpness | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Angle Adjustment | Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotation: 0° ~ 360° |
| Operating & Unit Specifications | |
| Power | 12VDC (±10%) |
| Power Consumption | IR OFF ≤1W; IR ON ≤4W |
| Operating Temperature | -22°F - 122°F |
| Relative Humidity | 10% ~ 90% |
| Unit Dimensions | 4.67" (Dia.) x 3.69" (H) |
| Unit Weight | 0.86lbs |
