Speco - WB86T - Wall Baffle w/ 70V Transformer Dial
Part number:
Price:
Product Overview

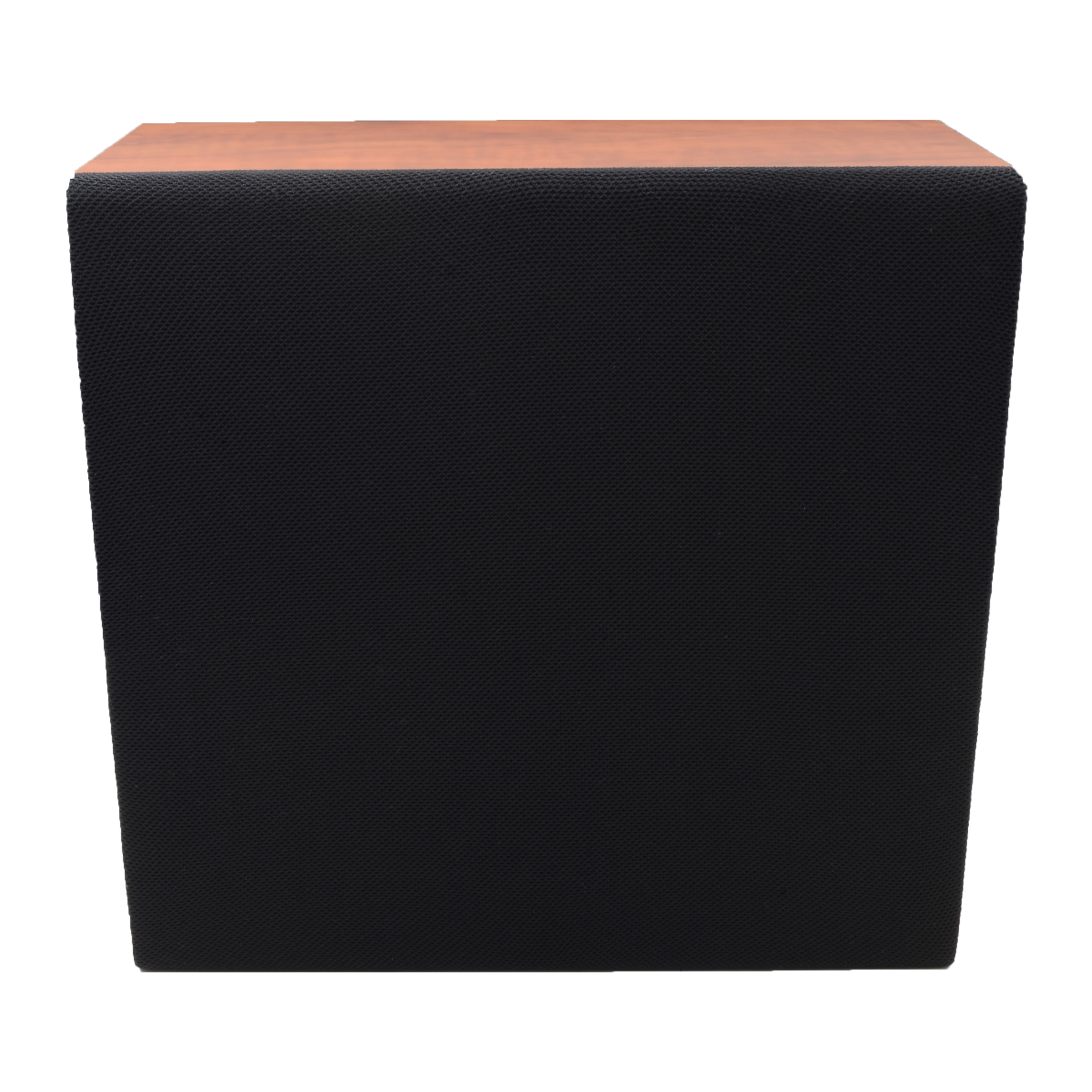

• Solid wood construction<br>• Fully enclosed for internal component protection<br>• Black cloth grille<br>• 70/25V selectable transformer<br>• Press terminals for wiring<br>• Lifetime warranty<br>**Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: WB86T | Woofer Size: 8
Installation Notes

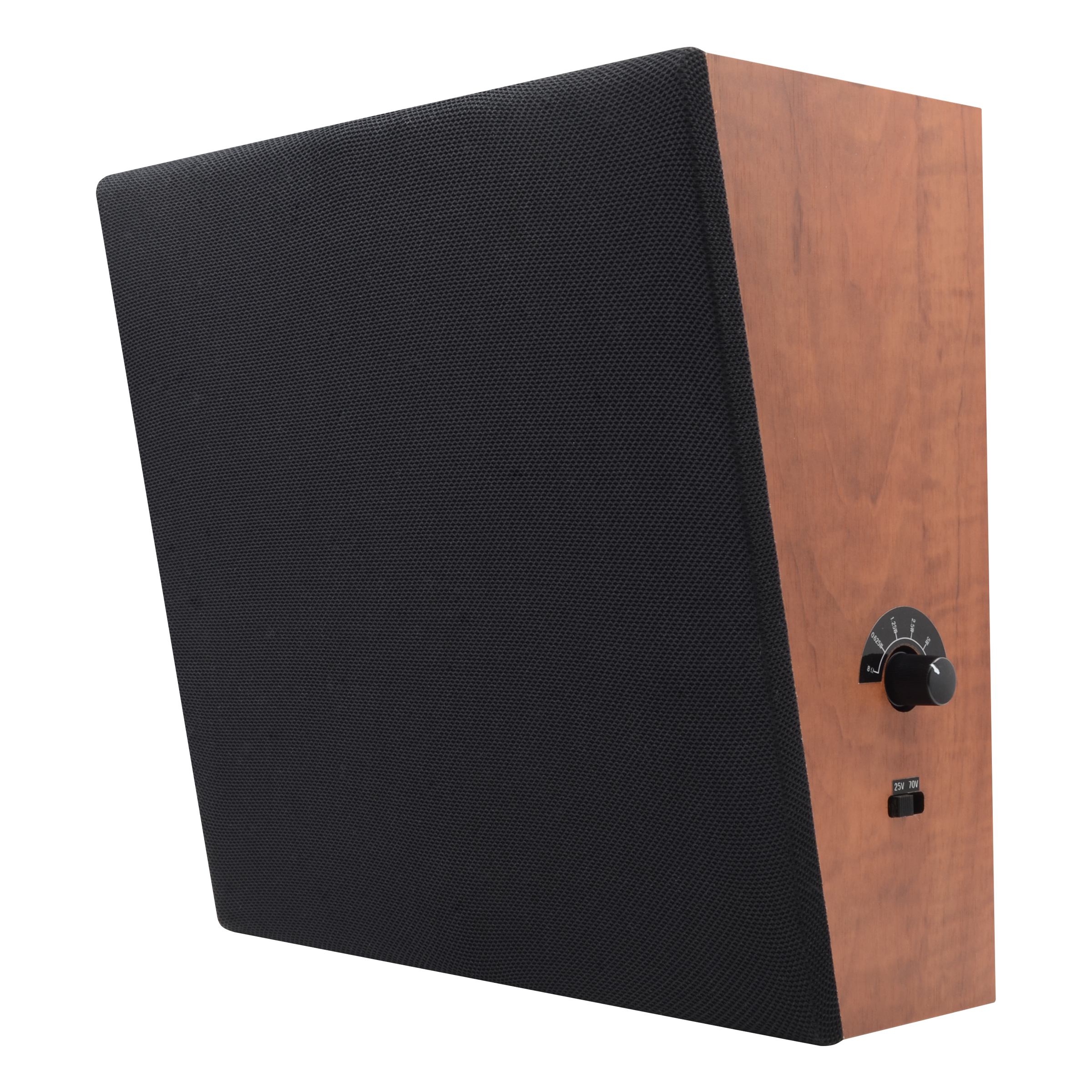

10” (W) x 10” (H) x 5.43” top / 3.19” bottom (D)
| Full Specifications | |
| Woofer Size | 8 |
| RMS Power | 10W |
| Max. Power | 15W |

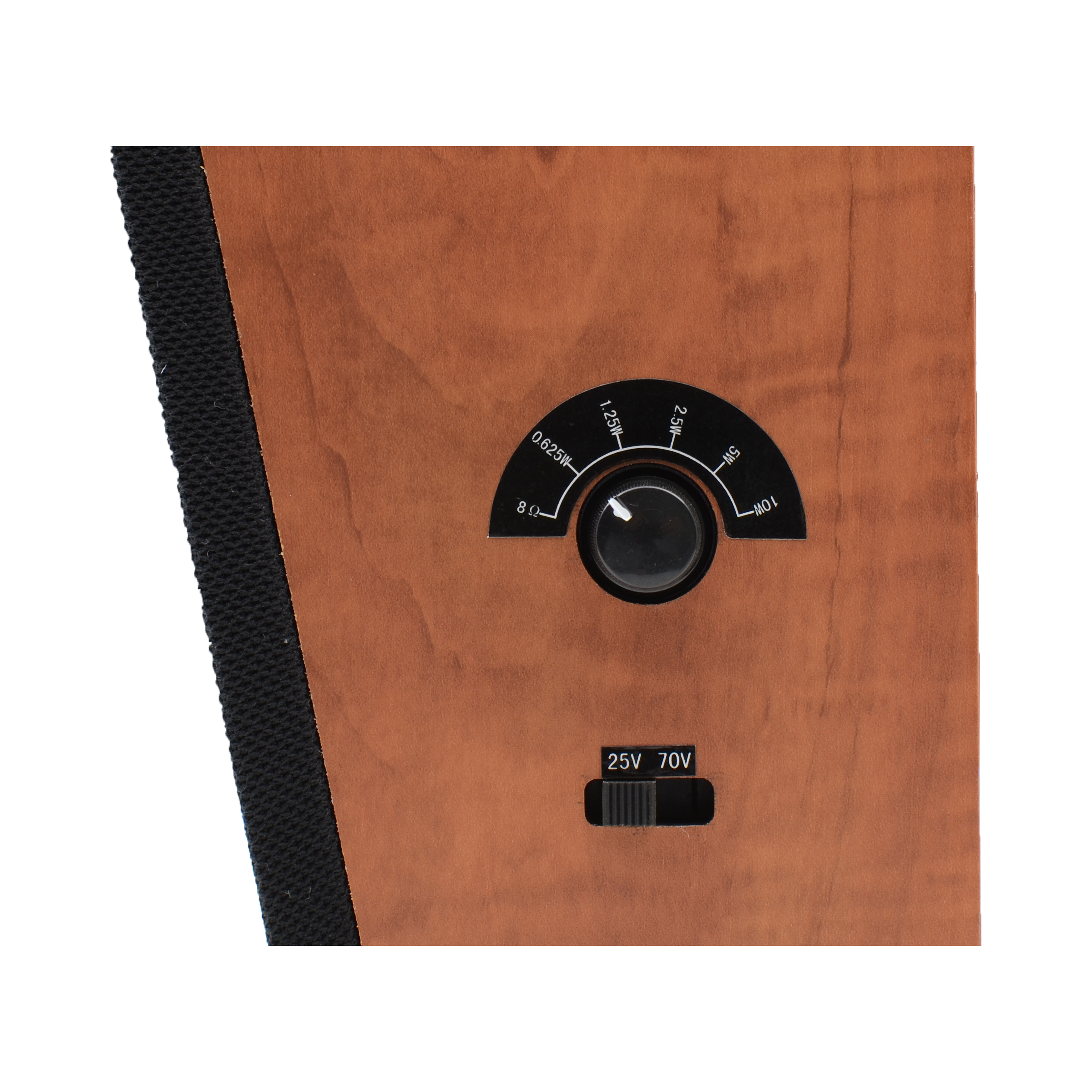

| Transformer Type | 70/25V (selectable) |
| Transformer Power Type | 10W, 5W, 2.5W, 1.25W, 0.625W & 8 Ohms |

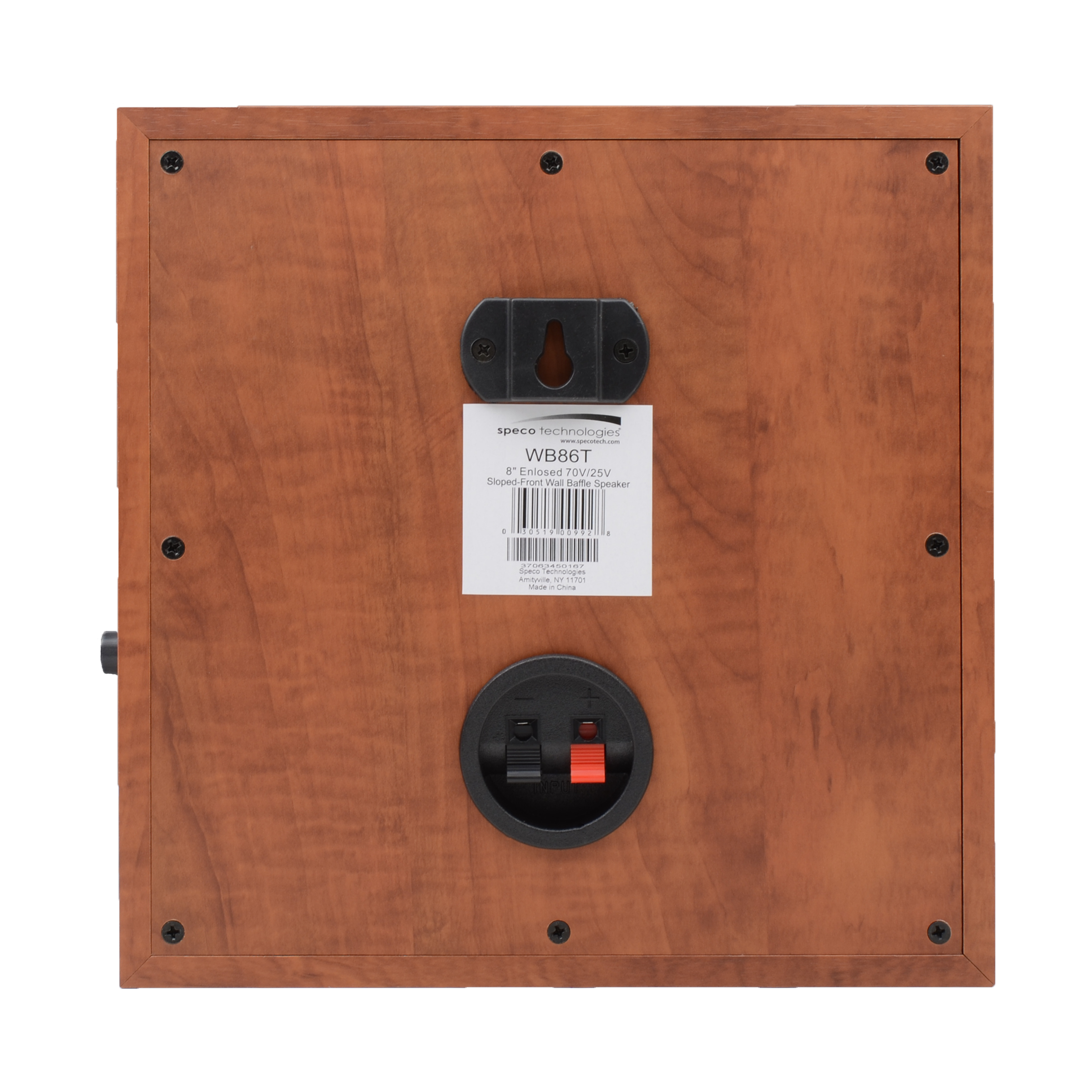

| Termination Type | Press terminal |
| Sensitivity (1W/1M) | 93dB |
| Maximum SPL (Pax/1M) | 105dB |
| Driver Impedance | 8 Ohms |
| Magnet | 5 oz. ferrite |
| Frequency Response Range | 85Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120º Conical |
| Driver | 8” paper cone woofer, 8” dual cone tweeter |
| Speaker Dimensions | 10” (W) x 10” (H) x 5.43” top / 3.19” bottom (D) |
| Mounting Dimensions | 7.625” (Dia.) |
| Weight | 6.9 lbs. |
| Material | Baffle: Wood Grille: Cloth |
| Color | Brown body, black grille |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.3mb
