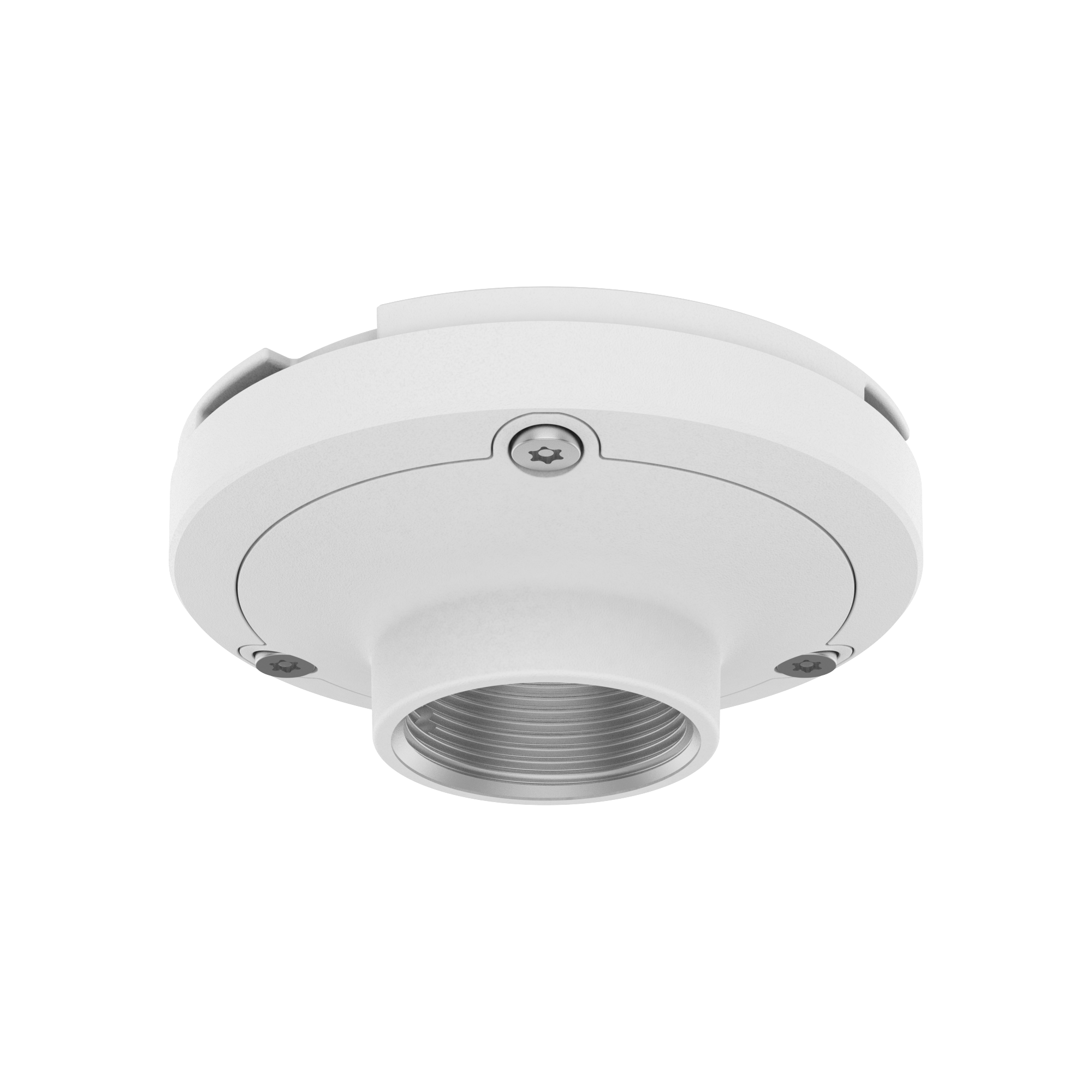

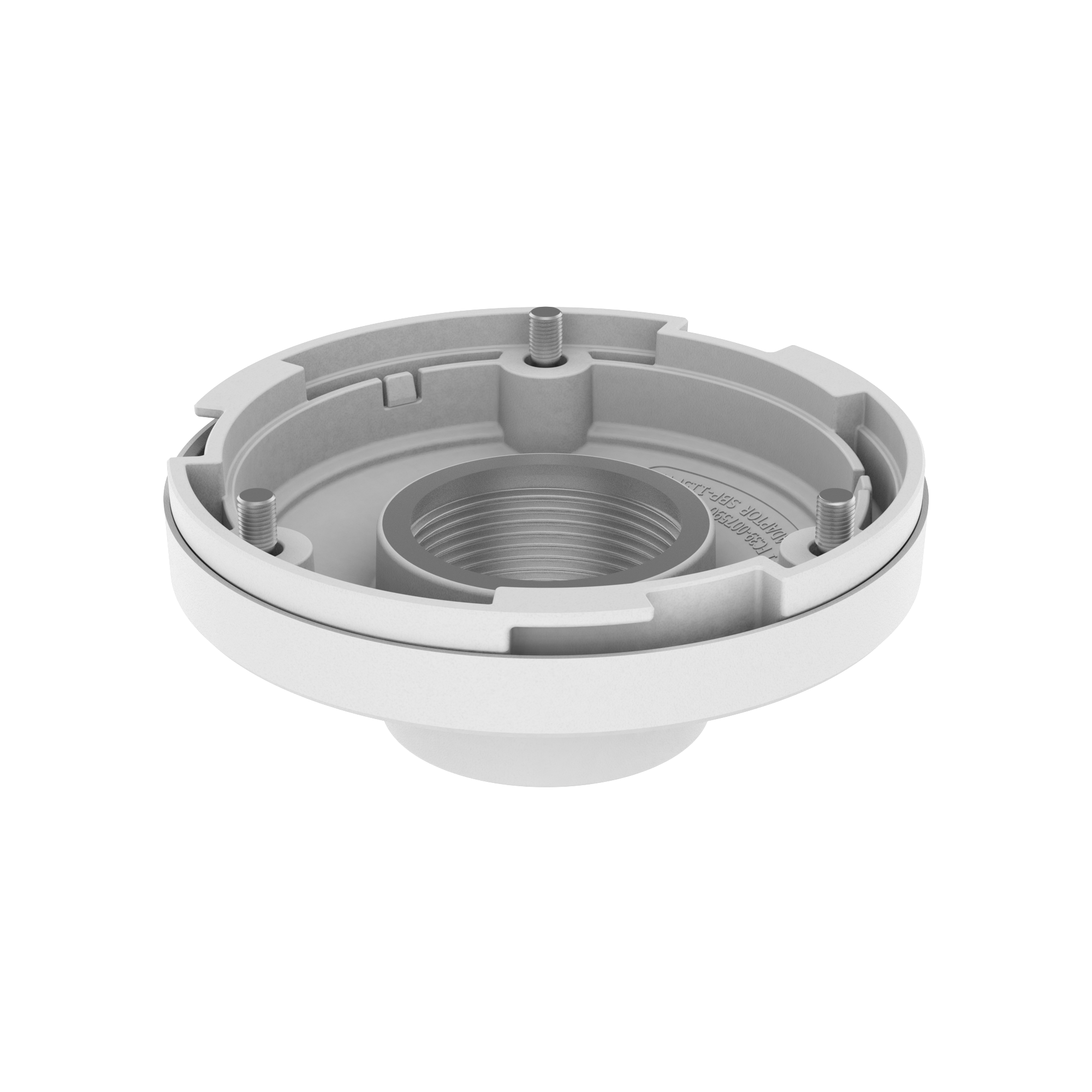

Hanwha - SBP-115PFA - 1.5" PF Adaptor for Wall and Pole Mount, Pack of 3
Part number:
SBP-115PFA
Price:
The Hanwha SBP-115PFA is a professional-grade mechanical adapter plate designed to connect specific Hanwha fixed dome pendant caps to large-format wall and pole mounts. It provides the essential physical conversion needed to secure a camera assembly to high-capacity industrial mounting structures.
Key Features:
• Color: White
• Size: TR30
• Dimensions : ø125x27.7mm
• Compatible with SBP-180HMW1/200HMW/215HMW/250HMW/315HMW/SBP-250WMW/SBP-400WMW
• Totally 3pcs included in the package
| Color | White |
| Material | Polycarbonate(PC), Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø125x27.7mm(ø4.92x1.09") / 242g (0.54lb) |
| Mount Screw size | TR30 |
| Max. load | None Follow maximum load same as assembled mount |
| Supported products | Mount : SBP-250WMW Hanging Adaptor : SBP-180HMW1/200HMW/215HMW/250HMW/315HMW ※ For further compatible models, please visit our website or use Toolbox |
Name
Description
Size
Downloads
File
Manual
1.3mb
File
Datasheet
0.7mb
