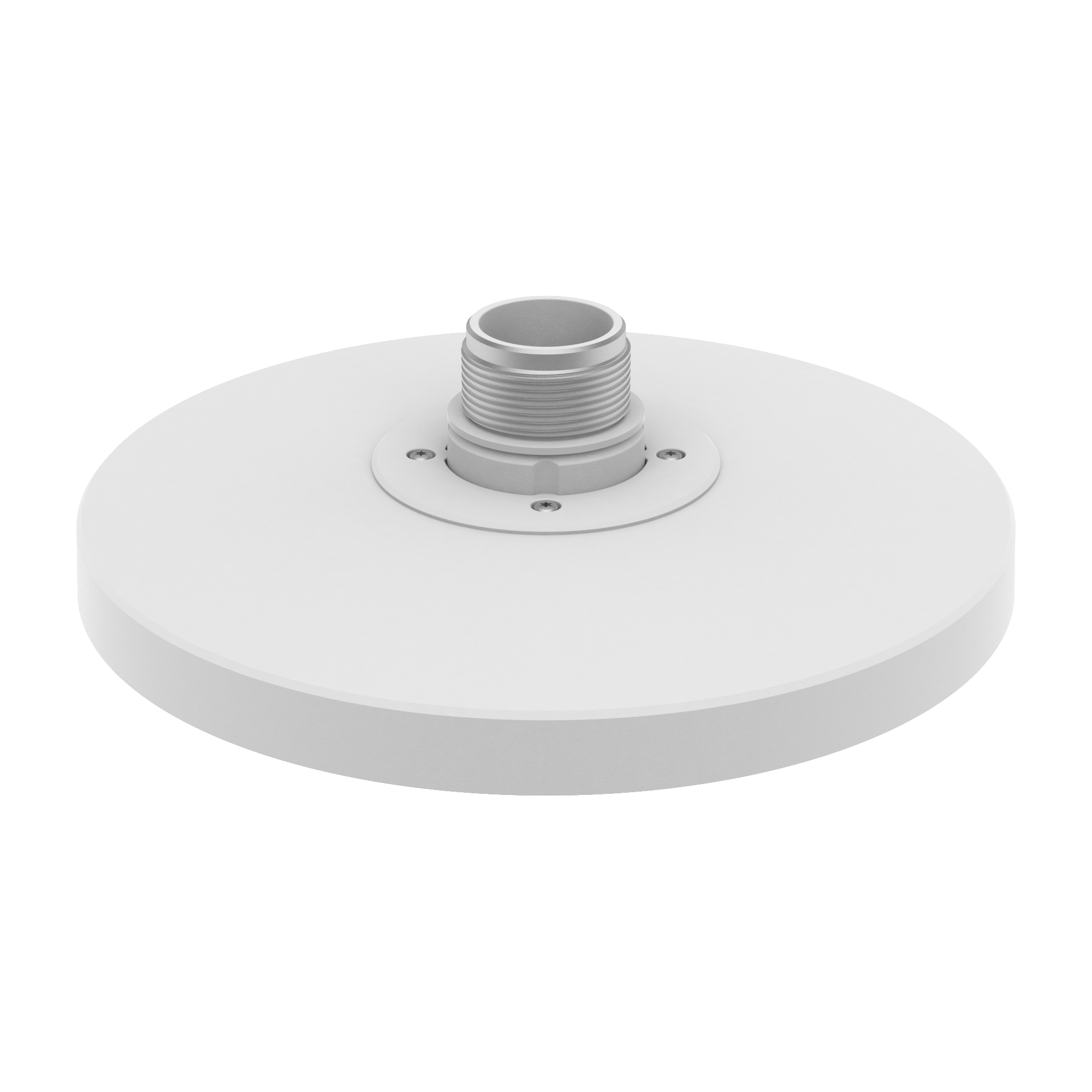

Hanwha - SBP-250HMW - Cap Adapter
Part number:
SBP-250HMW
Price:
The Hanwha SBP-250HMW is an industrial-grade hanging cap constructed from durable aluminum and polycarbonate. Its primary engineering function is to adapt mid-to-large format multi-directional and multi-sensor panoramic cameras to standard 1.5" PF straight-threaded hardware assemblies. This enables wide-chassis camera systems to be cleanly suspended from ceiling extension poles, cantilever wall mounts, or parapet brackets.
Key Features:
• Cap adapter for the PNM-9084QZ1, PNM-9084QZ, PNM-8082VT, PNM-9022V, PNM-C9022RV, PNM-9031RV, PNM-9002VQ, PNM-C16083RVQ, PNM-C32083RVQ
• Size: TR20 PF 1 1/2" Male
• Color: White
• Material: Aluminum
| Material | Die-Cast Aluminum & Polycarbonate (PC) |
| Finish | White |
| Dimensions | Ø 10.43" × 2.91" (Ø 265.0 × 74.0 mm) |
| Weight | 0.99 lbs (450 g) |
| Max Load Capacity | Up To 7.72 lbs (3.5 kg) |
| Thread Interface | Standard 1-1/2" PF Male Thread (1.5" NPT compatible via converter) |
| Mount Screw Size | TR20 tamper-resistant security screws |
