Hanwha - SBP-160HMW1 - Hanging Cap

Hanwha - SBP-160HMW1 - Hanging Cap

Hanwha - SBP-160HMW1 - Hanging Cap

Hanwha - SBP-160HMW1 - Hanging Cap

Part number:

SBP-160HMW1

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

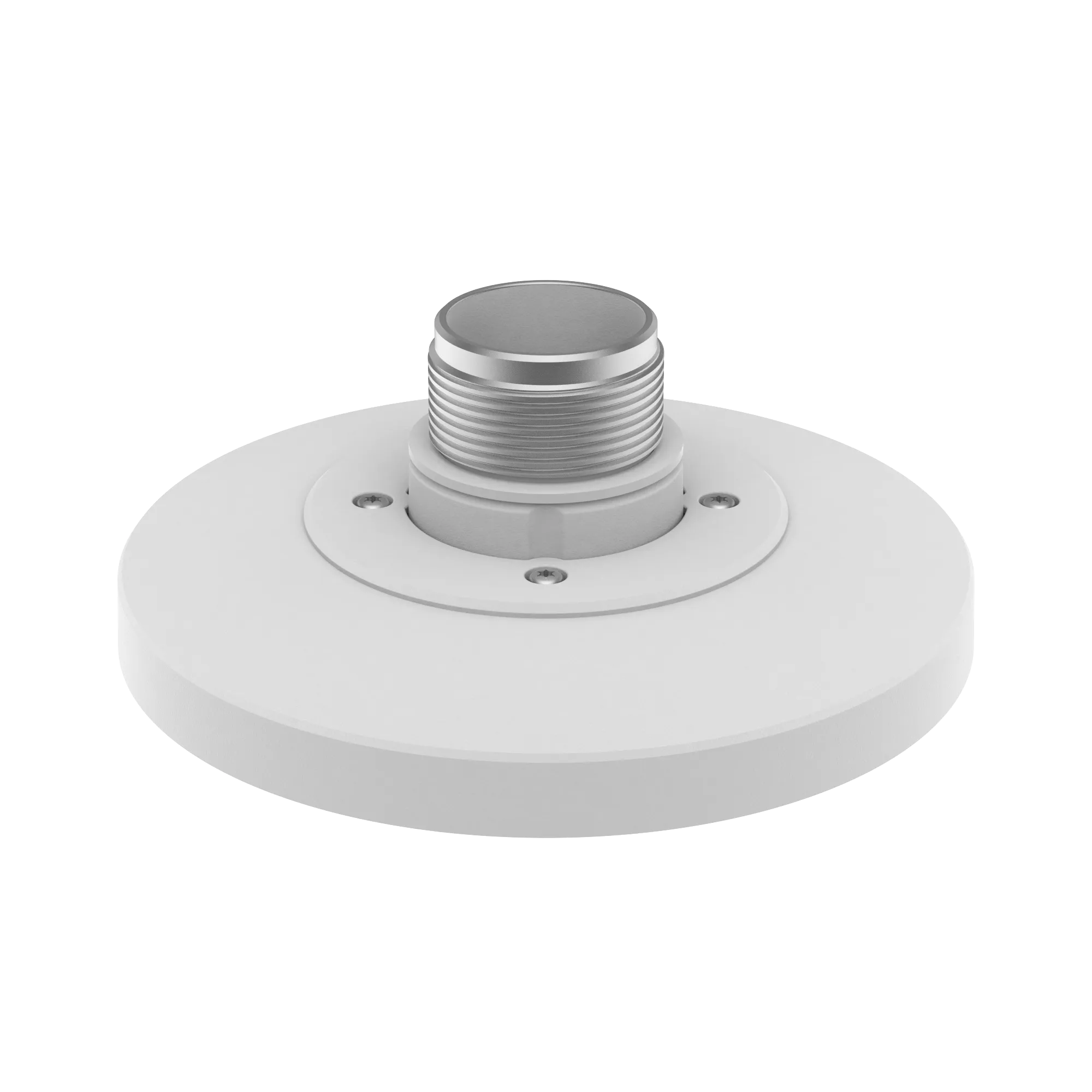

The Hanwha SBP-160HMW1 is an industrial-grade aluminum hanging mount cap (pendant adapter). Its primary engineering function is to adapt specific Hanwha fixed dome cameras to standard 1.5" PF straight-threaded hardware assemblies, allowing them to be cleanly suspended from ceiling drop pipes, cantilever wall arms, or parapet mounts.

Key Features:

• Mount Thread Size: PF 1 1/2" Male
• Material: Aluminum
• Color: White
• Mount Screw Size: TR20
• Replacement for SBP-167HMW
• Compatible with: XNF-9010RV / 9010RVM, XND-9082RV / 8082RV, XND- 6081V / 6081VZ / 6081RV / 6081REV, XND-8081RV / 8081REV, PND-A9081RV, PND-A6081RV, XND-6083RV / C7083RV / 8081VZ / 8083RV / C8083RV / 8093RV / 9083RV / C9083RV, XNV-C6083R / C7083R / C8083R / C9083R, TNF-9010

Color	White
Material	Core : Aluminum / Cap : Plastic
RAL code	RAL9003
Product dimensions / weight	Φ175x67mm (Φ6.89x2.64"), 320g (0.71lb)
Mount Screw size	TR20
Supported products	XND-C6083RV/7083RV/8083RV/9083RV, XND-6083RV/8083RV/8093RV/9083RV, PND-A6081RV/9081RV, XNV-C6083R/7083R/8083R/9083R, XNF-9013RV/9010RV, XND-8082RV/9082RV

Name

Description

Size

Downloads

File

Manual

1.8mb

File

Datasheet

0.7mb

File

Compliant Product List

0.8mb
