Wi-Tek - WI-BRKC135-Pole - Universal Antenna Mount

Product Overview

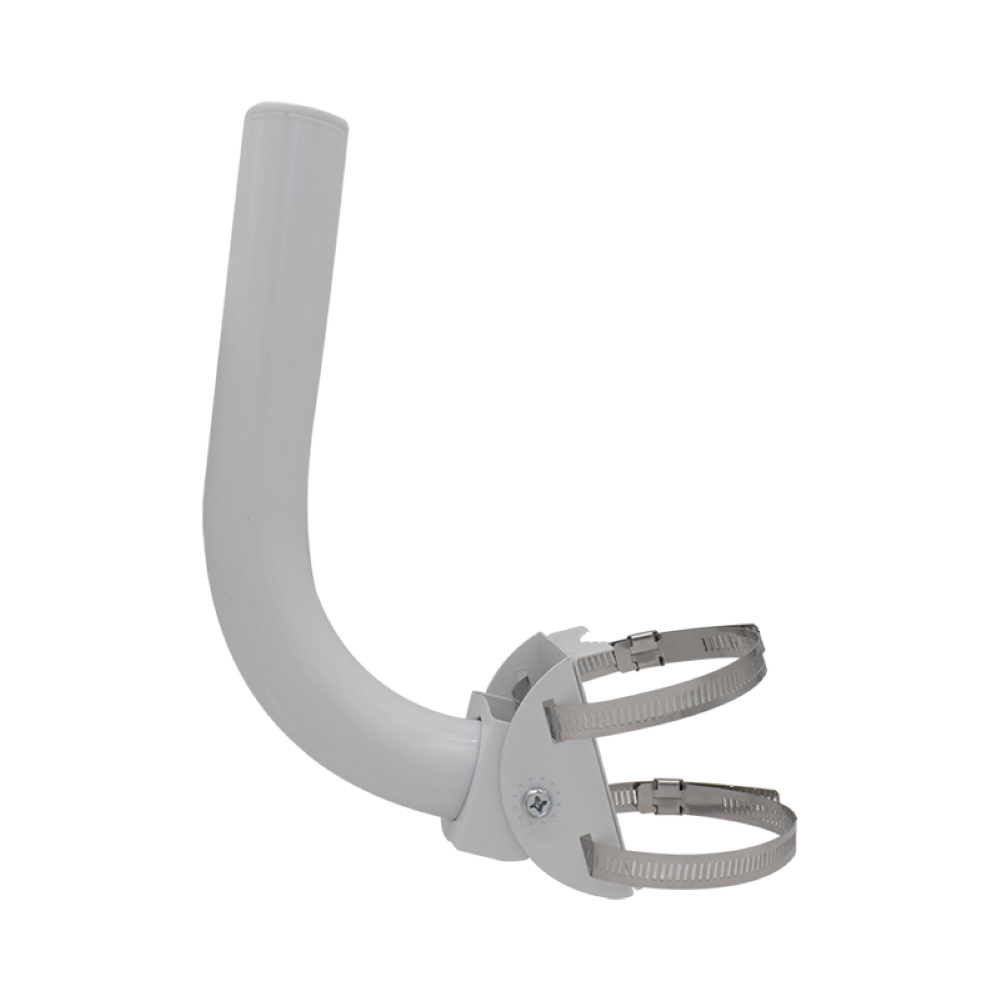

WI-BRKC135 is a steel mounting bracket designed for small and medium-sized outdoor CPE devices. Its modular design supports wall mounting and installation on round or square poles, while adjustable tilt angles help position the CPE for different deployment requirements. A baked-varnish finish provides a durable surface for outdoor use.

Key Configuration

Model: WI-BRKC135 | Material: Steel | Finish: Baked varnish | Color: White | Installation: Wall-mounted, round poles under 100mm, square poles under 70mm | Adjustment: 0° to +25° upward, 0° to -45° downward | Dimensions: 265 × 170 × 6.7mm at 0° | Weight: 0.31kg

Key Features

• · Designed for small and medium-sized CPE devices
• · Supports wall mounting and pole mounting
• · Compatible with round poles under 100mm in diameter
• · Compatible with square poles under 70mm in diameter
• · Adjustable upward angle from 0° to +25°
• · Adjustable downward angle from 0° to -45°
• · Steel construction provides a rigid mounting platform
• · Baked-varnish surface treatment in white color
• · Includes two 330mm metal cable ties for poles up to 100mm in diameter
• · Optional longer cable ties support poles up to 200mm or 300mm in diameter

Installation Notes

The bracket measures 265 × 170 × 6.7mm at a 0° angle and includes a 35mm round arm pole for CPE installation. For pole mounting, insert the metal cable ties through the mounting holes and secure the bracket to the pole. For wall mounting, remove the pole mounting assembly, fix the wall-hanging assembly to the wall, install the CPE mounting arm, and adjust the angle.
