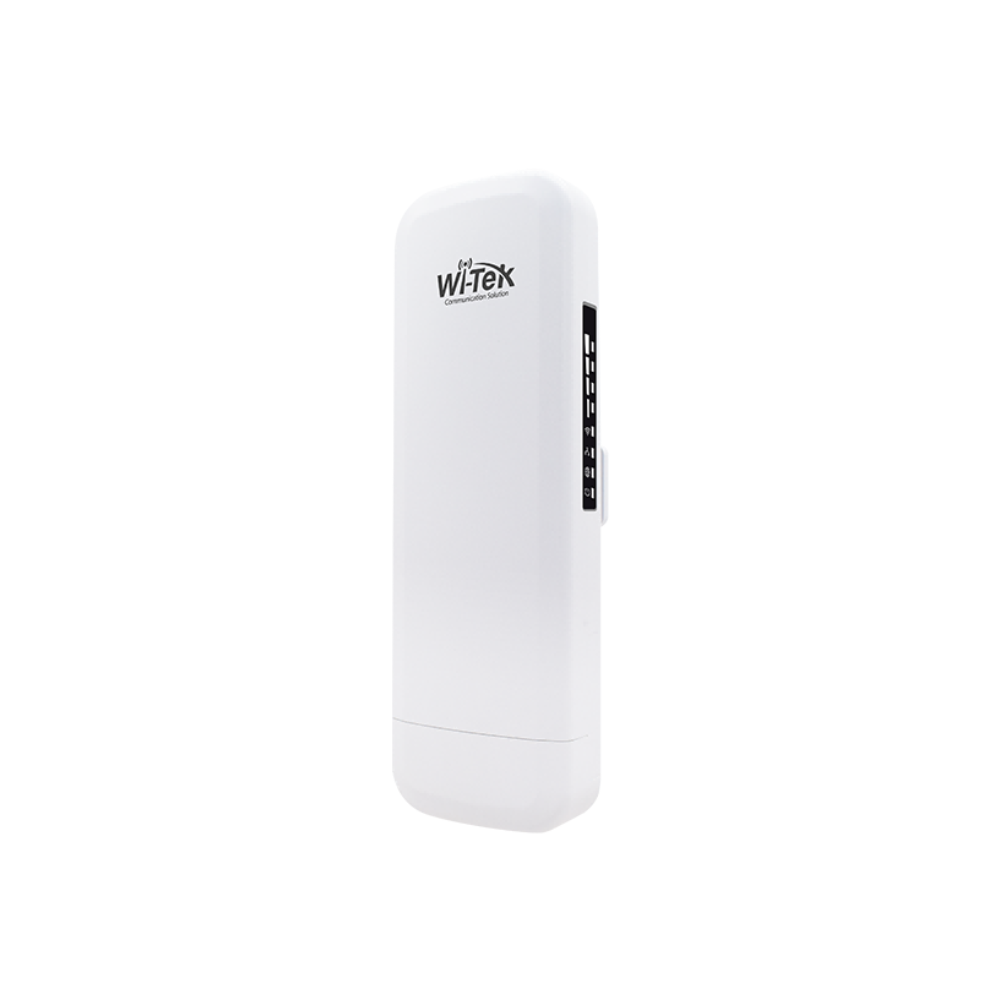

Wi-Tek - WI-CPE800-SINGLE - 5km Long-Range 5GHz 867Mbps Outdoor Wireless Transmitter-Single
Product Overview
WI-CPE800-KIT is a 5GHz outdoor wireless transmission kit for long-range point-to-point and point-to-multipoint network links. The kit includes two transmitters with built-in 15dBi directional antennas, wireless rates up to 867Mbps, Gigabit Ethernet ports, and a recommended transmission distance of up to 5km. Automatic pairing, 802.3af PoE or DC power support, Wi-Tek Cloud management, and IP65 protection simplify outdoor deployment.
Key Configuration
Model: WI-CPE800-KIT | Wireless Standard: IEEE 802.11a/n/ac | Frequency: 5.150-5.850GHz | Wireless Rate: Up to 867Mbps | Antenna: Built-in 15dBi directional antenna | Connectivity: 1×10/100/1000Mbps PoE IN RJ45 port, 1×10/100/1000Mbps RJ45 port per unit | Distance: Up to 5km | Protection: IP65 | Kit: 2 wireless transmitters
Key Features
- · 5GHz wireless transmission with rates up to 867Mbps
- · 15dBi built-in directional antenna supports links up to 5km
- · Supports both point-to-point and point-to-multipoint networking
- · One Gigabit PoE input port and one Gigabit Ethernet port on each transmitter
- · Base station and CPE modes are selected using the DIP switch
- · Automatic pairing with a short press of the reset button
- · Supports IEEE 802.3af PoE input and 12V DC power supply
- · Adjustable channel bandwidth from Auto, 20, 40, and 80MHz
- · Wireless security supports WPA, WPA2, mixed, and enterprise modes
- · Local web management and remote Wi-Tek Cloud management
Technical Context
The directional antennas concentrate the radio signal toward the remote endpoint, enabling long-distance wireless bridging. Base station and CPE modes define the transmitting and receiving roles, while the pairing function simplifies link setup. Adjustable channel bandwidth and transmission power allow the wireless link to be adapted to available spectrum and deployment requirements.
Installation Notes

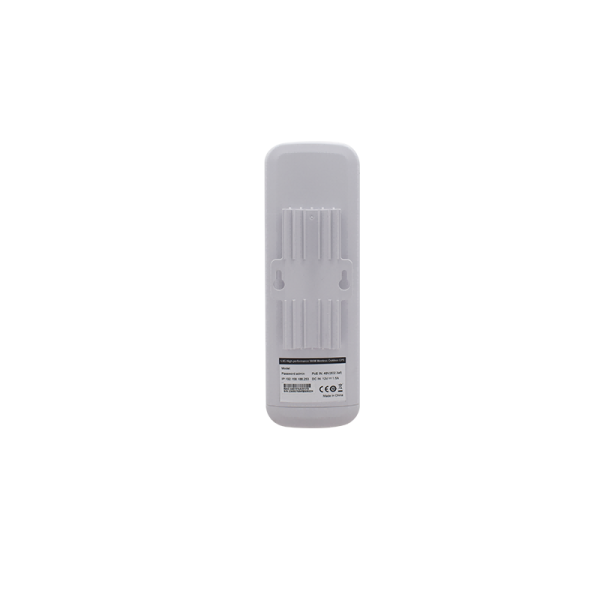

Each transmitter measures 260 × 88 × 56mm and weighs 0.42kg. The units support wall or pole mounting and are housed in UV-stabilized outdoor plastic with IP65 protection. Operating temperature is -40°C to 70°C with 5%-95% non-condensing humidity. The kit includes two transmitters, two 48V PoE adapters, two RJ45 cables, and metal tie accessories.
| General | |
| Product | WI-CPE800-KIT |
| Product Type | 5 GHz 867 Mbps 5 km Long-Range Outdoor Wireless Transmitter Kit |
| Applications | Point-to-point and point-to-multipoint outdoor wireless transmission |
| Maximum Wireless Rate | 867 Mbps at 5 GHz |
| Recommended Distance | Up to 5 km |
| Wireless | |
| Frequency Range | 5.150–5.850 GHz Channels 36–64, 100–144 and 149–165 Frequency selection must comply with national regulations. |
| Wireless Standards | IEEE 802.11a/n/ac |
| Antenna | Built-in 15 dBi directional antenna |
| Half-Power Beamwidth | Horizontal: 33° Vertical: 33° |
| Transmit Power | Up to 24 dBm, adjustable |
| Interfaces and Controls | |

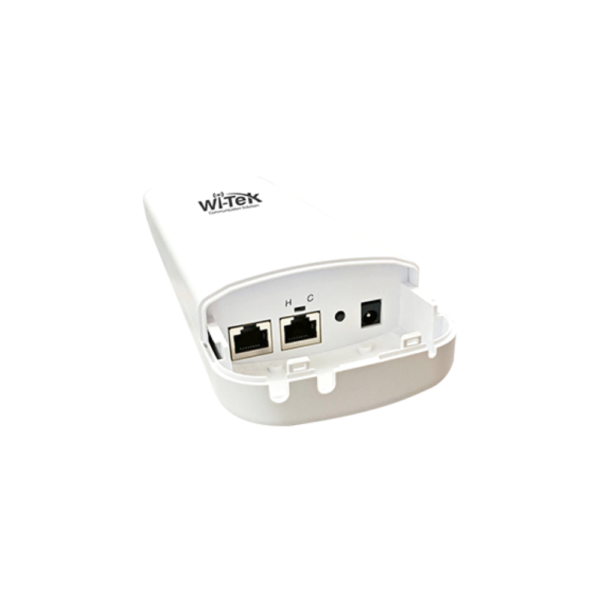

| Interfaces | 1 × 10/100/1000 Mbps PoE IN RJ45 port 1 × 10/100/1000 Mbps RJ45 port |
| LED Indicators | 1 × Power indicator 1 × WAN port indicator 1 × LAN port indicator 1 × Wi-Fi indicator 4 × Signal indicators |
| DIP Switch | H: Base station mode for point-to-point and point-to-multipoint transmission C: CPE mode for connection to a wireless base station |
| Reset Button | Short press: Search for and pair with another wireless transmitter in the opposite mode Long press over 5 seconds: Restore factory default configuration |
| Power | |
| Power Supply | IEEE 802.3af PoE input |
| Power Consumption | <12 W |
| Software Features | |
| Operating Modes | Base Station CPE Repeater WISP |
| WAN Configuration | Dynamic IP, Static IP |
| Wireless Configuration | Wireless enable/disable SSID hiding WMM Wireless channel selection Transmit power control Channel bandwidth: Auto/20/40/80 MHz |
| Wireless Security | Open WPA-TKIP WPA2-AES WPA/WPA2-Mixed WPA-Enterprise WPA2-Enterprise |
| Advanced Functions | Wi-Fi connection filter Speed test Ping watchdog Scheduled reboot NTP Ping Traceroute |
| Status Monitoring | System information Wireless information Radio status Flow chart Wireless terminal station |
| Management | Local web management Remote Wi-Tek Cloud management |
| Physical and Environmental | |
| Dimensions | 260 × 88 × 56 mm per unit |
| Weight | 0.42 kg × 2 |
| Installation | Wall-mounted, pole-mounted |
| Material | Outdoor UV-stabilized plastic |
| Ingress Protection | IP65 |
| Lightning Protection | 4 kV |
| ESD Protection | Air discharge: ±8 kV Contact discharge: ±4 kV |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Package Contents | |
| Wireless Transmitters | 2 pcs |
| PoE Adapters | 48 V PoE adapters × 2 |
| RJ45 Cables | 2 pcs |
| Metal Tie Accessories | 2 pcs |
| Quick Installation Guide | 1 pc |
| Package Dimensions | 339 × 218 × 98 mm |
| Package Weight | 1.62 kg |
