Product Overview

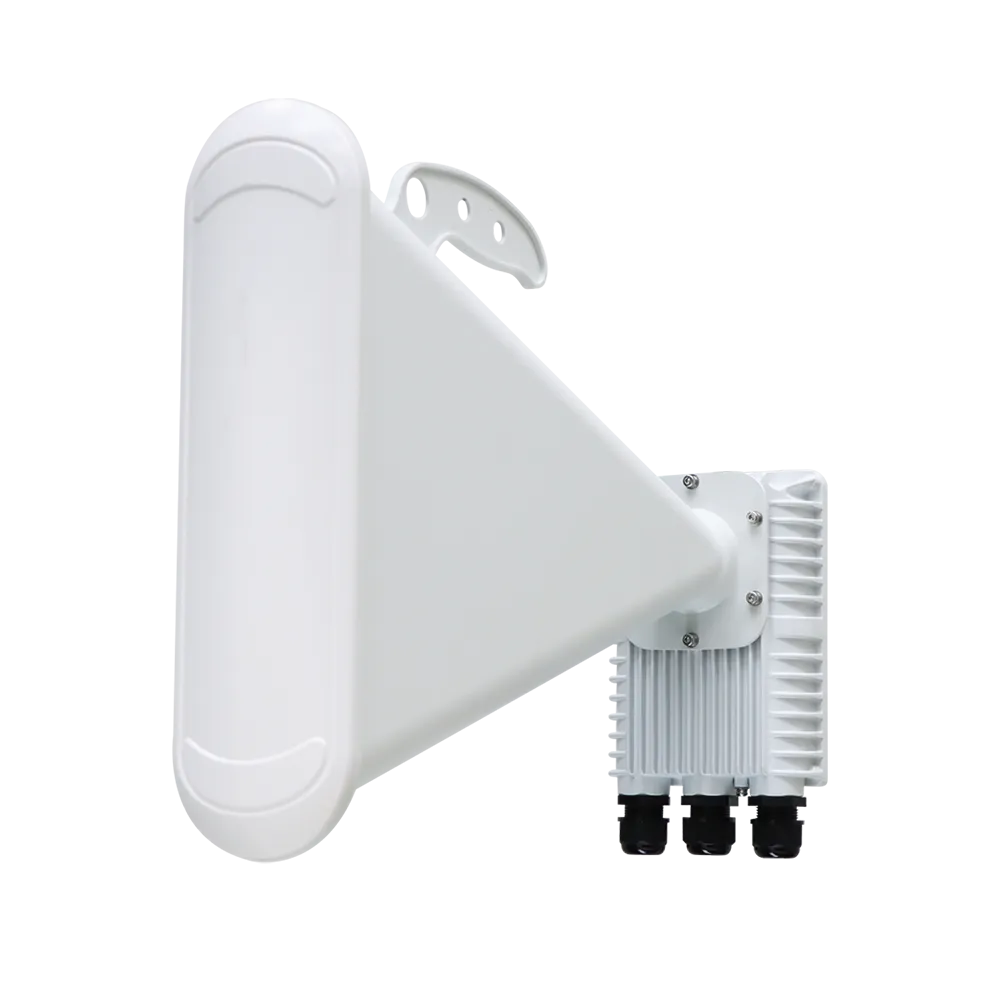

WI-FW5618-H is a 6GHz Wi-Fi 6E fixed wireless access point designed for point-to-multipoint outdoor broadband links. It provides maximum throughput above 1.7Gbps and a recommended PTMP transmission distance of up to 15km. The device combines 2×2 MU-MIMO/OFDMA, an integrated 18dBi dual-linear antenna, dual Ethernet interfaces, flexible PoE or DC power, and an IP67-rated enclosure.
Key Configuration
Model: WI-FW5618-H | Wireless Standard: Wi-Fi 6E | Frequency: 5.9-7.125GHz | Antenna: 18dBi dual-linear integrated antenna | Beamwidth: 90° azimuth, 25° elevation | Connectivity: 1×2.5Gbps Ethernet port, 1×Gigabit Ethernet port | Power: 802.3at PoE input or 12V DC | Protection: IP67 | Transmission Distance: Up to 15km PTMP
Key Features
- · 6GHz Wi-Fi 6E operation across the 5.9-7.125GHz frequency range
- · Maximum throughput above 1.7Gbps for high-bandwidth wireless links
- · 2×2 MU-MIMO and OFDMA based on 802.11ax technology
- · 18dBi dual-linear integrated antenna with 90° azimuth and 25° elevation beamwidth
- · 2.5 Gigabit Ethernet and Gigabit Ethernet interfaces support high-speed wired connectivity
- · Point-to-multipoint operation with AP WDS and Client WDS working modes
- · Bridge and router network modes with 802.1Q VLAN support
- · Transmit power up to 29dBm at 20MHz channel width
- · 802.3at PoE input or 12V DC power supply with consumption below 16W
- · IP67 weatherproof enclosure and 8kV surge suppression for outdoor deployment
Technical Context
OFDMA divides the wireless channel into resource units so multiple stations can communicate efficiently, while 2×2 MU-MIMO supports simultaneous spatial streams. The wide 90° azimuth beamwidth helps cover a broad sector in PTMP deployments, and adaptive Wi-Fi modulation supports transmission rates suited to current link conditions.
Installation Notes

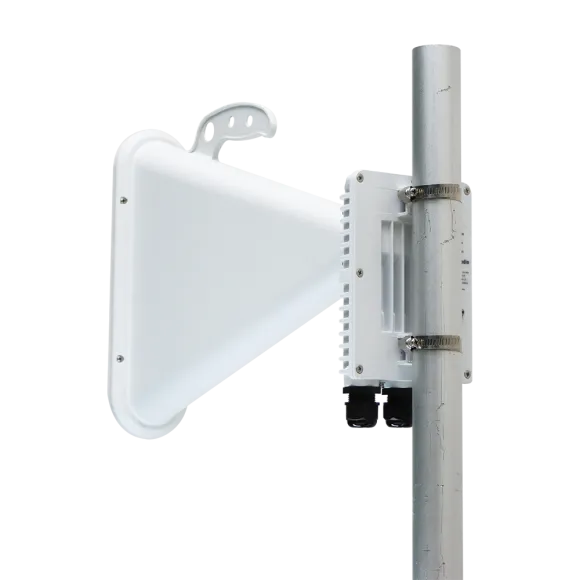

The access point measures 50 × 34 × 10cm and weighs 2.5kg. It supports 802.3at PoE input or 12V DC power, operates from -30°C to 60°C, and provides IP67 weather protection. The recommended PTMP transmission distance is up to 15km.
| General | |
| Model | WI-FW5618-H |
| Product Type | 6 GHz AX2400 Fixed Wireless Access Point |
| Application | Point-to-multipoint wireless transmission |
| Maximum Throughput | 1.7 Gbps+ |
| Maximum Transmission Distance | Up to 15 km in PTMP mode |
| Wireless | |
| Operating Frequency | 5.9–7.125 GHz |
| Wireless Standard | Wi-Fi 6E |
| Channel Width | 20/40/80/160 MHz |
| Proprietary Physical Layer | 2 × 2 wireless architecture |
| Transmit Power | Up to 29 dBm at 20 MHz Up to 27 dBm at 40/80 MHz Up to 26 dBm at 160 MHz |
| Antenna | |
| Antenna Gain | 18 dBi, dual-linear polarization |
| Azimuth Beamwidth | 90° at -6 dB |
| Elevation Beamwidth | 25° at -6 dB |
| Antenna Material | Die-cast aluminum |
| RF Connections | Internal |
| Antenna Dimensions | 50 × 34 × 10 cm |
| Interfaces and Indicators | |
| Network Interfaces | 1 × 2.5 Gigabit Ethernet port 1 × Gigabit Ethernet port |
| LED Indicators | 1 × Power indicator 1 × System indicator 1 × Wi-Fi indicator |
| Power | |
| Power Supply | IEEE 802.3at PoE input or 12 V DC |
| Power Consumption | <16 W |
| Network Features | |
| Wireless Operating Modes | AP WDS, Client WDS |
| Network Modes | Bridge, Router |
| Firewall | Port forwarding, DMZ and ACL filtering |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK with AES/TKIP |
| VLAN | IEEE 802.1Q |
| DHCP | DHCP server and DHCP client |
| PoE | Supported |
| Management | |
| Management Protocols | SNMP TR-069 |
| Physical and Environmental | |
| Weatherproof Protection | IP67 |
| Surge Suppression | 8 kV |
| Weight | 2.5 kg |
| Operating Temperature | -30°C to 60°C |
