Product Overview
WI-FW5619 is a 6GHz Wi-Fi 6E fixed wireless access point designed for cost-effective outdoor point-to-point, point-to-multipoint, and wireless coverage applications. It provides maximum throughput up to 940Mbps and a transmission distance of up to 15km, with 2×2 MU-MIMO/OFDMA and a 19dBi dual-linear antenna. A Gigabit Ethernet port, passive PoE input, IP67 enclosure, and bridge/router modes support flexible outdoor deployment.
Key Configuration
Model: WI-FW5619 | Wireless Standard: Wi-Fi 6E | Frequency: 5.925-7.125GHz | Wireless Throughput: Up to 940Mbps | Antenna: 19dBi dual-linear, 16° vertical and 45° horizontal beamwidth | Connectivity: 1×Gigabit Ethernet port | Power: 24V or 48V passive PoE input | Protection: IP67 | Transmission Distance: Up to 15km
Key Features
- · 6GHz Wi-Fi 6E operation across the 5.925-7.125GHz frequency range
- · Maximum throughput up to 940Mbps with transmission distance up to 15km
- · 2×2 MU-MIMO and OFDMA based on 802.11ax technology
- · 19dBi dual-linear antenna with 16° vertical and 45° horizontal beamwidth
- · Gigabit Ethernet interface for wired network connectivity
- · Supports 24V or 48V passive PoE input on pins 4, 5 (+) and 7, 8 (-)
- · Point-to-point and point-to-multipoint operation with AP WDS and Client WDS modes
- · Bridge and router network modes with 802.1Q VLAN and 802.1p priority support
- · Adaptive modulation from MCS 0 to MCS 11 with 1024-QAM support
- · IP67 weatherproof enclosure and 8kV surge suppression for outdoor deployment
Technical Context
OFDMA divides the wireless channel into resource units so multiple stations can communicate efficiently, while 2×2 MU-MIMO supports simultaneous spatial streams. Adaptive modulation selects transmission schemes from BPSK through 1024-QAM according to link conditions, helping balance throughput and stability across long-distance PTP and PTMP links.
Installation Notes
The access point measures 307 × 127 × 65mm and weighs 0.8kg. It supports 24V or 48V passive PoE input, operates from -30°C to 55°C, and provides IP67 weather protection. The recommended maximum transmission distance is up to 15km.
| General | |
| Model | WI-FW5619 |
| Product Type | 6 GHz AX2400 Fixed Wireless Access Point |
| Applications | Point-to-point, point-to-multipoint and outdoor Wi-Fi coverage |
| Maximum Throughput | 940 Mbps |
| Transmission Distance | Up to 15 km |
| Wireless | |
| Operating Frequency | 5.925–7.125 GHz |
| Wireless Standard | Wi-Fi 6E |
| Channel Width | 20/40/80/160 MHz |
| Proprietary Physical Layer | 2 × 2 MU-MIMO/OFDMA based on IEEE 802.11ax technology |
| Transmit Power | Up to 29 dBm at 20 MHz Up to 27 dBm at 40/80 MHz Up to 26 dBm at 160 MHz |
| Modulation | Adaptive MCS 0 (BPSK) to MCS 11 (1024-QAM 5/6) |
| ARQ | Supported |
| Antenna | |
| Antenna Frequency Range | 5.15–7.125 GHz |
| Antenna Gain | 19 dBi, dual-linear polarization |
| Antenna Beamwidth | Vertical: 16° Horizontal: 45° |
| Interfaces and Indicators | |
| Network Interface | 1 × Gigabit Ethernet port |

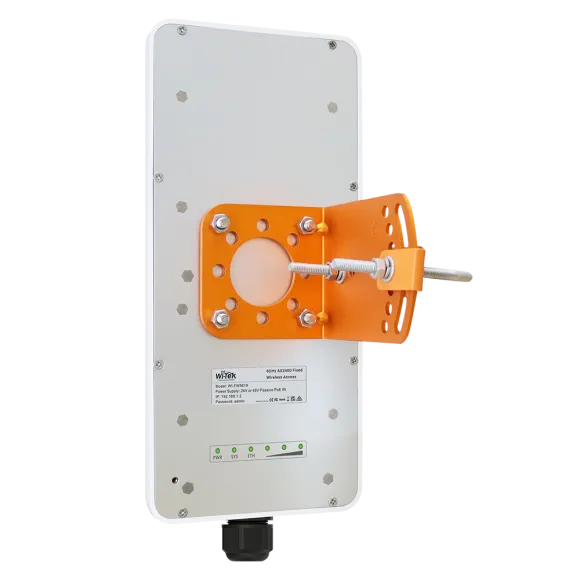

| LED Indicators | 1 × Power indicator 1 × System indicator 1 × LAN indicator 3 × Wi-Fi signal indicators |
| Power | |
| Power Supply | 24 V or 48 V passive PoE input PoE pin assignment: 4, 5 (+), 7, 8 (-) |
| Power Consumption | <15 W |
| Network Features | |
| Wireless Operating Modes | AP WDS, Client WDS |
| Network Modes | Bridge, Router |
| Firewall | Port forwarding, DMZ and ACL filtering |
| Wireless Security | WPA-PSK WPA2-PSK WPA/WPA2-PSK WPA2-PSK/WPA3-SAE WPA3-SAE |
| VLAN | IEEE 802.1Q with IEEE 802.1p priority |
| DHCP | DHCP server and DHCP client |
| Quality of Service | |
| QoS Priorities | Three-level priority: voice, high and low |
| Traffic Classification | DSCP, CoS, VLAN ID, IP address and MAC address |
| Priority Control | Broadcast, multicast and station priority |
| Management | |
| Management Protocols | HTTP/HTTPS SNMPv1/v2 SNMPv3 TR-069 |
| RF Performance | |
| Receive Sensitivity at 20 MHz | MCS 0: -95 dBm MCS 11: -64 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 40 MHz | MCS 0: -92 dBm MCS 11: -61 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 80 MHz | MCS 0: -89 dBm MCS 11: -58 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 160 MHz | MCS 0: -86 dBm MCS 11: -55 dBm 1024-QAM 5/6 with FEC, per chain |
| PTP Throughput Test Data | |
| 160 MHz Channel | 1 km: 900 Mbps+ 2 km: 800 Mbps+ 6 km: 700 Mbps+ 10 km: 300 Mbps+ 15 km: 100 Mbps+ |
| 80 MHz Channel | 1 km: 800 Mbps+ 2 km: 600 Mbps+ 6 km: 400 Mbps+ 10 km: 150 Mbps+ 15 km: 60 Mbps+ |
| 40 MHz Channel | 1 km: 400 Mbps+ 2 km: 300 Mbps+ 6 km: 250 Mbps+ 10 km: 80 Mbps+ 15 km: 20 Mbps+ |
| 20 MHz Channel | 1 km: 200 Mbps+ 2 km: 150 Mbps+ 6 km: 100 Mbps+ 10 km: 40 Mbps+ 15 km: 10 Mbps+ |
| Test Conditions | Test data was obtained in coastal or remote areas with relatively low Wi-Fi interference. Sufficient redundancy is recommended for actual deployments. |
| Physical and Environmental | |
| Weatherproof Protection | IP67 |
| Surge Suppression | 8 kV |
| Dimensions | 307 × 127 × 65 mm |
| Weight | 0.8 kg |
| Operating Temperature | -30°C to 55°C |
