Product Overview
WI-FW5625 is a 6GHz Wi-Fi 6E fixed wireless access point designed for point-to-point and long-distance outdoor network links. It provides up to 2400Mbps wireless data rate and maximum throughput above 1.7Gbps, with a recommended transmission distance of up to 20km. The device combines 2×2 MU-MIMO/OFDMA, a high-gain directional dish antenna, dual Ethernet interfaces, flexible PoE or DC power, and an IP67-rated enclosure.
Key Configuration
Model: WI-FW5625 | Wireless Standard: Wi-Fi 6E | Frequency: 5.925-7.125GHz | Wireless Data Rate: 2400Mbps | Antenna: 25dBi external dish, 42cm diameter | Connectivity: 1×2.5Gbps Ethernet port, 1×Gigabit Ethernet port | Power: 802.3at PoE input or 12V DC | Protection: IP67 | Recommended Distance: Up to 20km
Key Features
- · 6GHz Wi-Fi 6E operation across the 5.925-7.125GHz frequency range
- · Wireless data rate up to 2400Mbps and maximum throughput above 1.7Gbps
- · 2×2 MU-MIMO and OFDMA based on 802.11ax technology
- · 25dBi external directional dish antenna with 11° horizontal and vertical beamwidth
- · 2.5 Gigabit Ethernet and Gigabit Ethernet interfaces support high-speed wired connectivity
- · Point-to-point operation with AP WDS and Client WDS working modes
- · Bridge and router network modes with 802.1Q VLAN and 802.1p priority support
- · Adaptive modulation from MCS 0 to MCS 11 with 1024-QAM support
- · 802.3at PoE input or 12V DC power supply with power consumption below 15W
- · IP67 weatherproof enclosure and 8kV surge suppression for outdoor deployment
Technical Context
OFDMA divides the channel into resource units so multiple stations can communicate efficiently, while 2×2 MU-MIMO supports simultaneous spatial streams. Adaptive modulation selects transmission schemes from BPSK through 1024-QAM according to link conditions, helping balance throughput and connection stability over long-distance wireless links.
Installation Notes

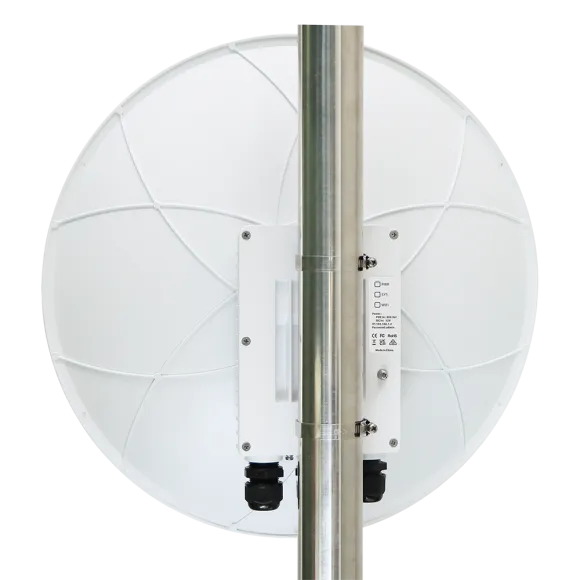

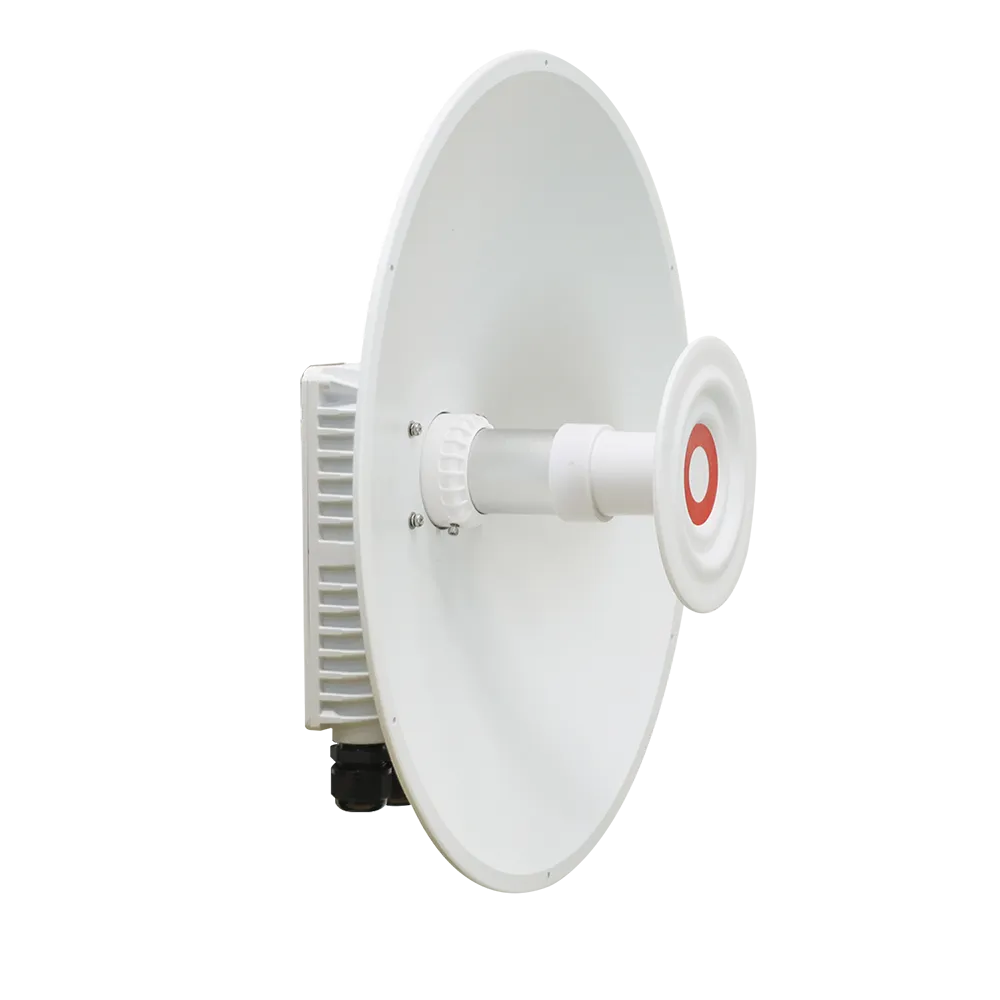

The access point uses a 42cm directional dish antenna and is intended for outdoor point-to-point links with a recommended distance of up to 20km. It supports 802.3at PoE input or 12V DC power, operates from -30°C to 60°C, and provides IP67 weather protection. The antenna should be installed with a clear radio path between link endpoints.
| General | |
| Model | WI-FW5625 |
| Product Type | 6 GHz AX2400 Fixed Wireless Access Point |
| Application | Point-to-point wireless transmission |
| Maximum Throughput | 1.7 Gbps+ |
| Recommended Transmission Distance | Up to 20 km |
| Wireless | |
| Operating Frequency | 5.925–7.125 GHz |
| Wireless Standard | Wi-Fi 6E |
| Wireless Data Rate | Up to 2400 Mbps |
| Channel Width | 20/40/80/160 MHz |
| Proprietary Physical Layer | 2 × 2 MU-MIMO/OFDMA based on IEEE 802.11ax technology |
| Transmit Power | Up to 29 dBm at 20 MHz Up to 27 dBm at 40/80 MHz Up to 26 dBm at 160 MHz |
| Modulation | Adaptive MCS 0 (BPSK) to MCS 11 (1024-QAM 5/6) |
| ARQ | Supported |
| Antenna | |
| Antenna Type | External dish antenna |
| Antenna Frequency Range | 4.9–7.125 GHz |
| Antenna Gain | 25 dBi |
| Antenna Beamwidth | Vertical: 11° Horizontal: 11° |
| Antenna Size | Diameter: 42 cm |
| Interfaces | |
| Network Interfaces | 1 × 2.5 Gigabit Ethernet port 1 × Gigabit Ethernet port |
| Power | |
| Power Supply | IEEE 802.3at PoE input or 12 V DC |
| Power Consumption | <15 W |
| Network Features | |
| Wireless Operating Modes | AP WDS, Client WDS |
| Network Modes | Bridge, Router |
| Firewall | Port forwarding, DMZ and ACL filtering |
| VLAN | IEEE 802.1Q with IEEE 802.1p priority |
| DHCP | DHCP server and DHCP client |
| Wireless Security | WPA-PSK WPA2-PSK WPA/WPA2-PSK WPA2-PSK/WPA3-SAE WPA3-SAE |
| Quality of Service | |
| QoS Priorities | Three-level priority: voice, high and low |
| Traffic Classification | DSCP, CoS, VLAN ID, IP address and MAC address |
| Priority Control | Broadcast, multicast and station priority |
| Management | |
| Management Protocols | HTTP/HTTPS SNMPv1/v2 SNMPv3 TR-069 |
| RF Performance | |
| Receive Sensitivity at 20 MHz | MCS 0: -95 dBm MCS 11: -64 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 40 MHz | MCS 0: -92 dBm MCS 11: -61 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 80 MHz | MCS 0: -89 dBm MCS 11: -58 dBm 1024-QAM 5/6 with FEC, per chain |
| Receive Sensitivity at 160 MHz | MCS 0: -86 dBm MCS 11: -55 dBm 1024-QAM 5/6 with FEC, per chain |
| Physical and Environmental | |
| Weatherproof Protection | IP67 |
| Surge Suppression | 8 kV |
| Weight | 7 kg |
| Operating Temperature | -30°C to 60°C |
