Product Overview

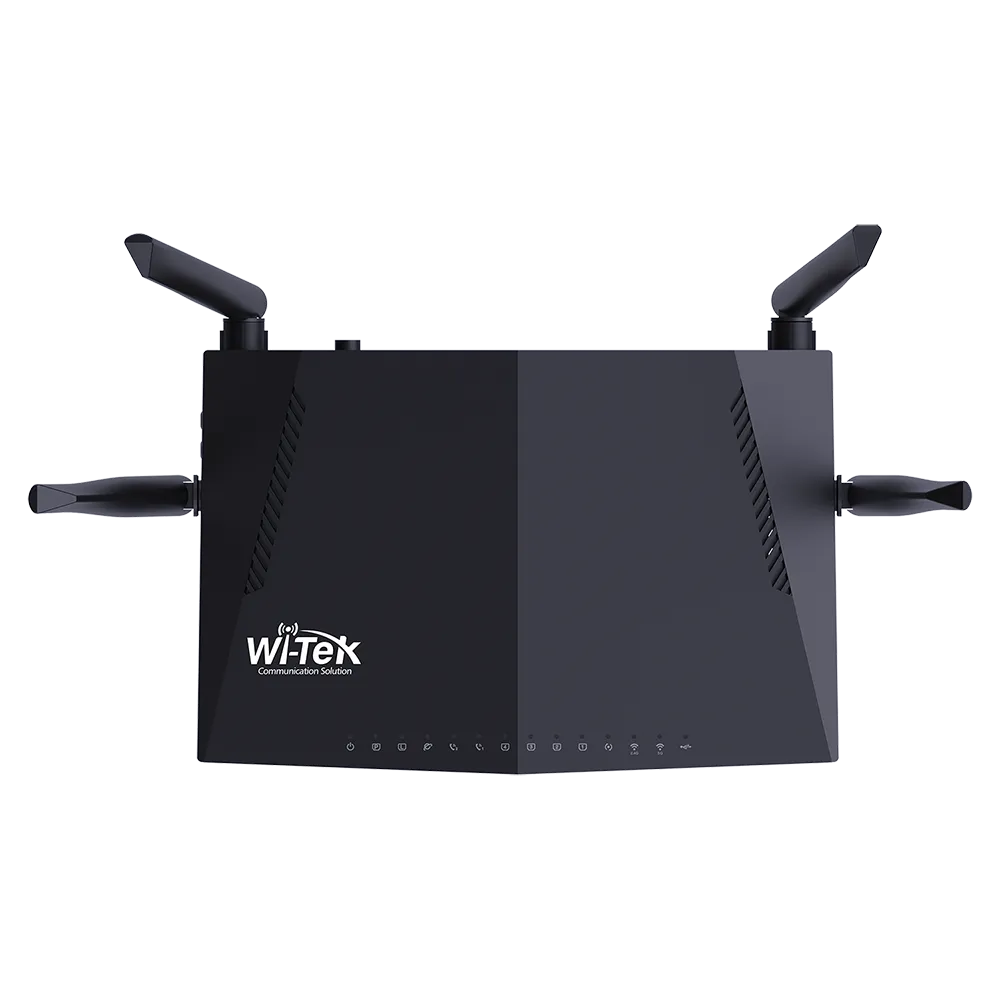

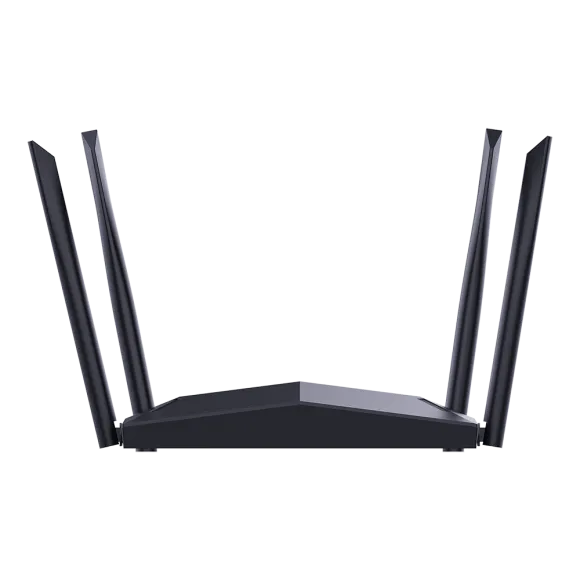

WI-GP1430 is an AX3000 dual-band Wi-Fi 6 GPON router designed to provide high-speed fiber, wired, and wireless connectivity for homes, offices, IPTV, and other broadband applications. It supports GPON downstream rates up to 2.488Gbps and upstream rates up to 1.244Gbps, combined Wi-Fi speeds up to 3000Mbps, four Gigabit LAN ports, and two RJ11 phone ports. MU-MIMO, beamforming, EasyMesh, and TR-069 remote management support efficient wireless coverage and simplified operation.
Key Configuration
Model: WI-GP1430 | GPON: 1×SC/APC GPON port, up to 2.488Gbps downstream and 1.244Gbps upstream | Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, AX3000 | Data Rate: 2.4GHz up to 574Mbps, 5GHz up to 2402Mbps | Connectivity: 4×10/100/1000Mbps LAN ports, 2×RJ11 phone jacks | Antenna: 2×5dBi external antennas per band | Power: 12V/2A DC
Key Features
- · GPON connectivity compliant with ITU-T G.984 and G.988 standards
- · GPON data rates up to 2.488Gbps downstream and 1.244Gbps upstream
- · Wi-Fi 6 AX3000 wireless connectivity with combined speeds up to 3000Mbps
- · 2×2 MIMO on both 2.4GHz and 5GHz bands
- · Beamforming improves signal direction and wireless coverage for connected clients
- · Four Gigabit Ethernet LAN ports provide wired connectivity for network devices
- · Two RJ11 phone ports support VoIP calls
- · Supports up to 4 SSIDs per radio, WPA3/SAE security, and EasyMesh
- · Supports IPv4/IPv6, IPTV, DHCP, PPPoE, bridge mode, VPN, NAT, and port forwarding
- · Web GUI and TR-069 remote management simplify device administration
Technical Context
MU-MIMO enables simultaneous communication with multiple compatible clients, while beamforming focuses the wireless signal toward connected devices to improve coverage and performance. Dual-band Wi-Fi 6 operation combines the broader coverage of 2.4GHz with the higher capacity of 5GHz, and EasyMesh supports coordinated multi-node wireless networks.
Installation Notes
The router requires a 12V/2A DC power supply and connects to the fiber network through the SC/APC GPON port. It is intended for operation from 0°C to 40°C with 5%-95% typical humidity. Connect compatible telephones to the RJ11 ports and network devices to the Gigabit LAN ports.
| General | |
| Model | WI-GP1430 |
| Product Type | AX3000 Dual-Band Wi-Fi 6 GPON Router |
| Hardware Version | V1.0 |
| Key Features | MU-MIMO technology Beamforming technology EasyMesh support VoIP support through RJ11 phone ports TR-069 remote management |
| Hardware | |
| Chipset | RTL9607DQ + RTL8832CR-CG + RTL8192XBR-CG + Le9642PQCT |
| CPU | Quad-core ARM Cortex-A55, 1.0 GHz |
| Memory | 512 MB 16-bit DDR4 |
| Flash Memory | 256 MB NAND |

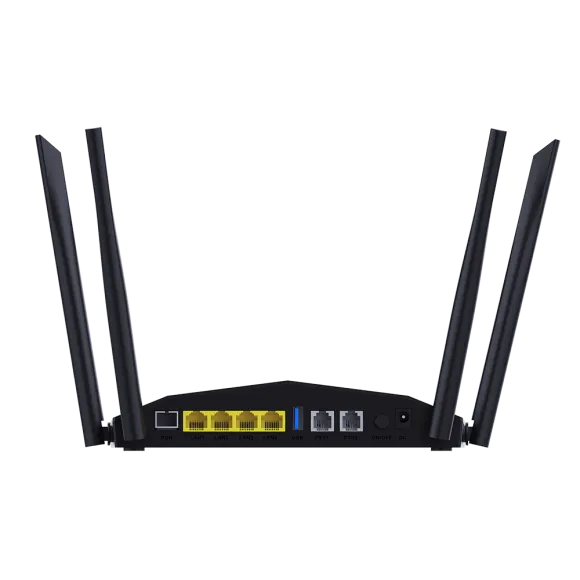

| Interfaces | 1 × SC/APC GPON port 4 × RJ45 10/100/1000 Mbps LAN ports 2 × RJ11 phone ports 1 × WPS button 1 × Reset button 1 × Power jack |
| Power Supply | 12 V / 2 A |
| GPON | |
| GPON Port | 1 × SC/APC |
| GPON Standards | ITU-T G.984 and ITU-T G.988 |
| GPON Data Rate | Downstream: up to 2.488 Gbps Upstream: up to 1.244 Gbps |
| Wireless | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.4 GHz: 2.4–2.4835 GHz 5 GHz: 5.150–5.825 GHz Frequency selection must comply with national regulations. |
| Wireless Data Rate | 2.4 GHz: up to 574 Mbps 5 GHz: up to 2402 Mbps |
| MIMO | 2.4 GHz: 2 × 2 MIMO 5 GHz: 2 × 2 MIMO |
| Antenna | 2.4 GHz: 2 × 5 dBi external antennas 5 GHz: 2 × 5 dBi external antennas |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM DSSS: DBPSK, DQPSK, CCK |
| Maximum Transmit Power | 2.4 GHz: 17 dBm 5 GHz: 18 dBm |
| Transfer Rate | 2.4 GHz HE20: up to 286.8 Mbps 2.4 GHz HE40: up to 576.5 Mbps 5 GHz HE20: up to 286.8 Mbps 5 GHz HE40: up to 576.5 Mbps 5 GHz HE80: up to 1201 Mbps 5 GHz HE160: up to 2402 Mbps |
| Wireless Features | Embedded AP with up to 4 SSIDs per radio Separate authentication for each SSID WMM Automatic channel selection EasyMesh WPA3/SAE security |
| Network Protocols | |
| Supported Protocols | RFC 0768 UDP RFC 0791 IP RFC 0792 ICMP RFC 0793 TCP RFC 0826 Ethernet ARP RFC 0894 IP over Ethernet RFC 0922 Internet broadcasting RFC 0950 Internet standard subnetting IEEE 802.3 Ethertype IEEE 802.1p RFC 2516 PPPoE RFC 1662 PPP in HDLC-like framing RFC 1332 PPP Internet Protocol Control Protocol RFC 1042 IP datagrams over IEEE 802 networks IPoE over AAL5 |
| Network Features | |
| IP Support | IPv4/IPv6 dual stack, 6RD |
| WAN Modes | IPoE bridge mode IPoE DHCP/static IP PPPoE dynamic/static IP |
| IPv6 | Stateless and stateful addressing |
| VPN | PPTP, L2TP and IPsec |
| IPTV | IGMP proxy and MLD proxy |
| Network Services | DNS Proxy DHCP server NAT, NAPT and ALG |
| Software Features | |
| QoS | QoS flow control |
| File and Media Services | Samba, DLNA and FTP |
| Firewall and Filtering | DMZ and port forwarding SPI firewall Denial-of-Service protection Port, IP and MAC filtering URL filtering |
| Routing | DDNS and static routing |
| Time Synchronization | SNTP date and time synchronization |
| Diagnostics | Ping and Traceroute |
| System Functions | Logs and statistics Automatic scheduled restart |
| Management | |
| Management Interfaces | Web GUI TR-069 remote management |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 90°C |
| Operating Humidity | 5% to 95%, typical |
| Compliance | |
| EMC and Safety Compliance | CE UL |
| Green Standard | RoHS |
