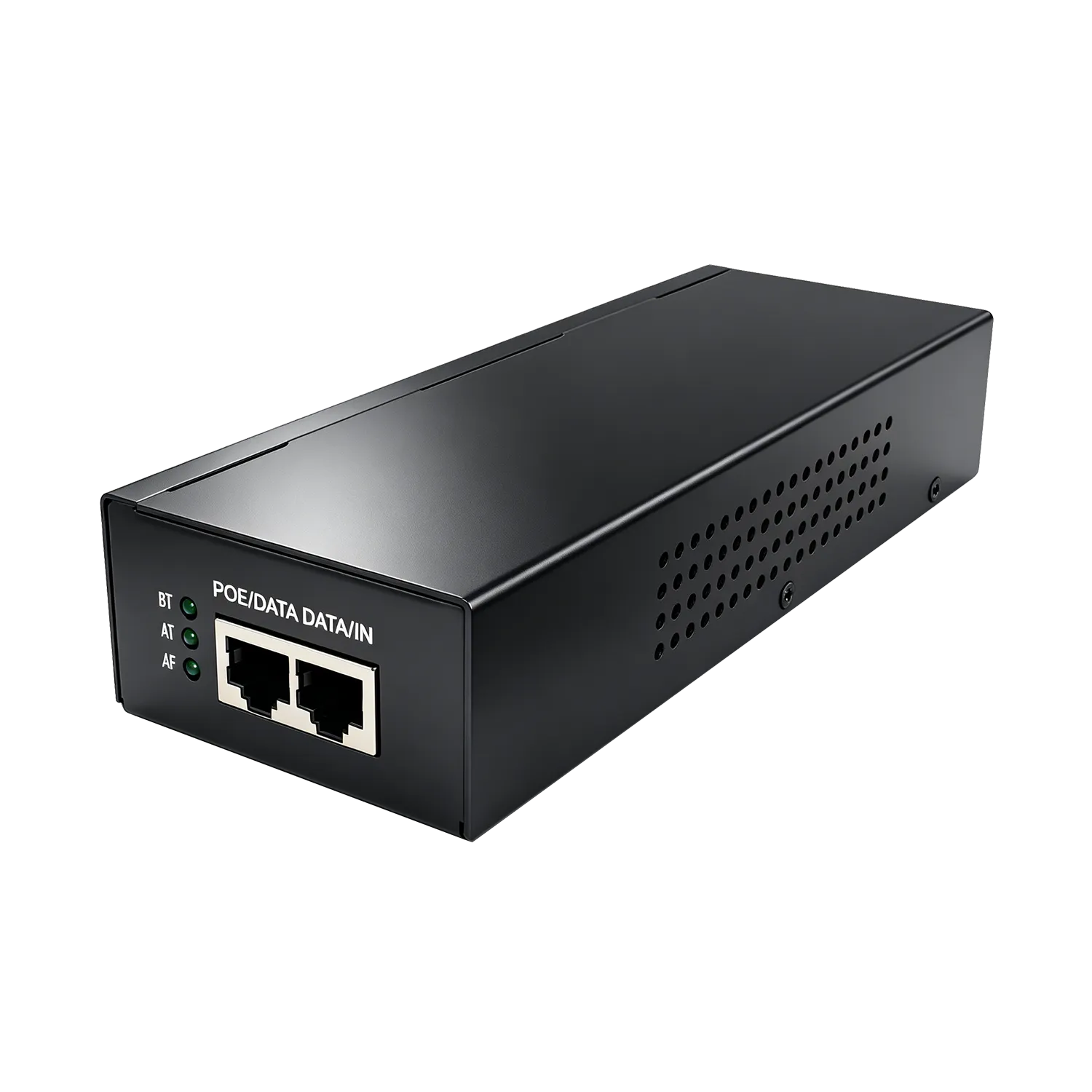

Wi-Tek - WI-POE58-BT-90W-V2 - 90W PoE PoE Injector
Product Overview
WI-POE58-BT V2 is a 2.5Gbps PoE injector designed to deliver network data and up to 90W of power to compatible IP cameras, wireless access points, and other PoE devices. It supports IEEE 802.3af/at/bt standards, provides 1000/2500Mbps data and PoE ports, and operates without configuration. Its fanless compact design supports convenient wall-mounted or desktop installation.
Key Configuration
Model: WI-POE58-BT V2 | Data Input: 1×1000/2500Mbps Ethernet port | PoE Output: 1×1000/2500Mbps RJ45 PoE port | PoE Standard: IEEE 802.3af/at/bt | PoE Budget: Up to 90W | Power Input: AC 100-240V, 50/60Hz | Installation: Wall-mounted or desktop | Dimensions: 192 × 73 × 37mm
Key Features
- · Supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards
- · Provides up to 90W PoE power for compatible devices
- · 1000/2500Mbps Ethernet input and PoE output ports support multi-gigabit connectivity
- · Supports both mid-span and end-span PoE power delivery
- · Plug-and-play installation requires no configuration
- · Fanless design supports silent operation
- · PoE pin assignment: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
- · LED indicators identify 802.3af, 802.3at, and 802.3bt powered-device protocols
- · 6kV common-mode and 2kV differential-mode surge immunity
- · 4kV contact and 8kV air-discharge ESD protection
Technical Context
The injector adds power to the Ethernet link while maintaining Gigabit or 2.5 Gigabit data connectivity. Support for both mid-span and end-span power delivery enables compatibility with different PoE device designs, while the 802.3bt mode provides the higher power budget required by power-intensive network equipment.
Installation Notes
The injector measures 192 × 73 × 37mm and can be installed on a wall or placed on a desktop. Connect the AC power cord, Ethernet switch or router to the data input port, and the powered device to the PoE output port. Operating temperature is -10°C to 55°C with 5%-90% non-condensing humidity.
| General | |
| Model | WI-POE58-BT |
| Hardware Version | V2 |
| Product Type | 2.5 Gbps IEEE 802.3bt PoE Injector |
| Installation | Plug and play; no configuration required |
| Interfaces | |
| Data Input Port | 1 × 1000/2500 Mbps Ethernet port |
| PoE Output Port | 1 × 1000/2500 Mbps PoE RJ45 port |
| PoE | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Output Power | Up to 90 W |
| PoE Power Supply Type | Mid-span and end-span |
| PoE Pin Assignment | 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
| PoE Power Budget | 90 W maximum |
| Electrical | |

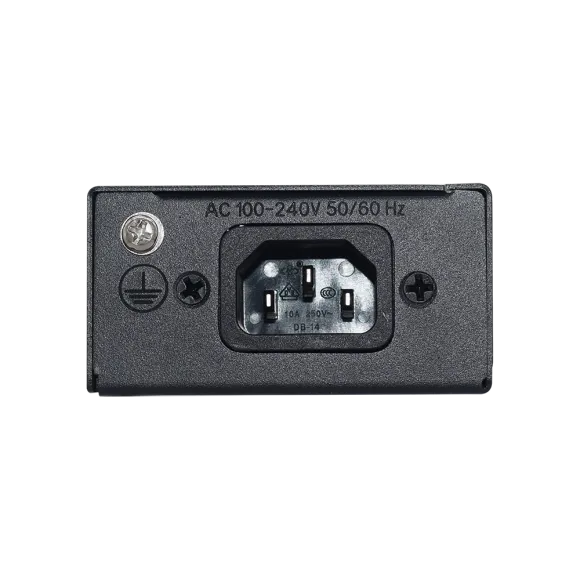

| Input Power | 100–240 V AC, 50/60 Hz |
| Power Consumption | 2 W idle |
| LED Indicators | |

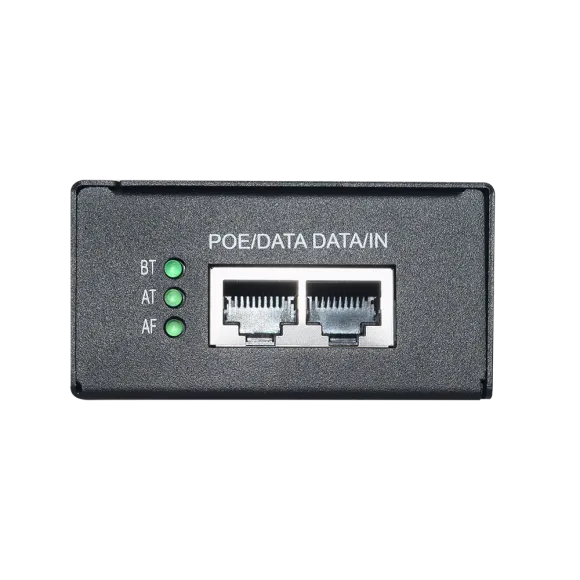

| AF Indicator | On: The powered device uses IEEE 802.3af Off: The powered device does not use IEEE 802.3af |
| AT Indicator | On: The powered device uses IEEE 802.3at Off: The powered device does not use IEEE 802.3at |
| BT Indicator | On: The powered device uses IEEE 802.3bt Off: The powered device does not use IEEE 802.3bt |
| Physical | |

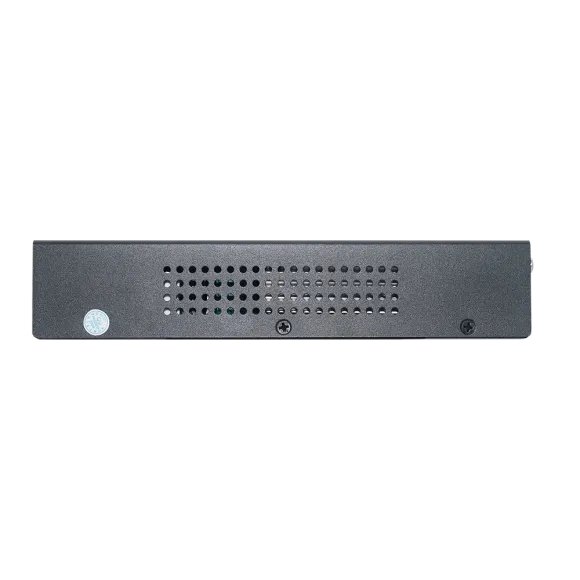

| Cooling | Fanless |
| Injector Dimensions | 192 × 73 × 37 mm |
| Net Weight | 0.55 kg |
| Installation | Wall-mounted, desktop |
| Environmental and Reliability | |
| Surge Immunity | Common mode: 6 kV Differential mode: 2 kV |
| ESD Protection | Contact discharge: 4 kV Air discharge: 8 kV |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Storage Temperature | -40°C to 80°C |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
| Package Contents | |
| PoE Injector | 1 pc |
| Power Cord | 1 pc |
| Quick Installation Guide | 1 pc |
| Package Dimensions | 240 × 92 × 88 mm |
| Package Weight | 0.78 kg |
