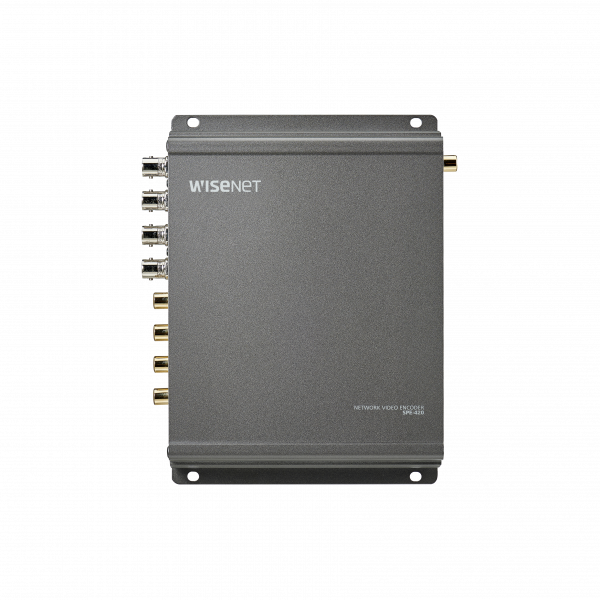

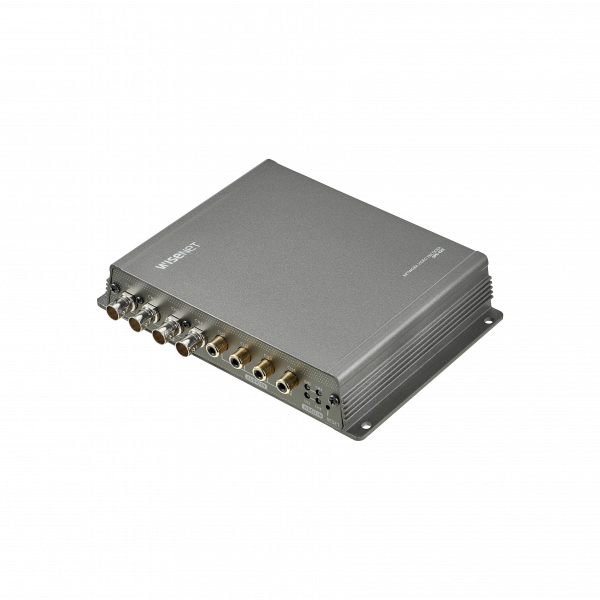

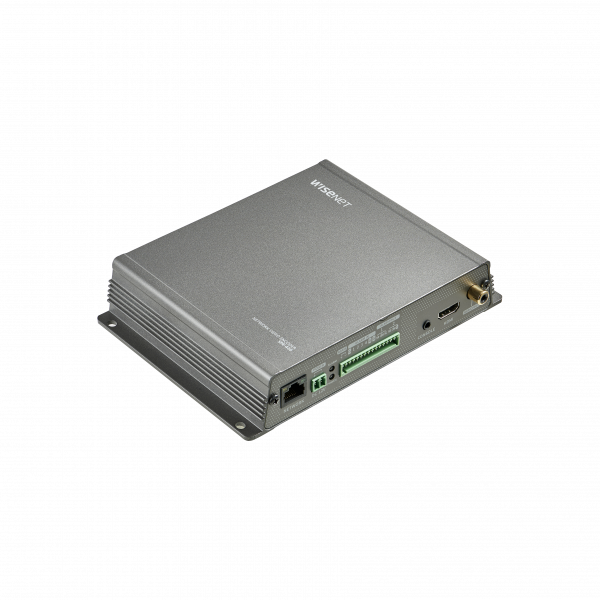

Hanwha - SPE-410 - 4 Channel Encoder
Part number:
SPE-410
Price:

Encoder, 4CH H.264/MJPEG, 30fps @ 2MP or lower and 15 fps @ 4MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD, ONVIF protocol support, HDMI output, I/O 4/2, Audio in/out 4/1, 12VDC/ PoE. Supports ECO. Stream. bandwidth reduction technology (Firmware v1.30+ only).



Features:

  • Supports AHD, CVI, TVI, & CVBS video formats
  • Motion detection, Video loss, Tampering
  • H.264, MJPEG codec support
  • ECO. Stream. bandwidth reduction technology per channel/profile (firmware v1.30+)
  • Multiple streaming (Up to 3 profiles per channel)
  • Supports ACP/Pelco-C up-the-coax & RS-485/422 PTZ control interface
  • HDMI Output
  • Alarm & Audio I/O
  SPE-410N SPE-410P
VIDEO
Input Channel 4CH BNC 1.0V pp / 75Ω composite NTSC 4CH BNC, 1.0V pp / 75Ω composite PAL
Input Signal & Resolution CVBS, AHD(2&4MP), CVI(2MP), TVI(2MP) Auto / Manual detection
Video Out 1 HDMI OUT (4 multi Image, 1920 x 1080)
OPERATIONAL
Motion Detection Off / On
Privacy Masking Off / On (4ea rectangular zones)
Alarm I/O 4 Input / 2 Output
Alarm Trigger Motion detection, Alarm input, Video loss, Tampering, Network disconnect
Alarm Events File upload via FTP, E-mail
Audio I/O 4 Line input / 1 Line output
Remote Control Interface 1ea RS-485 (Half duplex)
RS-485 Protocol SAMSUNG-T, PELCO-P/D
Coaxial Control NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax protocol)
NETWORK
Ethernet 1 RJ-45 (10/100/1000 BASE-T)
Video Compression Format H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, JPEG
Resolution 4M, 1920x1080, 1280x720, 928x480, 928x240, 704x480, 704x240, 352x240 4M, 1920x1080, 1280x720, 928x576, 928x288, 704x576, 704x288, 352x288
Max. Framerate - Main Stream
4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH
- Sub Stream
WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH
- MJPEG : 2fps @ 1920x1080, 1280x720,960H, D1
- Main Stream
4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 25fps/CH
- Sub Stream
WD1/4CIF : 12fps/CH, 2CIF/CIF/QVGA/QCIF : 25fps/CH
- MJPEG : 2fps @ 1920x1080, 1280x720,960H, D1
Video Quality Adjustment H.264 : Target bitrate level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : CBR
Streaming Capability Dual streaming (Up to 3 Profiles per channel)
Audio I/O 4 Line Input / 1 Line Output
Audio Compression Format G.711 u-law
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, ONVIF, Bonjour
Security HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 10 users at Unicast Mode
Webpage Languages English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese
Web Viewer Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
- Non-plugin WebViewer Supported Browser :
Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64bit only), Apple Safari 9 (Mac OS X only)
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API)
Central Management Software Smart viewer, SSM, Wisenet mobile viewer, NVR (Hanwha Techwin, P / X / Q series)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH
ELECTRICAL
Input Voltage / Current 12V DC, PoE(IEEE 802.3af )
Power Consumption Max. 9.6W (12V, 0.8A)
MECHANICAL
Color / Material Dark Gray / Metal
Dimensions (WxHxD) 178.0x 34.0 x127.8.0mm (7.01" x 1.34" x 5.03")
Weight 2.25kg (4.96 lb)
